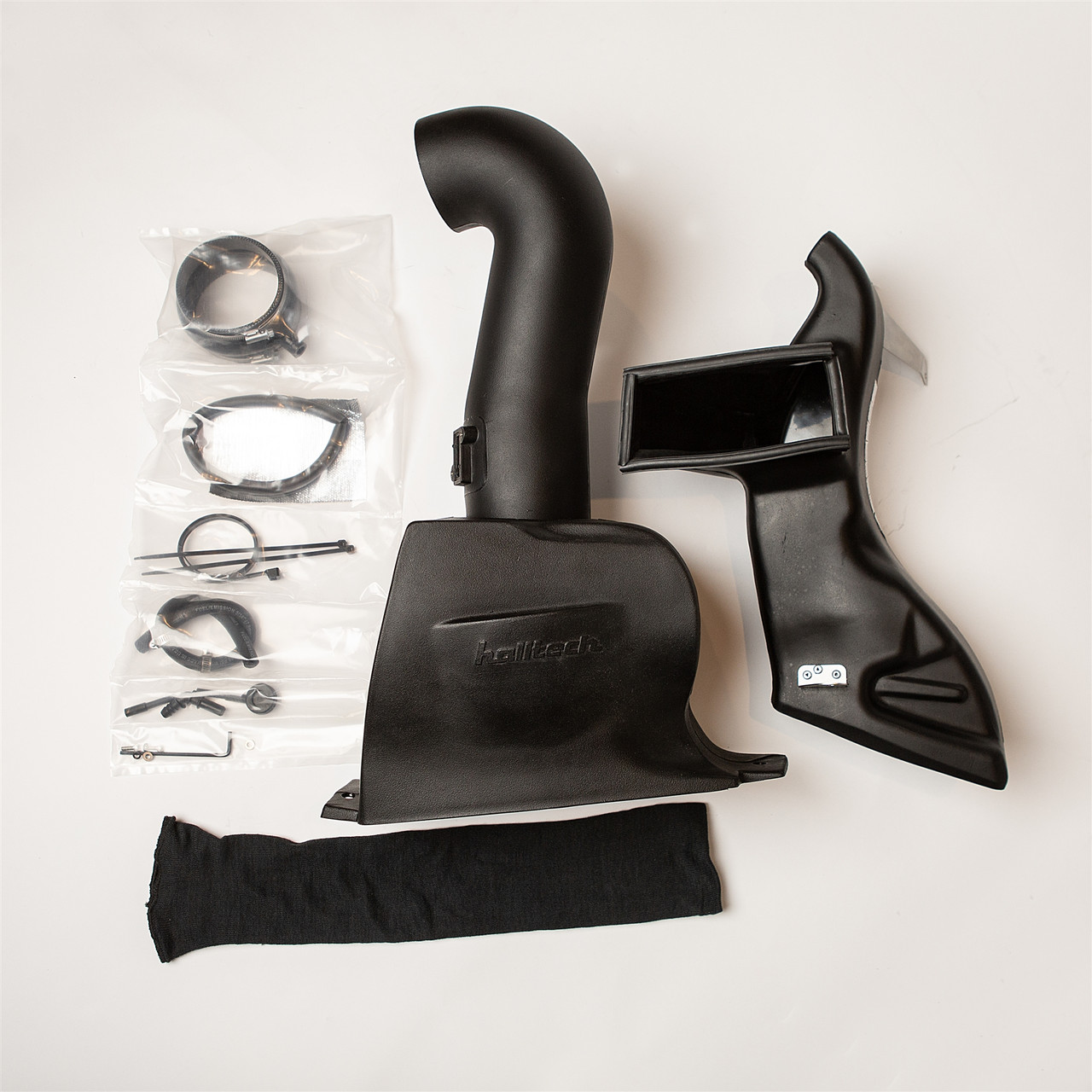

Halltech Systems Stinger-RAZ Package - S&B Gray Oiled High-Flow TRACK Filter - 112mm Throttle Body - No PCV Hole in T/B Hose (2015 - 2019 Chevrolet Corvette C7 Z06) - STRAZ
Build a serious high-flow induction path for your supercharged LT4 with the Halltech Systems Stinger-RAZ Package for the 2015-2019 Chevrolet Corvette C7 Z06. The STRAZ combines Halltech's Stinger-RZ intake system, heat-shield sleeve, and TRIC Ram Air Induction system into a comprehensive performance package. This specific configuration features the S&B Gray Oiled High-Flow TRACK Filter, is set up for a 112mm throttle body, and comes without a PCV hole in the throttle-body hose.
Halltech engineered the Stinger-RZ to reduce the airflow restriction of the factory intake, using a larger-than-stock airbox designed to promote increased airflow. The TRIC Ram Air Induction system adds a dedicated outside-air path that feeds the intake system with cold, dense air from the front of the car. Halltech reports Stinger-RZ dyno gains between 38 and 52 RWHP with no tuning, including tests showing 44 RWHP and 50 RWHP gains with stock ECM parameters. Halltech also reports a 0.41-second quarter-mile improvement and a 6 mph increase in trap speed. Actual performance will vary with vehicle configuration, calibration, fuel, atmospheric conditions, installation, and supporting modifications.
Specifications
- Manufacturer: Halltech Systems
- Part Number: STRAZ
- Product: Stinger-RAZ Package
- Vehicle: Chevrolet Corvette C7 Z06
- Model Years: 2015-2019
- Engine: 6.2L Supercharged LT4
- Intake System: Halltech Stinger-RZ
- Ram Air System: Halltech TRIC Ram Air Induction
- Filter Option: S&B Gray Oiled High-Flow TRACK Filter
- Filter Media: Oiled
- Filter Configuration: High-Flow TRACK
- Throttle Body Configuration: 112mm throttle body
- Throttle-Body Hose Configuration: No PCV hole in T/B hose
- Heat Protection: Heat-shield sleeve
- Manufacturer-Reported Stinger-RZ Dyno Gains: 38-52 RWHP with no tuning
- Manufacturer-Reported Quarter-Mile Improvement: 0.41 second
- Manufacturer-Reported Trap-Speed Improvement: 6 mph
- Manufacturer-Reported TRIC Boost Testing: 11.4 PSI at 88 mph and 12.1 PSI at 124 mph
Features
- Complete Stinger-RAZ induction package for the 2015-2019 Chevrolet Corvette C7 Z06
- S&B Gray Oiled High-Flow TRACK Filter configuration
- Configured for a 112mm throttle body
- Throttle-body hose configured without a PCV hole
- Combines the Halltech Stinger-RZ intake with TRIC Ram Air Induction
- Includes Halltech's heat-shield sleeve
- Stinger-RZ is designed to reduce airflow restriction compared with the factory intake
- Larger-than-stock airbox is designed to promote increased airflow
- TRIC provides a dedicated outside-air path to the intake system
- Halltech reports Stinger-RZ dyno gains between 38 and 52 RWHP with no tuning
- Halltech reports a 0.41-second quarter-mile improvement and 6 mph increase in trap speed
- Halltech TRIC testing recorded 11.4 PSI at 88 mph and 12.1 PSI at 124 mph
- Application-specific induction package engineered for the supercharged LT4 C7 Z06
S&B Gray Oiled High-Flow TRACK Filter
This STRAZ configuration uses the S&B Gray Oiled High-Flow TRACK Filter. Halltech identifies the Gray filter as its oiled high-flow track option, making this the track-focused filter choice in the Stinger-RAZ lineup. This version pairs that filter with the 112mm throttle-body configuration for a performance-oriented C7 Z06 induction setup.
112mm Throttle Body Configuration
This version of the STRAZ is configured for a 112mm throttle body rather than the factory throttle-body arrangement. Halltech confirms support for a 112mm throttle-body transition hose, allowing the intake system to be matched to modified LT4 combinations equipped with the larger throttle body.
No PCV Hole in T/B Hose
This specific configuration uses the throttle-body hose without a PCV hole. Because Halltech offers different PCV configurations, this version should be selected when the vehicle's installation requires the no-PCV-hole throttle-body hose setup.
Stinger-RZ with TRIC Ram Air
The Stinger-RAZ combines Halltech's Stinger-RZ intake with the TRIC Ram Air Induction system. The Stinger-RZ addresses restriction in the factory intake path, while TRIC brings a large volume of outside air into the intake area. Halltech's preliminary TRIC testing recorded 11.4 PSI of boost at 88 mph in second gear and 12.1 PSI at 124 mph in third gear.
Heat-Shield Sleeve
The Stinger-RAZ package includes Halltech's insulating heat-shield sleeve for the intake tube. The sleeve provides a thermal barrier between the intake tract and hot underhood air, complementing the outside-air delivery provided by the TRIC system.
TRIC Use Considerations
Halltech specifically warns against using the TRIC Ram Air Induction system during rain or taking the vehicle through a car wash with the ram-air duct exposed to water. Halltech also notes that the system has not been tested for road racing and advises road-racing owners to consider the effect of diverting airflow that would otherwise be directed toward the right front rotor.
Fitment
- 2015 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2016 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2017 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2018 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2019 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
FAQs
Does this STRAZ configuration have a PCV hole in the throttle-body hose?
No. This specific version uses the throttle-body hose without a PCV hole. Make sure this configuration matches the PCV arrangement required for your C7 Z06 before ordering.
What filter comes with this Stinger-RAZ configuration?
This version uses the S&B Gray Oiled High-Flow TRACK Filter. Halltech identifies it as its oiled high-flow track filter option, and this configuration pairs it with a 112mm throttle body and no-PCV-hole throttle-body hose.
Get Your Halltech Stinger-RAZ from Beefcake Racing
Upgrade your 2015-2019 C7 Corvette Z06 with the Halltech Stinger-RAZ configured with the S&B Gray Oiled High-Flow TRACK Filter, 112mm throttle body, and no PCV hole in the throttle-body hose. For fitment or ordering questions, contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
