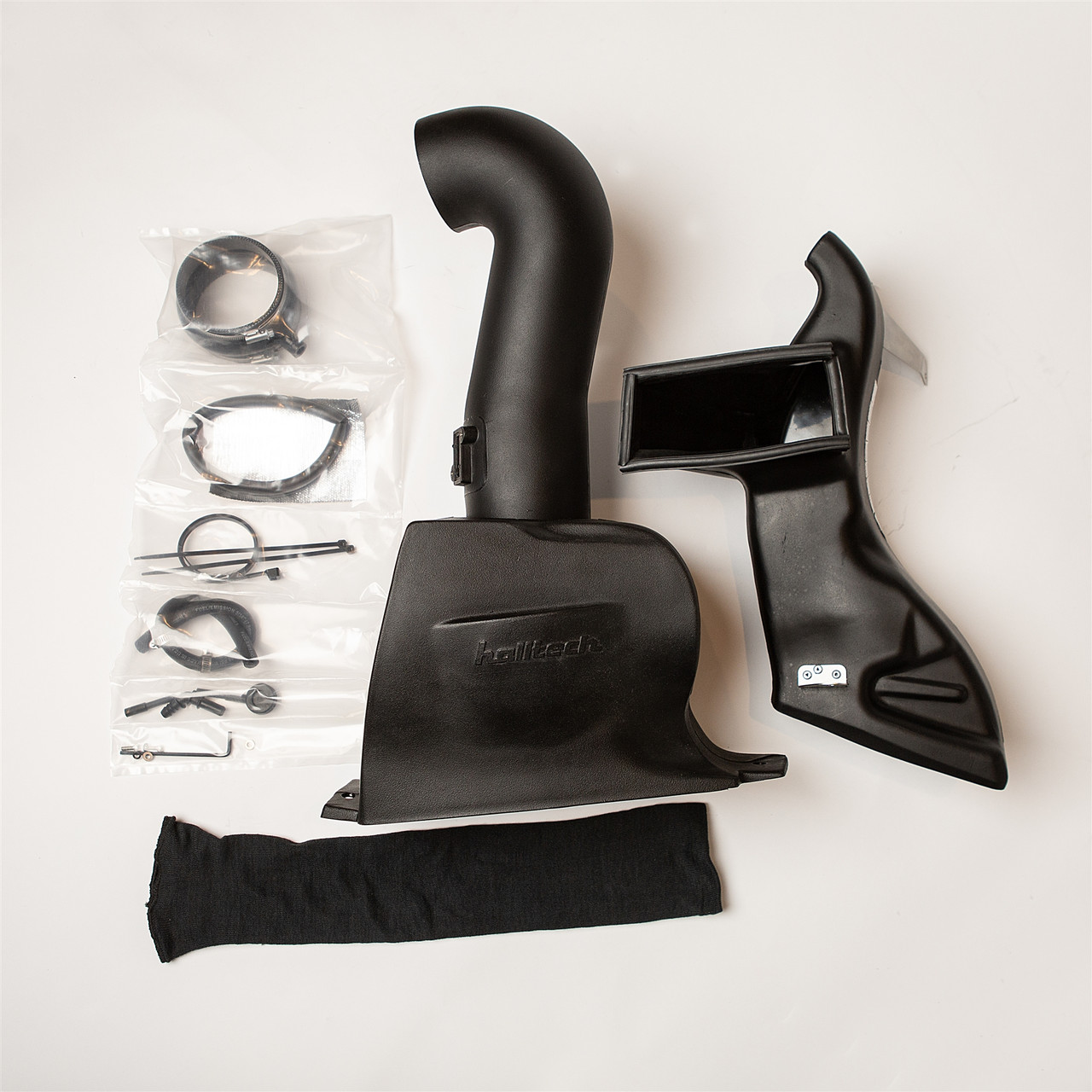

Halltech Systems Stinger-RAZ Package - S&B Red Oiled Filter - 112mm Throttle Body - PCV Hole in T/B Hose (2015 - 2019 Chevrolet Corvette C7 Z06) - STRAZ
Give your supercharged LT4 the high-flow induction path it needs with the Halltech Systems Stinger-RAZ Package for the 2015-2019 Chevrolet Corvette C7 Z06. The STRAZ combines Halltech's Stinger-RZ intake system, Kevlar heat-shield sleeve, and TRIC Ram Air Induction system into a complete performance package engineered for the C7 Z06. This specific configuration features the S&B Red Oiled Filter, is set up for a 112mm throttle body, and includes the PCV hole in the throttle-body hose.
Halltech designed the Stinger-RZ to reduce the airflow restriction of the stock intake system, while its larger-than-stock airbox is engineered to promote increased airflow. The TRIC system complements the intake by delivering outside air into the filter-box area. Halltech reports that at least 20 independent shops, including GM dealerships, have chassis-dyno tested the Stinger-RZ and recorded gains between 50 and 55 RWHP without TRIC. Halltech also publishes a 51.6 RWHP Stinger-RZ result and a combined Stinger-RZ and TRIC dyno result of 726.9 RWHP. Actual performance will vary depending on vehicle configuration, calibration, fuel, conditions, installation, and supporting modifications.
Specifications
- Manufacturer: Halltech Systems
- Part Number: STRAZ
- Product: Stinger-RAZ Package
- Vehicle: Chevrolet Corvette C7 Z06
- Model Years: 2015-2019
- Engine: 6.2L Supercharged LT4
- Intake System: Halltech Stinger-RZ
- Ram Air System: Halltech TRIC Ram Air Induction
- Filter Option: S&B Red Oiled Filter
- Filter Media: Oiled
- Throttle Body Configuration: 112mm throttle body
- Throttle-Body Hose Configuration: PCV hole in T/B hose
- Heat Protection: Kevlar heat-shield sleeve
- Manufacturer-Reported Independent Dyno Results: 50-55 RWHP for the Stinger-RZ without TRIC
- Published Stinger-RZ Dyno Gain: 51.6 RWHP
- Combined Stinger-RZ and TRIC Dyno Result: 726.9 RWHP reported by Halltech
- Manufacturer-Reported Maximum Boost: 12.1 PSI in third gear on Halltech's stock C7 Z06 test vehicle
- Installation: Professional installation highly recommended by Halltech
- California Emissions: Halltech does not have a California EO number for this induction system and states it is not legal for sale in California unless used in an off-road application such as track racing
Features
- Complete Stinger-RAZ performance induction package for the 2015-2019 Chevrolet Corvette C7 Z06
- Configured for a 112mm throttle body
- PCV hole provided in the throttle-body hose
- S&B Red Oiled Filter configuration
- Combines the Halltech Stinger-RZ intake with TRIC Ram Air Induction
- Includes Halltech's Kevlar heat-shield sleeve
- Stinger-RZ is designed to reduce factory intake restriction
- TRIC complements the intake by delivering outside air into the filter-box area
- Larger-than-stock airbox is designed to promote increased airflow
- Halltech reports independent Stinger-RZ dyno results between 50 and 55 RWHP without TRIC
- Halltech publishes a 51.6 RWHP Stinger-RZ dyno result
- Halltech reports a combined Stinger-RZ and TRIC dyno result of 726.9 RWHP
- Halltech testing recorded total boost as high as 12.1 PSI in third gear
- Application-specific induction package engineered for the supercharged LT4 C7 Z06
112mm Throttle Body Configuration
This STRAZ configuration is set up for a 112mm throttle body rather than the factory throttle-body arrangement. Halltech specifically supports a 112mm throttle-body transition hose option, allowing the Stinger-RAZ to be matched to C7 Z06 combinations using this larger throttle body. This version also includes the PCV-hole provision in the throttle-body hose.
S&B Red Oiled Filter
This version of the Stinger-RAZ uses the S&B Red Oiled Filter. Halltech offers both dry and oiled filter choices for the STRAZ package, and this configuration provides the Red oiled-media option while retaining the complete Stinger-RZ and TRIC induction architecture.
Stinger-RZ with TRIC Ram Air
The Stinger-RAZ combines Halltech's Stinger-RZ intake with the TRIC Ram Air Induction system. The Stinger-RZ is designed to reduce the airflow restriction of the factory intake, while TRIC supplements the system by delivering outside air into the filter-box area. Halltech reports total boost of 12.1 PSI in third gear during testing on its stock C7 Z06.
Kevlar Heat-Shield Sleeve
The Stinger-RAZ package includes Halltech's Kevlar heat-shield sleeve. The insulating sleeve surrounds the intake tube to provide a thermal barrier between the intake tract and hot underhood air, complementing the outside-air delivery of the TRIC Ram Air Induction system.
Installation Considerations
Halltech highly recommends professional installation. The Stinger-RAZ uses an airbox that is larger than stock to promote better airflow, and Halltech states that installation requires moving some engine-bay components and making minor modifications. Halltech also notes that the f-panel seal referenced in the older Stinger-RZ installation video is no longer required and is not included with the current kit. Follow Halltech's current installation instructions when installing the system.
Fitment
- 2015 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2016 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2017 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2018 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2019 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
FAQs
Is this Halltech STRAZ configuration for the stock C7 Z06 throttle body?
No. This specific version is configured for a 112mm throttle body and includes the PCV hole in the throttle-body hose. Owners retaining the factory throttle body should select the corresponding stock throttle-body STRAZ configuration.
What is included in this Halltech Stinger-RAZ configuration?
The STRAZ combines Halltech's Stinger-RZ intake, Kevlar heat-shield sleeve, and TRIC Ram Air Induction system. This version is configured with the S&B Red Oiled Filter, 112mm throttle-body setup, and PCV hole in the throttle-body hose.
Get Your Halltech Stinger-RAZ from Beefcake Racing
Upgrade your 2015-2019 C7 Corvette Z06 with the Halltech Stinger-RAZ configured with the S&B Red Oiled Filter, 112mm throttle body, and PCV provision in the throttle-body hose. For fitment or ordering questions, contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
