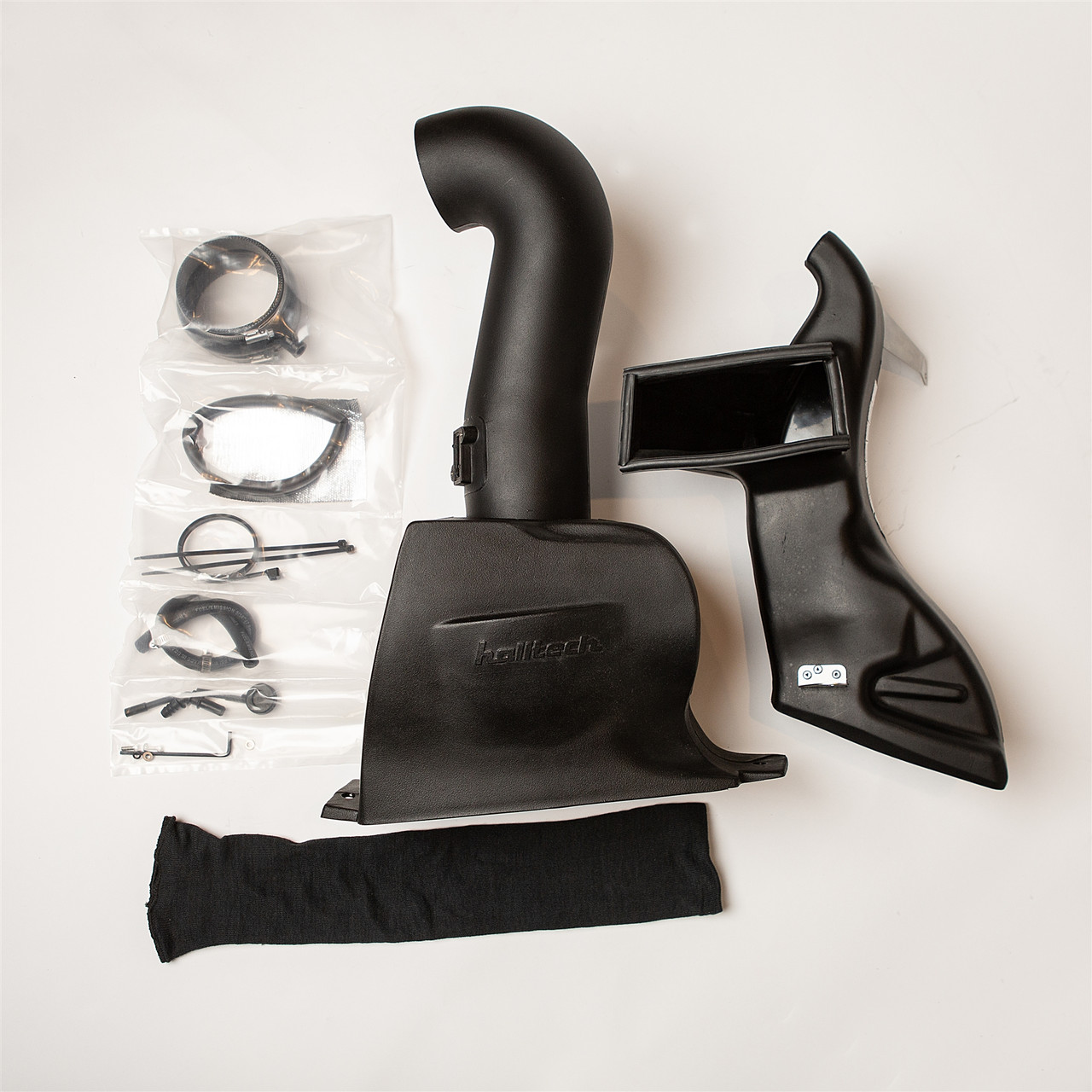

Halltech Systems Stinger-RAZ Package - TKO Attack Blue Dry Nano Filter - 112mm Throttle Body - No PCV Hole in T/B Hose (2015 - 2019 Chevrolet Corvette C7 Z06) - STRAZ
Give your supercharged LT4 a complete high-flow induction upgrade with the Halltech Systems Stinger-RAZ Package for the 2015-2019 Chevrolet Corvette C7 Z06. The STRAZ combines Halltech's Stinger-RZ intake system, heat-shield sleeve, and TRIC Ram Air Induction system into one performance-focused package. This specific configuration features the TKO Attack Blue Dry Nano Filter, is set up for a 112mm throttle body, and comes without a PCV hole in the throttle-body hose.
Halltech engineered the Stinger-RZ to reduce restriction in the factory intake path while using a larger-than-stock airbox to promote increased airflow. The included TRIC Ram Air Induction system adds a dedicated outside-air path into the induction system. For owners running a larger 112mm throttle body, this configuration matches the Stinger-RAZ hardware with Halltech's dry nano-media filter option and the no-PCV-hole throttle-body hose setup.
Specifications
- Manufacturer: Halltech Systems
- Part Number: STRAZ
- Product: Stinger-RAZ Package
- Vehicle: Chevrolet Corvette C7 Z06
- Model Years: 2015-2019
- Engine: 6.2L Supercharged LT4
- Intake System: Halltech Stinger-RZ
- Ram Air System: Halltech TRIC Ram Air Induction
- Filter Option: TKO Attack Blue Dry Nano Filter
- Filter Media: Dry nano media
- Throttle Body Configuration: 112mm throttle body
- Throttle-Body Hose Configuration: No PCV hole in T/B hose
- Heat Protection: Heat-shield sleeve
- Manufacturer-Reported TRIC Boost Testing: 11.4 PSI at 88 mph and 12.1 PSI at 124 mph
- Installation: Professional installation recommended by Halltech
- California Emissions: Halltech does not have a California EO number for this induction system and states it is not legal for sale in California unless used in an off-road application such as track racing
Features
- Complete Stinger-RAZ induction package for the 2015-2019 Chevrolet Corvette C7 Z06
- TKO Attack Blue Dry Nano Filter configuration
- Dry nano-media filter requires no filter oil
- Configured for a 112mm throttle body
- Throttle-body hose configured without a PCV hole
- Combines the Halltech Stinger-RZ intake with TRIC Ram Air Induction
- Includes Halltech's heat-shield sleeve
- Stinger-RZ is designed to reduce restriction in the factory intake path
- Larger-than-stock airbox is designed to promote increased airflow
- TRIC supplies a dedicated outside-air path to the induction system
- Halltech TRIC testing recorded 11.4 PSI at 88 mph and 12.1 PSI at 124 mph
- Application-specific induction package engineered for the supercharged LT4 C7 Z06
TKO Attack Blue Dry Nano Filter
This STRAZ configuration uses the TKO Attack Blue Dry Nano Filter, Halltech's dry nano-media filter option. It provides a non-oiled alternative while retaining the complete Stinger-RZ and TRIC induction package, making it a strong choice for C7 Z06 owners who prefer dry filter media in their performance intake setup.
112mm Throttle Body Configuration
This version of the Stinger-RAZ is configured for a 112mm throttle body rather than the factory throttle-body arrangement. Halltech supports 112mm throttle-body configurations in its C7 intake hardware, allowing the induction system to be matched to modified LT4 combinations equipped with the larger throttle body.
No PCV Hole in T/B Hose
This specific configuration uses the throttle-body hose without a PCV hole. Halltech notes that correct PCV information is critical when selecting C7 intake hardware, so this version should be ordered only when the vehicle's PCV arrangement calls for the no-PCV-hole throttle-body hose.
Stinger-RZ with TRIC Ram Air
The Stinger-RAZ combines Halltech's Stinger-RZ intake with the TRIC Ram Air Induction system. TRIC brings a large volume of outside air into the F-panel cavity rather than relying solely on the factory intake path. During Halltech's preliminary track testing, the system recorded 11.4 PSI of boost at 88 mph in second gear and 12.1 PSI at 124 mph in third gear.
Heat-Shield Sleeve
The Stinger-RAZ package includes Halltech's heat-shield sleeve for the intake tube. The insulating sleeve provides a thermal barrier around the intake tract, helping isolate it from hot underhood air while complementing the outside-air delivery of the TRIC system.
TRIC Use Considerations
Halltech specifically warns against using the TRIC Ram Air Induction system during rain or taking the vehicle through a car wash with the ram-air duct exposed to water. Halltech also notes that TRIC redirects airflow normally used for the right front rotor, an important consideration for road-racing applications.
Fitment
- 2015 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2016 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2017 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2018 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
- 2019 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with 112mm throttle body
FAQs
Does this STRAZ configuration have a PCV hole in the throttle-body hose?
No. This specific version uses the throttle-body hose without a PCV hole. Make sure the no-PCV-hole configuration matches the PCV arrangement required for your C7 Z06 before ordering.
Does the TKO Attack Blue Dry Nano Filter require filter oil?
No. The TKO Attack Blue Dry Nano Filter uses dry nano media and does not require filter oil. This version pairs it with the 112mm throttle-body and no-PCV-hole configuration of the Stinger-RAZ package.
Get Your Halltech Stinger-RAZ from Beefcake Racing
Upgrade your 2015-2019 C7 Corvette Z06 with the Halltech Stinger-RAZ configured with the TKO Attack Blue Dry Nano Filter, 112mm throttle body, and no PCV hole in the throttle-body hose. For fitment or ordering questions, contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
