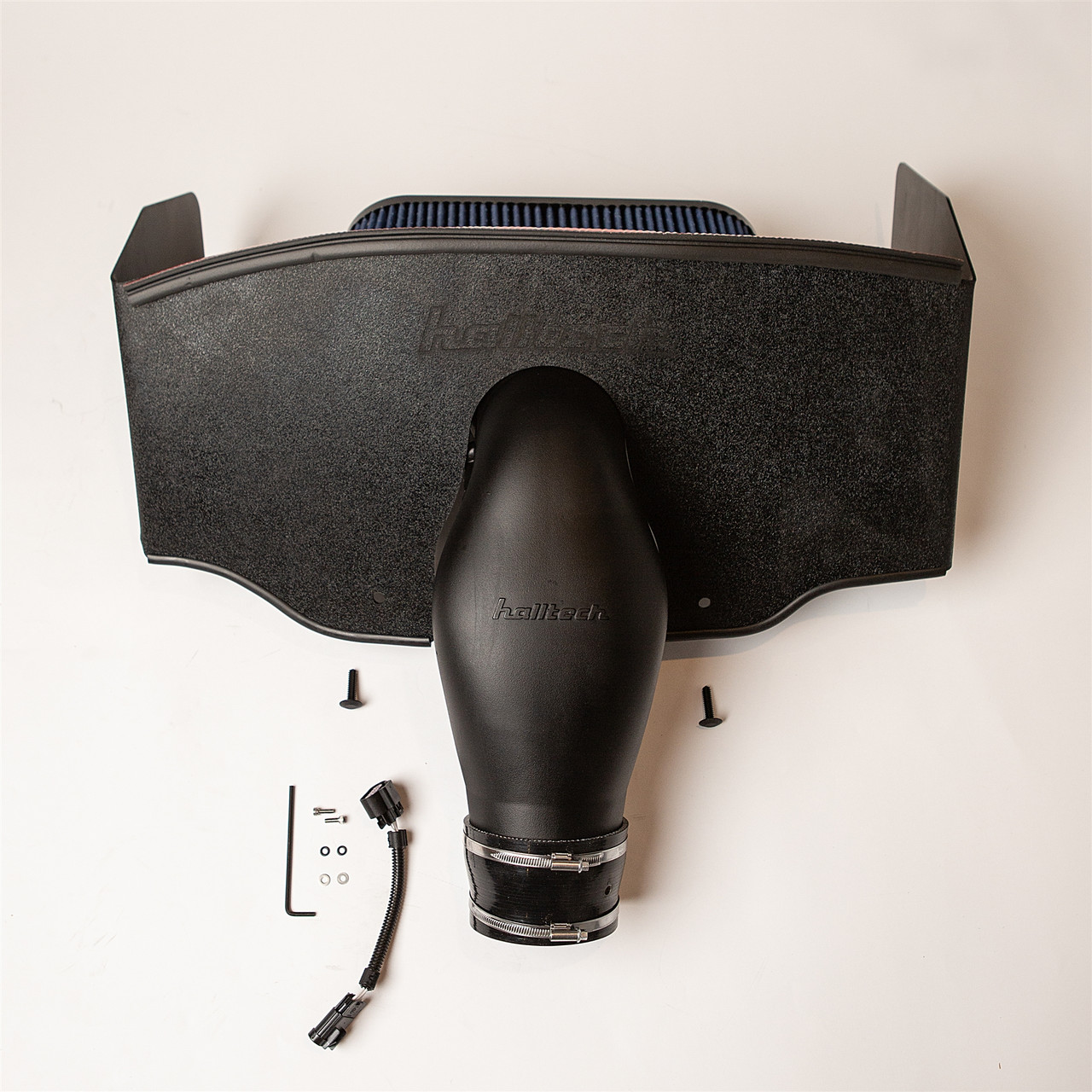

Halltech Systems Black Killer Bee MF103 Cold Air Induction - S&B Red Oiled Filter - No NOMEX Sleeve - 112mm Throttle Body - No PCV Hole in Hose (2006 - 2013 Chevrolet Corvette C6 LS7 Z06 / 2008 - 2013 Chevrolet Corvette C6 LS3) - KBMF103
Build your LS3 or LS7 C6 Corvette induction system around a larger 112 mm throttle-body configuration while retaining the proven MAF architecture of Halltech's Black Killer Bee MF103 Cold Air Induction. The KBMF103 uses a nominal 103 mm internal diameter at the MAF sensor, the same size as the stock intake at that critical measurement point, with 8,332 square mm of MAF cross-sectional area. Halltech engineered the MF103 to translate the MAF tables like stock, making the intake itself a plug-and-play design that requires no additional MAF recalibration. This configuration combines the black Killer Bee MF103 with an S&B Red Oiled Filter, 112 mm throttle-body configuration, no external NOMEX intake sleeve, and no PCV hole in the throttle-body hose.
The MF103 uses Halltech's MAF-forward architecture to deliver proper MAF translation and excellent idle quality while the included Beehive heat shield helps isolate the air filter and MAF sensor from hot engine-bay air. The S&B Red Oiled Filter provides Halltech's traditional oiled filtration option, while the 112 mm throttle-body configuration makes this version appropriate for builds using the corresponding larger throttle-body setup. Importantly, the 112 mm throttle-body connection does not turn the MF103 into an MF108 or CF112 intake. The MAF section remains the nominal 103 mm MF103 design.
Specifications
- Manufacturer: Halltech Systems
- Product: Black Killer Bee MF103 Cold Air Induction
- Part Number: KBMF103
- MAF Internal Diameter: Nominal 103 mm at the MAF sensor
- MAF Cross-Sectional Area: 8,332 square mm
- Filter: S&B Red Oiled Filter
- Filter Type: Oiled
- Throttle Body Configuration: 112 mm
- PCV Hose Configuration: No PCV hole in throttle-body hose
- External NOMEX Intake Sleeve: Not included
- Heat Shield: Halltech Beehive heat shield
- Intake Design: MAF-forward
- Tuning Requirement: No additional tuning required for the MF103 intake
- California Emissions Status: No California EO number; not legal for sale in California except for off-road applications such as track racing
Features
- Halltech Killer Bee MF103 cold air induction system for C6 Corvette LS3 and LS7 applications
- Nominal 103 mm internal diameter at the MAF sensor matches the stock intake diameter
- 8,332 square mm of MAF cross-sectional area
- Engineered to translate the MAF tables like stock without requiring additional intake tuning
- MAF-forward architecture designed for excellent idle quality and proper MAF translation
- S&B Red Oiled Filter
- Halltech Beehive heat shield helps isolate the air filter and MAF sensor from hot engine-bay air
- Configured for a 112 mm throttle body
- Retains the MF103's nominal 103 mm MAF section with the 112 mm throttle-body configuration
- No PCV hole in the throttle-body hose for this specific configuration
- No external NOMEX intake sleeve included with this configuration
- No cutting of the radiator shroud required or recommended
MF103 MAF Design with 112 mm Throttle-Body Configuration
The 112 mm designation in this configuration refers to the throttle-body setup, not the diameter of the MF103's MAF section. The Killer Bee MF103 retains its nominal 103 mm internal diameter at the MAF sensor and 8,332 square mm of MAF cross-sectional area. This distinction is important when comparing Halltech intake configurations because the MF103, MF108, and CF112 use different MAF-section dimensions and have different tuning requirements.
No Additional Intake Tuning Required
Halltech designed the Killer Bee MF103 as a plug-and-play intake requiring no additional MAF recalibration. Its nominal 103 mm internal diameter at the MAF sensor matches the stock intake diameter, allowing Halltech to engineer the MF103 to translate the MAF tables like stock. Halltech notes that proper performance tuning can produce additional horsepower and torque, but additional tuning is not required simply because the MF103 intake is installed. The tuning requirements of an individual Corvette can still depend on the complete engine and modification combination.
Important Installation Information
This specific KBMF103 is configured for a 112 mm throttle body with no PCV hole in the throttle-body hose and does not include the optional external NOMEX intake sleeve. Halltech also recommends against cutting holes in the Corvette radiator shroud to direct additional air toward the filter. According to Halltech, this modification is unnecessary and can cause lean codes and surging.
Fitment
- 2006 Chevrolet Corvette C6 Z06 7.0L LS7
- 2007 Chevrolet Corvette C6 Z06 7.0L LS7
- 2008 Chevrolet Corvette C6 Z06 7.0L LS7
- 2009 Chevrolet Corvette C6 Z06 7.0L LS7
- 2010 Chevrolet Corvette C6 Z06 7.0L LS7
- 2011 Chevrolet Corvette C6 Z06 7.0L LS7
- 2012 Chevrolet Corvette C6 Z06 7.0L LS7
- 2013 Chevrolet Corvette C6 Z06 7.0L LS7
- 2008 Chevrolet Corvette C6 6.2L LS3
- 2009 Chevrolet Corvette C6 6.2L LS3
- 2010 Chevrolet Corvette C6 6.2L LS3
- 2011 Chevrolet Corvette C6 6.2L LS3
- 2012 Chevrolet Corvette C6 6.2L LS3
- 2013 Chevrolet Corvette C6 6.2L LS3
FAQs
Does the 112 mm throttle-body configuration mean this is a 112 mm MAF intake?
No. This is still the Halltech Killer Bee MF103. The 112 mm specification refers to the throttle-body configuration, while the intake retains its nominal 103 mm internal diameter at the MAF sensor and 8,332 square mm of MAF cross-sectional area.
Does the Halltech Killer Bee MF103 KBMF103 require additional tuning?
Halltech designed the MF103 intake to require no additional MAF recalibration because its nominal 103 mm internal diameter at the MAF sensor matches the stock intake diameter. Tuning requirements for a particular Corvette can still depend on its complete engine and modification combination, including other supporting modifications.
