Halltech Systems C6 Killer Bee MF Conversion Package - TKO Attack Blue Dry Nano Filter - MF108 Black XLPE - No NOMEX Sleeve - 112mm Throttle Body - No PCV Hole in Hose (2005 - 2007 Chevrolet Corvette C6 LS2) - KBLS2CONV

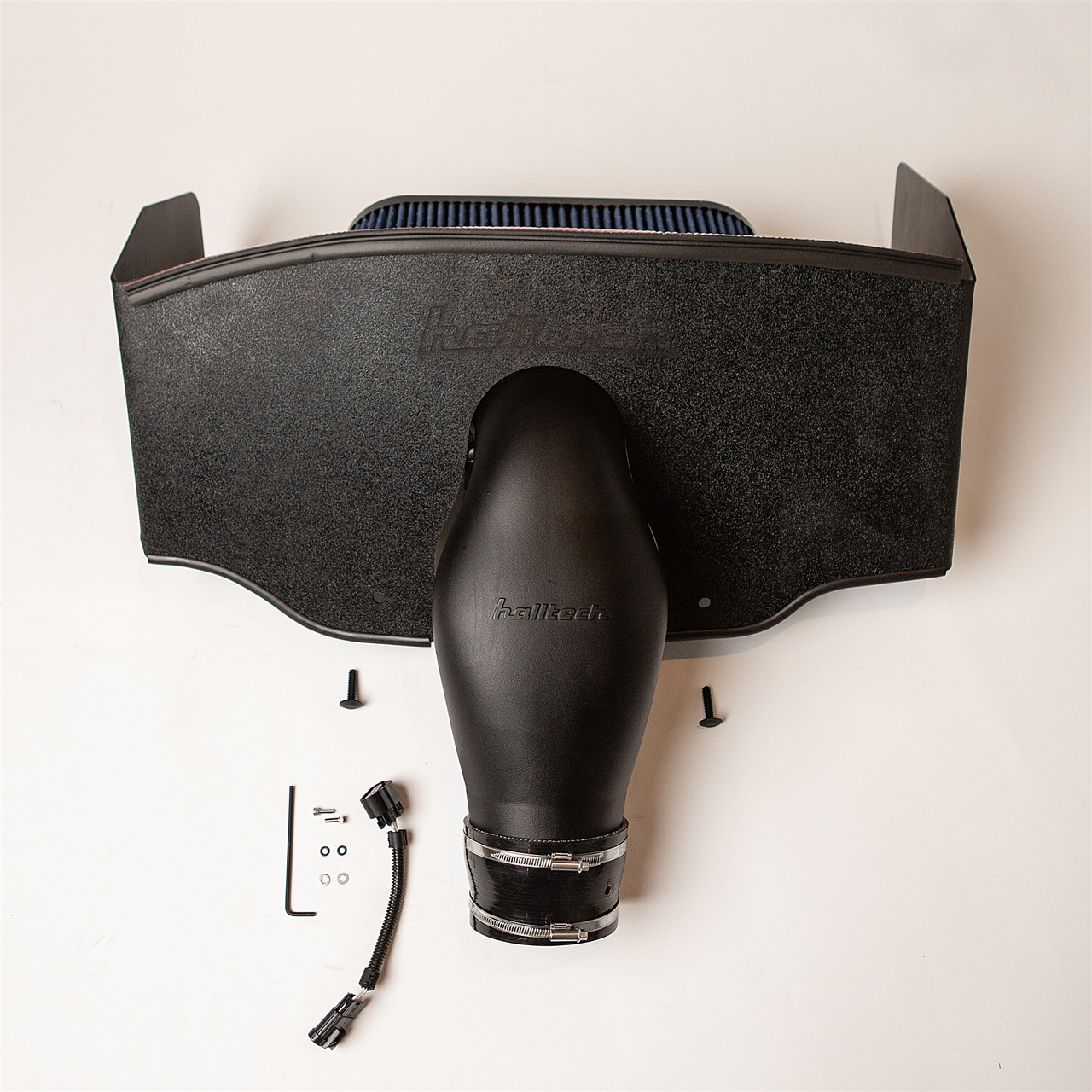

Build your 2005-2007 Chevrolet Corvette C6 LS2 induction system around increased airflow and a large 112 mm throttle-body configuration with the Halltech KBLS2CONV Killer Bee MF Conversion Package. This version combines Halltech's performance-oriented MF108 Black XLPE bridge with a TKO Attack Blue Dry Nano Filter and the 112 mm throttle-body configuration. The package also converts the LS2 to a probe-style LS3-style MAF sensor and includes Halltech's H108124 MAF adapter harness and proprietary Beehive heat shield.
The MF108 measures a nominal 108 mm at the MAF sensor, providing 9,161 square mm of cross-sectional area and approximately 10 percent more MAF area than the stock-size 103 mm configuration. The 112 mm throttle-body selection does not change the MF108's 108 mm MAF section. This combination pairs Halltech's larger MF108 bridge and 112 mm throttle-body configuration with the TKO Attack Blue Dry Nano Filter. This version is ordered without the separate external NOMEX intake-tube sleeve and without the PCV hole in the throttle-body hose.
Specifications
- Manufacturer: Halltech Systems
- Product: C6 Killer Bee MF Conversion Package
- Part Number: KBLS2CONV
- Application: 2005-2007 Chevrolet Corvette C6 LS2
- Bridge Configuration: MF108
- Bridge Material/Finish: Black XLPE
- MAF Internal Diameter: Nominal 108 mm at the MAF sensor
- MAF Cross-Sectional Area: 9,161 square mm
- MAF Area Increase: Approximately 10 percent greater than the stock-size 103 mm configuration
- Filter: TKO Attack Blue Dry Nano Filter
- Filter Type: Dry
- MAF Sensor: Probe-style LS3-style MAF sensor
- MAF Adapter Harness: Halltech H108124 Hi-Density 5-pin-to-GT adapter harness
- Throttle Body Configuration: 112 mm
- Heat Shield: Halltech proprietary Beehive heat shield
- External NOMEX Intake-Tube Sleeve: No
- PCV Hose Configuration: No PCV hole in hose
- Tuning Requirement: Required
- MAF Table Conversion: Required
- California Emissions Status: No California EO number; not legal for sale in California except for off-road applications such as track racing
Features
- Complete Halltech Killer Bee MF conversion package for 2005-2007 C6 Corvette LS2 applications
- Performance-oriented MF108 Black XLPE intake bridge
- Nominal 108 mm internal diameter at the MAF sensor
- 9,161 square mm of MAF cross-sectional area
- Approximately 10 percent more MAF area than the stock-size 103 mm configuration
- TKO Attack Blue Dry Nano Filter
- Dry filter design requires no filter oil
- 112 mm throttle-body configuration
- Converts the LS2 application to a probe-style LS3-style MAF sensor
- Includes Halltech H108124 Hi-Density 5-pin-to-GT MAF adapter harness
- Includes Halltech proprietary Beehive heat shield
- No separate external NOMEX intake-tube sleeve in this configuration
- No PCV hole in the throttle-body hose
- MF108 requires tuning due to its increased MAF cross-sectional area
- LS2 conversion requires MAF table conversion
- Halltech states stock LS7 Z06 MAF tables can be used as a starting point and may require additional adjustment
- No cutting of the radiator shroud required or recommended
MF108 Performance Bridge
The MF108 gives the Killer Bee conversion package a larger MAF cross section than Halltech's stock-size MF103 configuration. Its nominal 108 mm internal diameter at the MAF sensor provides 9,161 square mm of cross-sectional area, approximately 10 percent more than the stock-size 103 mm configuration. That additional area increases airflow capacity, but it also changes the MAF calibration requirements, making tuning necessary.
112 mm Throttle-Body Configuration
This KBLS2CONV version is configured for a 112 mm throttle body, making it an option for LS2 builds using a larger throttle-body setup. The throttle-body size and MAF bridge size describe different points in the induction system. Selecting the 112 mm throttle-body configuration does not change the MF108 bridge itself, which retains its nominal 108 mm internal diameter at the MAF sensor and 9,161 square mm MAF cross-sectional area.
LS2 Probe-Style MAF Conversion
The KBLS2CONV is more than a conventional cold air intake. Halltech designed the package to convert the 2005-2007 C6 LS2 to a later probe-style MAF arrangement. It includes a probe-style LS3-style MAF sensor and Halltech's H108124 Hi-Density 5-pin-to-GT MAF adapter harness, providing the key hardware required for the LS2 MAF conversion.
TKO Attack Blue Dry Nano Filter
This configuration uses Halltech's TKO Attack Blue Dry Nano Filter, providing a dry-filter option that does not require filter oil. It is paired here with the larger MF108 Black XLPE bridge and 112 mm throttle-body configuration for an LS2 induction package built around increased airflow capacity while retaining the straightforward maintenance of a dry filter.
MAF Table Conversion and Tuning Required
Tuning is mandatory with this configuration. The KBLS2CONV requires MAF table conversion because of the probe-style MAF conversion, while the MF108 also requires tuning because its 108 mm MAF cross section is approximately 10 percent larger than the stock-size 103 mm configuration. Halltech states that stock LS7 Z06 MAF tables can be used as a starting point to get the vehicle running, but additional calibration adjustment may be required for the individual vehicle and combination.
Halltech Beehive Heat Shield
The package includes Halltech's proprietary Beehive heat shield to help isolate the filter and MAF area from hot engine-bay air. Halltech specifically advises against cutting additional holes in the radiator shroud in an attempt to direct more air toward the filter, stating that the modification is unnecessary and can cause lean codes and surging.
Fitment
- 2005 Chevrolet Corvette C6 6.0L LS2
- 2006 Chevrolet Corvette C6 6.0L LS2
- 2007 Chevrolet Corvette C6 6.0L LS2
FAQs
Is this KBLS2CONV configured for a 112 mm throttle body?
Yes. This version is configured for a 112 mm throttle body. The throttle-body configuration does not change the MF108 bridge size, which remains a nominal 108 mm at the MAF sensor with 9,161 square mm of cross-sectional area.
Does the Halltech KBLS2CONV MF108 require tuning?
Yes. The LS2 probe-style MAF conversion requires MAF table conversion, and the MF108 requires tuning because of its larger MAF cross-sectional area. Halltech states that stock LS7 Z06 MAF tables can be used as a starting point, although additional calibration adjustments may be necessary.
