Halltech Systems CF112 Package with Carbon Fiber Intake & Beehive - S&B Red Oiled Filter - Matte Finish Carbon Fiber Beehive - Stock Throttle Body - No PCV Hole in Hose (2006 - 2013 Chevrolet Corvette C6 Z06 LS7 / 2008 - 2013 Corvette C6 LS3) - BEELINE

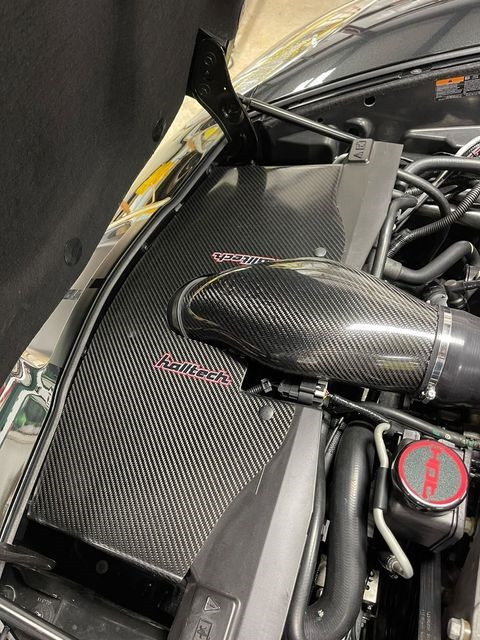

Step up to Halltech's top-end carbon fiber induction package with the BEELINE CF112 for the 2006-2013 Chevrolet Corvette C6 Z06 LS7 and 2008-2013 Corvette C6 LS3. This configuration combines Halltech's Carbon Fiber Super Bee CF112 intake with an S&B Red Oiled Filter and matching matte-finish Carbon Fiber Beehive heat shroud. It is configured for the stock throttle body with no PCV hole in the hose, giving C6 owners a purpose-built Halltech combination that pairs serious induction capacity with prepreg carbon fiber construction throughout the intake and heat-shroud assembly.
The CF112 features a 112mm internal diameter at the MAF sensor, making it approximately 10 percent larger than Halltech's MF108 at that location. Halltech builds the CF112 and matching Beehive from prepreg carbon fiber with a matte finish, creating a lightweight, competition-inspired appearance under the hood. This specific BEELINE configuration uses Halltech's S&B Red Oiled Filter option, stock throttle body connection, and a hose without a PCV hole. No cutting is required for installation, but the larger CF112 MAF diameter means proper tuning is mandatory.
Specifications
- Manufacturer: Halltech Systems
- Part Number: BEELINE
- Product: CF112 Carbon Fiber Intake and Carbon Fiber Beehive Package
- Intake: Carbon Fiber Super Bee CF112
- Intake Construction: Prepreg carbon fiber
- Intake Finish: Matte carbon fiber
- Heat Shroud: Carbon Fiber Beehive
- Heat Shroud Finish: Matte carbon fiber
- CF112 Internal Diameter at MAF Sensor: 112mm
- CF112 Size Increase: Approximately 10 percent larger than Halltech MF108 at the MAF sensor
- MAF Position: MAF Forward
- Filter: S&B Red Oiled Filter
- Filter Type: Oiled
- Throttle Body: Stock throttle body
- PCV Hole in Hose: No
- Cutting Required: No
- Tuning: Required
- Clear Coat: Not applied by Halltech
- Application: 2006-2013 Chevrolet Corvette C6 Z06 LS7
- Application: 2008-2013 Chevrolet Corvette C6 LS3
Features
- Halltech BEELINE carbon fiber induction package for compatible C6 Corvette LS3 and LS7 applications
- Carbon Fiber Super Bee CF112 intake with 112mm internal diameter at the MAF sensor
- Approximately 10 percent larger at the MAF sensor than Halltech's MF108
- Prepreg carbon fiber intake construction with a matte finish
- Matching matte-finish Carbon Fiber Beehive heat shroud
- S&B Red Oiled Filter configuration
- Configured for the stock throttle body
- Throttle body hose supplied without a PCV hole
- MAF-forward intake configuration
- No cutting required for installation
- Carbon fiber components can be professionally clear coated separately if a gloss finish is preferred
- Proper tuning is required for the CF112 induction system
CF112 Airflow and Tuning
The CF112 is Halltech's large-diameter carbon fiber induction option for compatible C6 LS3 and LS7 applications. Its 112mm internal diameter at the MAF sensor is approximately 10 percent larger than the MF108, providing additional MAF cross-sectional area for performance combinations that can take advantage of the larger induction path. This increased diameter also makes calibration an important part of the installation. Halltech requires proper tuning with the CF112 and warns that operating the system without the necessary calibration can result in unreported airflow, lean operation, and lean codes.
Prepreg Carbon Fiber Construction
The BEELINE package brings together Halltech's carbon fiber CF112 intake and matching Carbon Fiber Beehive heat shroud for a cohesive engine-bay upgrade. Both use prepreg carbon fiber construction with Halltech's matte finish. Halltech does not clear coat these components, so the matte carbon fiber appearance is intentional. Owners who prefer a gloss carbon fiber finish can arrange to have the components professionally clear coated separately.
Fitment
- 2006 Chevrolet Corvette C6 Z06 LS7
- 2007 Chevrolet Corvette C6 Z06 LS7
- 2008 Chevrolet Corvette C6 Z06 LS7
- 2008 Chevrolet Corvette C6 LS3
- 2009 Chevrolet Corvette C6 Z06 LS7
- 2009 Chevrolet Corvette C6 LS3
- 2010 Chevrolet Corvette C6 Z06 LS7
- 2010 Chevrolet Corvette C6 LS3
- 2011 Chevrolet Corvette C6 Z06 LS7
- 2011 Chevrolet Corvette C6 LS3
- 2012 Chevrolet Corvette C6 Z06 LS7
- 2012 Chevrolet Corvette C6 LS3
- 2013 Chevrolet Corvette C6 Z06 LS7
- 2013 Chevrolet Corvette C6 LS3
FAQs
Does this Halltech BEELINE CF112 configuration require tuning?
Yes. Halltech requires proper tuning for the CF112. Its 112mm internal diameter at the MAF sensor is larger than Halltech's MF108 configuration, and the calibration must account for the increased MAF diameter and airflow characteristics.
What configuration is included with this Halltech BEELINE package?
This BEELINE configuration combines Halltech's matte prepreg carbon fiber CF112 intake with an S&B Red Oiled Filter and matching matte Carbon Fiber Beehive heat shroud. It is configured for the stock throttle body and uses a throttle body hose without a PCV hole.
