Halltech Systems Halltech CF112 Package with Carbon Fiber Intake - S&B Red Oiled Filter - No Beehive - 103mm Throttle Body - No PCV Hole in Hose (2006 - 2013 Chevrolet Corvette C6 LS7 / Z06 / 2008 - 2013 Corvette LS3) - BEELINE

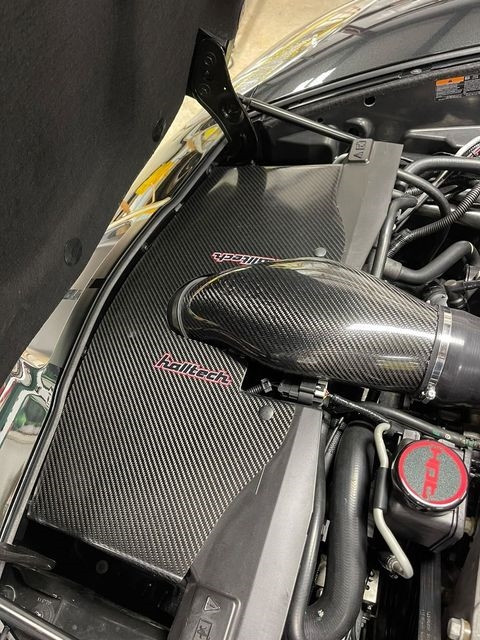

The Halltech Systems BEELINE CF112 Package gives performance-focused C6 Corvette LS7 and LS3 builds the airflow capacity of Halltech's top-end carbon fiber induction system without adding a Beehive heat shroud. This configuration combines the Carbon Fiber Super Bee CF112 intake with an S&B Red Oiled Filter and 103mm throttle body compatibility. With its MAF-forward design and massive 112mm internal diameter at the MAF sensor, the CF112 is engineered for combinations that need substantially more airflow capacity than Halltech's smaller plug-and-play intake systems can provide.
The CF112 features prepreg carbon fiber construction with Halltech's matte finish and no factory-applied clear coat. Its 112mm internal diameter at the MAF sensor is approximately 10 percent larger than Halltech's MF108, which itself is approximately 10 percent larger than the MF103. This specific BEELINE configuration is designed for a 103mm throttle body, uses a throttle-body hose without a PCV hole, and is supplied with the S&B Red Oiled Filter without a Beehive. Because of the increased MAF diameter and airflow capability of the CF112, proper tuning is mandatory. Halltech also specifies that cutting additional openings in the radiator shroud is unnecessary and not recommended.
Specifications
- Manufacturer: Halltech Systems
- Part Number: BEELINE
- Intake System: Halltech Carbon Fiber Super Bee CF112
- Intake Material: Prepreg carbon fiber
- Intake Finish: Matte finish with no factory-applied clear coat
- MAF Configuration: MAF-forward design
- Internal Diameter at MAF Sensor: 112mm
- Filter: S&B Red Oiled Filter
- Beehive: Not included
- Throttle Body Configuration: 103mm throttle body
- PCV Hole in Hose: No
- Radiator Shroud Cutting Required: No
- Tuning Required: Yes
Features
- Halltech Carbon Fiber Super Bee CF112 high-flow induction system
- 112mm internal diameter at the MAF sensor
- Approximately 10 percent larger MAF diameter than Halltech's MF108 system
- Halltech's top-end intake system for C6 LS3 and LS7 applications
- MAF-forward intake design
- Prepreg matte-finish carbon fiber intake plenum
- S&B Red Oiled Filter
- No Beehive heat shroud included with this configuration
- Configured for a 103mm throttle body
- Throttle-body hose supplied without a PCV hole
- No cutting of the radiator shroud required or recommended
- Proper tuning is mandatory for the CF112 intake system
Fitment
- 2006 Chevrolet Corvette C6 Z06 LS7
- 2007 Chevrolet Corvette C6 Z06 LS7
- 2008 Chevrolet Corvette C6 Z06 LS7
- 2009 Chevrolet Corvette C6 Z06 LS7
- 2010 Chevrolet Corvette C6 Z06 LS7
- 2011 Chevrolet Corvette C6 Z06 LS7
- 2012 Chevrolet Corvette C6 Z06 LS7
- 2013 Chevrolet Corvette C6 Z06 LS7
- 2008 Chevrolet Corvette C6 LS3
- 2009 Chevrolet Corvette C6 LS3
- 2010 Chevrolet Corvette C6 LS3
- 2011 Chevrolet Corvette C6 LS3
- 2012 Chevrolet Corvette C6 LS3
- 2013 Chevrolet Corvette C6 LS3
FAQs
Does the Halltech CF112 BEELINE require tuning?
Yes. Halltech specifies that proper tuning is mandatory with the CF112. Its 112mm internal diameter at the MAF sensor provides substantially greater airflow capacity than Halltech's smaller intake systems, requiring the vehicle to be properly calibrated for the larger MAF section.
Does this Halltech CF112 BEELINE package include a Beehive?
No. This specific BEELINE configuration does not include a Beehive. It combines the Carbon Fiber Super Bee CF112 intake with an S&B Red Oiled Filter, 103mm throttle body compatibility, and a throttle-body hose without a PCV hole.
Get Your Halltech CF112 Package from Beefcake Racing
Give your C6 Corvette LS7 or LS3 the increased airflow capacity of Halltech's CF112 carbon fiber intake with an S&B Red Oiled Filter and 103mm throttle body configuration. For help selecting the correct Halltech intake setup or supporting components for your Corvette, call Beefcake Racing at 1-855-827-7223 or email sales@beefcakeracing.com.
