Halltech Systems CF112 Package with Carbon Fiber Intake - S&B Blue Dry Filter - No Beehive - Stock Throttle Body - No PCV Hole in Hose (2006 - 2013 Chevrolet Corvette C6 Z06 LS7 / 2008 - 2013 Corvette C6 LS3) - BEELINE

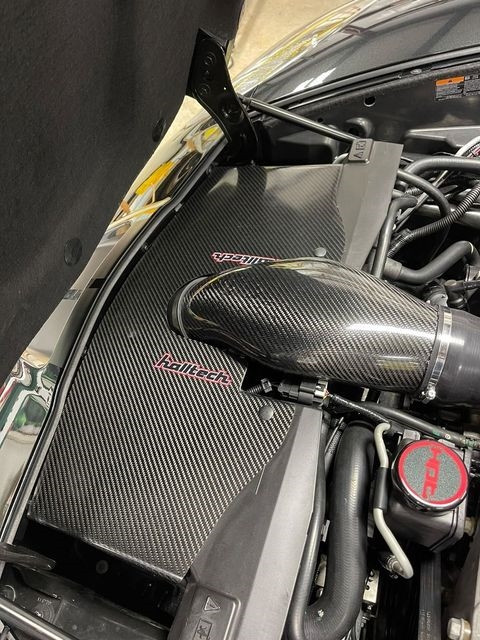

Give your C6 Corvette a serious induction upgrade with the Halltech BEELINE CF112 Carbon Fiber Intake Package. Designed for the 2006-2013 Chevrolet Corvette C6 Z06 LS7 and 2008-2013 Corvette C6 LS3, this configuration combines Halltech's large-diameter Carbon Fiber Super Bee CF112 intake with an S&B Blue Dry Filter. This version is configured for the stock throttle body with no PCV hole in the hose and does not include the Carbon Fiber Beehive, making it a focused choice for enthusiasts who want the CF112 carbon fiber intake without the matching heat shroud.
The CF112 features a nominal 112mm internal diameter at the MAF sensor with 9,852 square mm of cross-sectional area, an 18 percent increase over the stock-size configuration. Halltech constructs the CF112 from prepreg carbon fiber with a matte finish and uses a MAF-forward design. This configuration adds the S&B Blue Dry Filter for enthusiasts who prefer dry filter media rather than an oiled filter. Because of the CF112's increased MAF diameter, proper tuning is mandatory.
Specifications
- Manufacturer: Halltech Systems
- Part Number: BEELINE
- Product: CF112 Carbon Fiber Intake Package
- Intake: Carbon Fiber Super Bee CF112
- Intake Construction: Prepreg carbon fiber
- Intake Finish: Matte carbon fiber
- Beehive Heat Shroud: Not included
- CF112 Nominal Internal Diameter at MAF Sensor: 112mm
- CF112 Cross-Sectional Area at MAF Sensor: 9,852 square mm
- Cross-Sectional Area Increase: 18 percent over stock
- MAF Position: MAF Forward
- Filter: S&B Blue Dry Filter
- Filter Type: Dry
- Throttle Body: Stock throttle body
- PCV Hole in Hose: No
- Tuning: Required
- Application: 2006-2013 Chevrolet Corvette C6 Z06 LS7
- Application: 2008-2013 Chevrolet Corvette C6 LS3
Features
- Halltech Carbon Fiber Super Bee CF112 induction system for compatible C6 Corvette LS7 and LS3 applications
- Nominal 112mm internal diameter at the MAF sensor
- 9,852 square mm of cross-sectional area at the MAF sensor
- 18 percent more cross-sectional area than the stock-size configuration
- Prepreg carbon fiber intake construction
- Matte carbon fiber finish
- S&B Blue Dry Filter
- Dry filter media for owners who prefer a non-oiled filter option
- Configured for the stock throttle body
- Throttle body hose configured without a PCV hole
- MAF-forward intake configuration
- Carbon Fiber Beehive heat shroud is not included with this configuration
- Proper tuning is required for the CF112 induction system
112mm CF112 Airflow Capacity
The CF112 is built for C6 combinations that can take advantage of a larger induction path. Its nominal 112mm internal diameter provides 9,852 square mm of cross-sectional area at the MAF sensor, an 18 percent increase over the stock-size configuration. That additional area separates the CF112 from Halltech's smaller MAF configurations, but it also changes the MAF calibration requirements. Halltech states that tuning is required and warns that operating the CF112 without proper calibration can result in unreported airflow, lean operation, and lean codes.
S&B Blue Dry Filter
This configuration pairs the CF112 with Halltech's S&B Blue Dry Filter option. It gives owners who prefer dry filter media an alternative to Halltech's oiled filter choices while retaining the CF112's large 4.5 inch filter-flange configuration. Combined with the matte prepreg carbon fiber intake, it creates a performance-focused induction package without the Carbon Fiber Beehive heat shroud.
Fitment
- 2006 Chevrolet Corvette C6 Z06 LS7
- 2007 Chevrolet Corvette C6 Z06 LS7
- 2008 Chevrolet Corvette C6 Z06 LS7
- 2008 Chevrolet Corvette C6 LS3
- 2009 Chevrolet Corvette C6 Z06 LS7
- 2009 Chevrolet Corvette C6 LS3
- 2010 Chevrolet Corvette C6 Z06 LS7
- 2010 Chevrolet Corvette C6 LS3
- 2011 Chevrolet Corvette C6 Z06 LS7
- 2011 Chevrolet Corvette C6 LS3
- 2012 Chevrolet Corvette C6 Z06 LS7
- 2012 Chevrolet Corvette C6 LS3
- 2013 Chevrolet Corvette C6 Z06 LS7
- 2013 Chevrolet Corvette C6 LS3
FAQs
Does the Halltech CF112 require tuning?
Yes. Halltech requires tuning with the CF112. Its nominal 112mm internal diameter provides 9,852 square mm of cross-sectional area at the MAF sensor, an 18 percent increase over the stock-size configuration. Proper calibration is required to account for the larger MAF diameter.
What is included in this BEELINE CF112 configuration?
This configuration uses Halltech's matte prepreg carbon fiber CF112 intake with an S&B Blue Dry Filter, stock throttle body connection, and a throttle body hose without a PCV hole. The Carbon Fiber Beehive heat shroud is not included with this configuration.
Why Buy Halltech Systems From Beefcake Racing?
Beefcake Racing is your source for Halltech Systems Corvette performance parts, backed by knowledgeable support to help you choose the right induction components for your combination. With the CF112, selecting the correct engine application, filter, throttle body connection, PCV configuration, and tuning strategy matters. Questions about this Halltech BEELINE CF112 configuration or your C6 Corvette setup? Email sales@beefcakeracing.com or call 1-855-827-7223.
