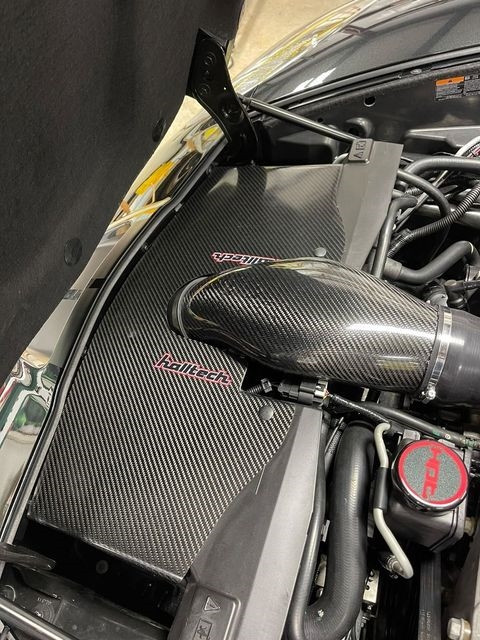

Halltech Systems CF112 Package with Carbon Fiber Intake & Beehive - S&B Blue Dry Filter - ABS Plastic Beehive - 112mm Throttle Body - PCV Hole in Hose (2006 - 2013 Chevrolet Corvette C6 LS7 / Z06 / 2008 - 2013 Corvette LS3) - BEELINE
The Halltech Systems BEELINE CF112 Package brings Halltech's top-end carbon fiber induction system to performance-focused C6 Corvette LS7 and LS3 builds. This configuration pairs the CF112 with an S&B Blue Dry Filter, ABS Plastic Beehive, 112mm throttle body compatibility, and a throttle-body hose with a PCV hole. At the heart of the system is Halltech's MAF-forward CF112 intake with a massive 112mm internal diameter at the MAF sensor, giving serious C6 combinations a large-capacity induction path while the ABS Plastic Beehive provides Halltech's dedicated heat shroud.
The CF112 is constructed from prepreg carbon fiber and supplied in Halltech's matte finish with no factory-applied clear coat. Its 112mm internal diameter at the MAF sensor is approximately 10 percent larger than Halltech's MF108, while the MF108 is approximately 10 percent larger than the plug-and-play MF103. This specific BEELINE configuration combines the carbon fiber CF112 with an S&B Blue Dry Filter, ABS Plastic Beehive, 112mm throttle body compatibility, and a PCV hole in the throttle-body hose. The dry filter gives enthusiasts a no-oil filtration option. Proper tuning is mandatory for the CF112, and Halltech specifies that additional openings should not be cut in the radiator shroud because they are unnecessary and can cause lean codes and surging.
Specifications
- Manufacturer: Halltech Systems
- Part Number: BEELINE
- Intake System: Halltech Carbon Fiber Super Bee CF112
- Intake Material: Prepreg carbon fiber
- Intake Finish: Matte finish with no factory-applied clear coat
- MAF Configuration: MAF-forward design
- Internal Diameter at MAF Sensor: 112mm
- Filter: S&B Blue Dry Filter
- Filter Type: Dry
- Beehive: ABS Plastic Beehive
- Beehive Material: ABS plastic
- Throttle Body Configuration: 112mm throttle body
- PCV Hole in Hose: Yes
- Radiator Shroud Cutting Required: No
- Tuning Required: Yes
Features
- Halltech Carbon Fiber Super Bee CF112 high-flow induction system
- 112mm internal diameter at the MAF sensor
- Approximately 10 percent larger MAF diameter than Halltech's MF108 system
- Halltech's top-end intake system for C6 LS3 and LS7 applications
- MAF-forward intake design
- Prepreg carbon fiber intake construction
- Matte finish with no factory-applied clear coat
- S&B Blue Dry Filter
- Dry filter option requires no filter oil
- ABS Plastic Beehive heat shroud
- Configured for a 112mm throttle body
- Throttle-body hose supplied with a PCV hole
- No additional cutting of the radiator shroud required or recommended
- Proper tuning is mandatory for the CF112 intake system
Fitment
- 2006 Chevrolet Corvette C6 Z06 LS7
- 2007 Chevrolet Corvette C6 Z06 LS7
- 2008 Chevrolet Corvette C6 Z06 LS7
- 2009 Chevrolet Corvette C6 Z06 LS7
- 2010 Chevrolet Corvette C6 Z06 LS7
- 2011 Chevrolet Corvette C6 Z06 LS7
- 2012 Chevrolet Corvette C6 Z06 LS7
- 2013 Chevrolet Corvette C6 Z06 LS7
- 2008 Chevrolet Corvette C6 LS3
- 2009 Chevrolet Corvette C6 LS3
- 2010 Chevrolet Corvette C6 LS3
- 2011 Chevrolet Corvette C6 LS3
- 2012 Chevrolet Corvette C6 LS3
- 2013 Chevrolet Corvette C6 LS3
FAQs
Does the Halltech CF112 BEELINE require tuning?
Yes. Halltech specifies that proper tuning is mandatory for the CF112. Its 112mm internal diameter at the MAF sensor is approximately 10 percent larger than Halltech's MF108, so proper calibration is required for the larger MAF section and airflow capacity.
What is included in this Halltech CF112 BEELINE configuration?
This configuration combines the Carbon Fiber Super Bee CF112 intake with an S&B Blue Dry Filter, ABS Plastic Beehive, 112mm throttle body compatibility, and a throttle-body hose with a PCV hole.
Get Your Halltech CF112 Package from Beefcake Racing
Step up your C6 Corvette LS7 or LS3 induction system with Halltech's CF112 carbon fiber intake, S&B Blue Dry Filter, ABS Plastic Beehive, 112mm throttle body configuration, and PCV-ready hose. For help selecting the correct Halltech intake configuration or supporting components for your Corvette, call Beefcake Racing at 1-855-827-7223 or email sales@beefcakeracing.com.
