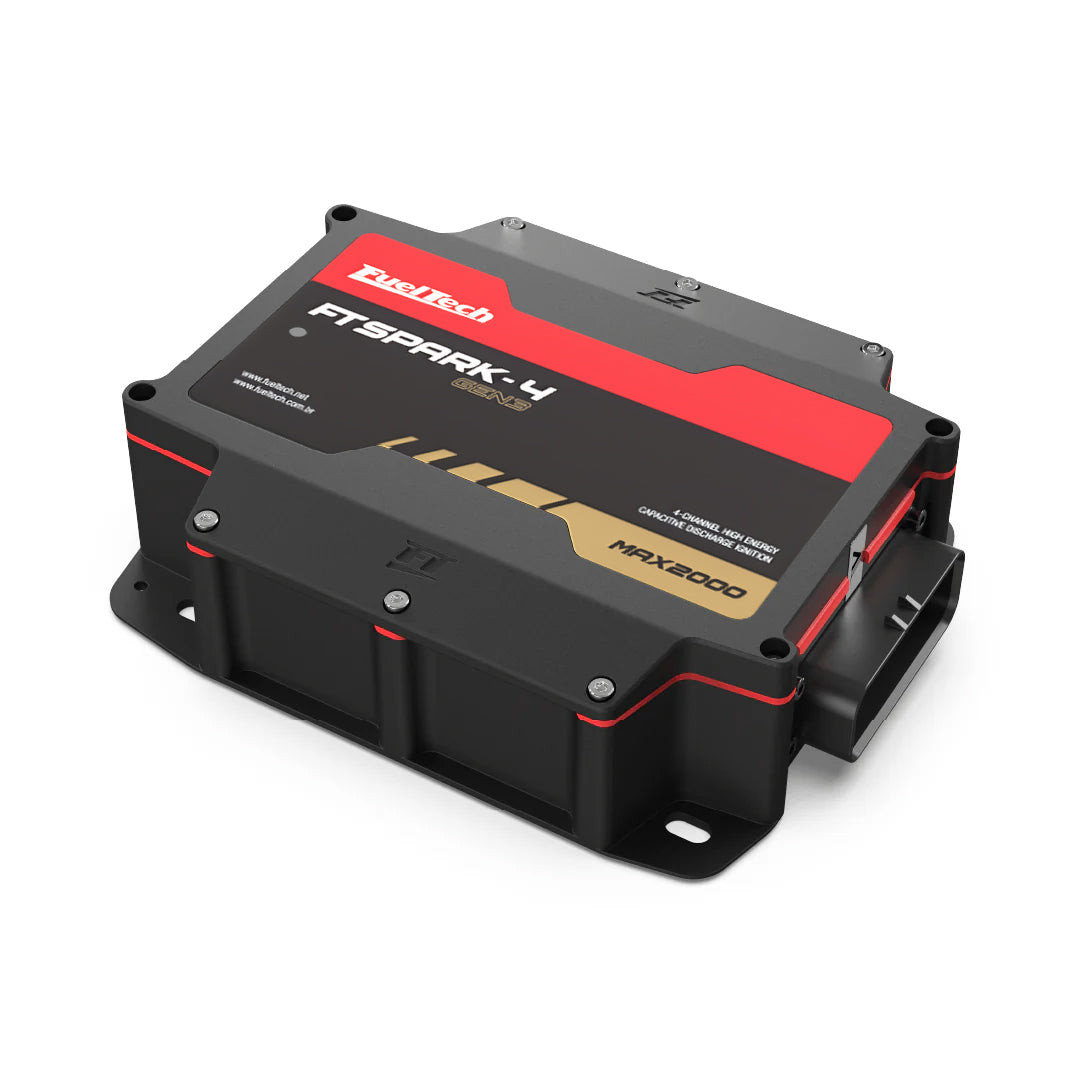

FuelTech FTSPARK-4 GEN3 MAX2000 CDI Ignition System (5022016841)

Take ignition performance to the highest level with the FuelTech FTSPARK-4 GEN3 MAX2000, the most powerful CDI ignition system ever developed by FuelTech. Engineered for extreme motorsport applications, this system delivers unmatched spark energy, precision control, and reliability for high-performance engines operating under the most demanding conditions.

Designed for high boost, high compression, and alternative fuel applications including alcohol and nitromethane, the GEN3 MAX2000 ensures stable combustion where conventional ignition systems fall short. Whether you're building a drag car, rotary setup, or high-performance race engine, this system provides the ignition strength needed for consistent power.

Features

• Up to 2000mJ ignition energy per channel for extreme spark intensity
• 475-500V primary coil voltage to prevent misfires under high load
• Up to 175A primary coil current with FuelTech Racing CDI coils
• Extended spark duration for improved combustion stability
• Programmable multispark mode for difficult-to-ignite fuel mixtures
• Supports high boost, high compression, alcohol, and nitromethane setups
• Programmable ignition energy control via CAN or dedicated input
• Advanced CAN bus integration with FuelTech ECUs
• Real-time per-channel diagnostics and monitoring
• Single-wire multiplexed trigger input for simplified wiring
• Compatible with a wide range of motorsport ECUs
• 4 independent ignition channels for flexible engine configurations

Additional Notes

• Ideal for 4-cylinder engines and compact high-performance builds
• Supports multi-cylinder and rotary applications (multiple units may be required)
• Die-cast aluminum enclosure with IP67 rating for water and dust protection
• Reinforced internal construction for vibration and impact resistance
• High-quality automotive-grade connectors for secure electrical connections
• Advanced thermal design for improved heat dissipation and extended duty cycles
• Direct drop-in upgrade for FTSPARK GEN2 systems with identical pinout and mounting points

Fitment

- Universal motorsport application
- Ideal for 4-cylinder engines
- Compatible with multi-cylinder and rotary engines (additional modules required for higher cylinder counts)
