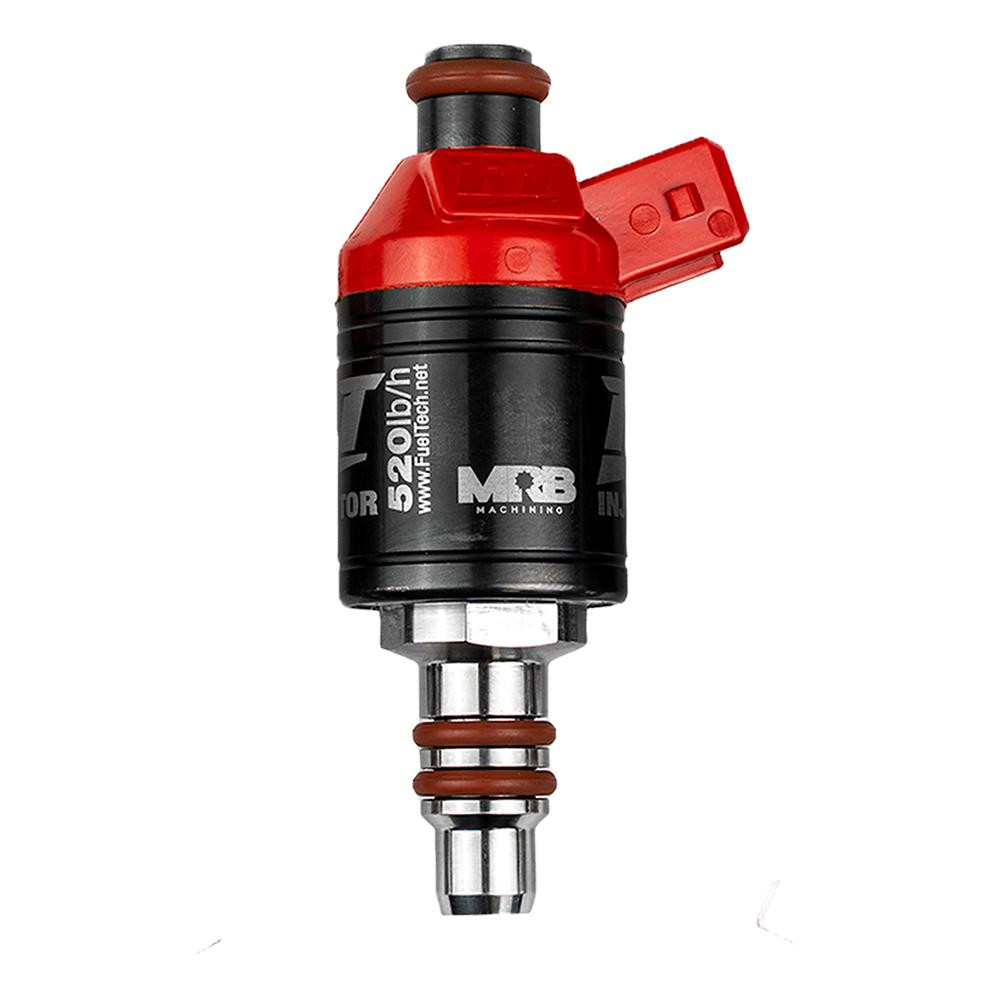

FuelTech Low Impedance Fuel Injector 520 LB/H with O-Ring / -4AN Fitting - 5010108245
Ultra High Flow Injector for Extreme Fuel Demand
The FuelTech 520 lb/hr Low Impedance Fuel Injector is built for extreme horsepower applications where maximum fuel delivery, fast response, and precise control are critical. Delivering 3,822 cc/min at 43.5 psi, this injector is ideal for high boost, nitrous, and full race builds pushing serious power levels.
This injector features a low impedance 1.5 Ohm design and requires a Peak and Hold driver, such as the FuelTech 8A/2A or Peak and Hold PRO Injector Driver. This setup ensures rapid response and accurate fuel delivery under extreme conditions.
Proven in 4,000+ Horsepower Applications
Tested and validated in engines producing over 4,000 horsepower, this injector delivers the fuel volume required for extreme builds while allowing you to reduce injector count, connections, and fuel system complexity.
- Tested and approved for 4,000+ horsepower engines
- Supports reduced injector count and simplified fuel systems
- Minimizes hoses and connections in high-output builds
- Ideal for drag racing and high boost applications
Compatible with All Fuels and Built for Durability
Designed for harsh fuel environments, this injector features corrosion-resistant internal components validated through salinization testing. Combined with EV1 connectors and silver-plated terminals, it ensures reliable electrical performance across all fuel types.
- Compatible with gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE, and ETBE
- Silver-plated terminals for superior conductivity
- Corrosion-resistant internals for extended lifespan
- Built for extreme racing environments
Optimized for ECU Integration and Output Efficiency
This injector is compatible with any ECU when paired with the proper Peak and Hold driver. Its high flow capacity allows you to maximize ECU outputs by reducing the number of injectors required in high horsepower builds.
- Requires 8A/2A Peak and Hold or PRO Injector Driver
- Compatible with any ECU on the market
- Helps optimize ECU output usage
- Supports advanced tuning strategies
Features
- 520 lb/hr (3,822 cc/min @ 43.5 psi) ultra high flow fuel injector
- Low impedance 1.5 Ohm design
- Requires Peak and Hold driver for operation
- EV1 connector with silver-plated terminals
- Flow tested and calibrated for accuracy and repeatability
- Corrosion-resistant internal components
- Compatible with all fuel types including ethanol and nitromethane
- Tested in 4,000+ horsepower applications
- Reduces injector count and system complexity
- Engineered for durability and long-term performance
Quick Specs
- Brand: FuelTech
- Flow Rate: 520 lb/hr (3,822 cc/min @ 43.5 psi)
- Impedance: Low Impedance (1.5 Ohms)
- Connector Type: EV1
- Voltage Limit: Up to 24V
- Driver Requirement: Peak and Hold Driver Required (8A/2A or PRO)
- Fuel Compatibility: Gasoline, Ethanol, Alcohol, Nitromethane, Nitropropane, MTBE, ETBE
- Injector Dimensions: 86 x 32 mm
- Packing Dimensions: 223 x 162 x 60 mm
- Shipping Dimensions: 225 x 250 x 65 mm
- Weight: 160g
- Fitting: O-Ring / -4AN
- Quantity: Single Injector
- Warranty: 90 Days
- Part Number: 5010108245
Whats Included
- 1 FuelTech 520 lb/hr Fuel Injector
- 1 Instruction Manual
FAQs
Do I need a peak and hold driver for this injector?
Yes. This is a low impedance injector (1.5 Ohms) and requires a Peak and Hold driver such as the FuelTech 8A/2A or PRO Injector Driver.
Is this injector compatible with E85 and race fuels?
Yes. It is fully compatible with gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE, and ETBE, making it ideal for extreme performance builds.
