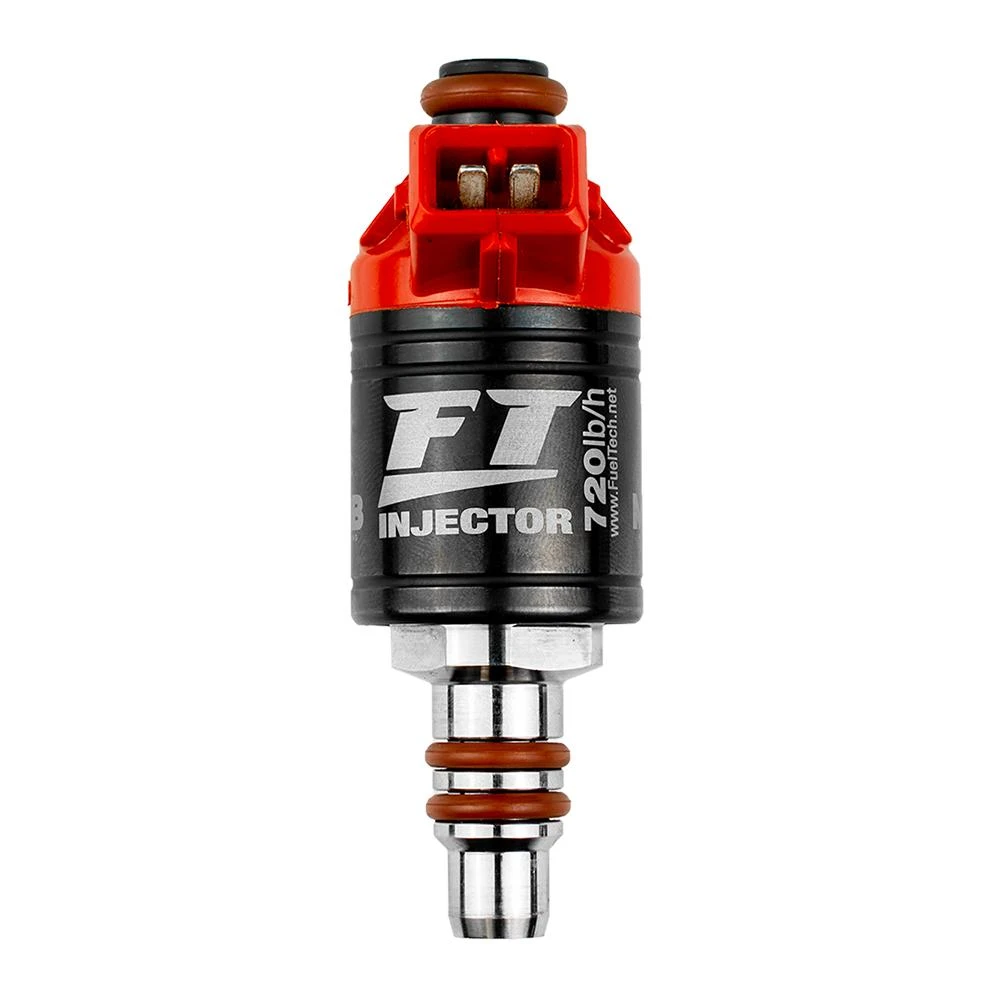

FuelTech 720 lb/hr Low Impedance Fuel Injector O-Ring/-4AN - 5010108235
High-Flow Fuel Delivery for Extreme Performance Builds
The FuelTech 720 lb/hr Low Impedance Fuel Injector is engineered for serious horsepower applications where fuel volume and precision are critical. Delivering 5,449 cc/min at 43.5 psi, this injector is capable of supporting demanding combinations producing 4,000+ horsepower.
Featuring a hybrid O-Ring inlet with -4AN outlet, this injector provides flexibility for custom fuel system layouts while helping reduce the number of injectors, fittings, and hoses required. It is an excellent choice for high-performance EFI systems where clean plumbing and maximum flow are priorities.
Precision Calibrated for Accurate Fueling
Each injector is individually tested and calibrated to ensure linearity, repeatability, and consistent cylinder-to-cylinder fuel delivery. This level of accuracy is critical for maintaining proper air-fuel ratios under high boost, nitrous, or extreme load conditions.
- Individually flow tested for consistent performance
- Supports precise tuning and stable air-fuel ratios
- Improves engine efficiency and reliability
- Ideal for motorsports and high-performance EFI applications
Compatible with All Fuels and ECUs
This injector is fully compatible with any standalone or aftermarket ECU, offering maximum flexibility for custom builds. It supports a wide range of fuels, including gasoline, ethanol, methanol, nitromethane, nitropropane, MTBE, and ETBE.
- Works with any ECU on the market
- Compatible with all major racing and pump fuels
- Reliable performance in high boost and nitro applications
Durable Construction for Harsh Environments
Built with corrosion-resistant internal components and validated through salinization testing, this injector is designed to withstand aggressive fuels and demanding racing conditions.
- Corrosion-resistant internal construction
- Proven durability in extreme environments
- Designed for long-term reliability
Important Installation Requirements
This injector features a low impedance (1.5 Ohms) design and requires a Peak and Hold driver, such as FuelTechs 8A/2A or Peak & Hold PRO Injector Driver, for proper operation and longevity.
Features
- 720 lb/hr (5,449 cc/min @ 43.5 psi) high-flow injector
- Low impedance design - 1.5 Ohms
- O-Ring inlet with -4AN outlet fitting
- EV1 connector with silver-plated terminals
- Individually tested and calibrated for accuracy
- Compatible with gasoline, ethanol, methanol, and nitro-based fuels
- Tested and approved in 4,000+ horsepower applications
- Corrosion-resistant internal components
- Compatible with all aftermarket ECUs
- FuelTech warranty and support
Quick Specs
- Brand: FuelTech
- Flow Rate: 720 lb/hr (5,449 cc/min @ 43.5 psi)
- Impedance: Low - 1.5 Ohms
- Voltage Limit: Up to 24V
- Fitting Type: O-Ring / -4AN
- Connector Type: EV1 (silver-plated terminals)
- Injector Dimensions: 86 x 32 mm
- Weight: 160g
- Package Dimensions: 223 x 162 x 60 mm
- Shipping Dimensions: 225 x 250 x 65 mm
- Included: 1 injector, manual
- Warranty: 90 days
- Part Number: 5010108235
FAQs
Do I need a Peak and Hold driver for this injector?
Yes. This injector operates at 1.5 Ohms and requires a Peak and Hold driver such as FuelTechs 8A/2A or PRO Injector Driver.
What makes this injector different from standard O-ring injectors?
The O-Ring to -4AN configuration allows for more flexible fuel system routing and can help simplify plumbing in high-performance and custom EFI builds.
