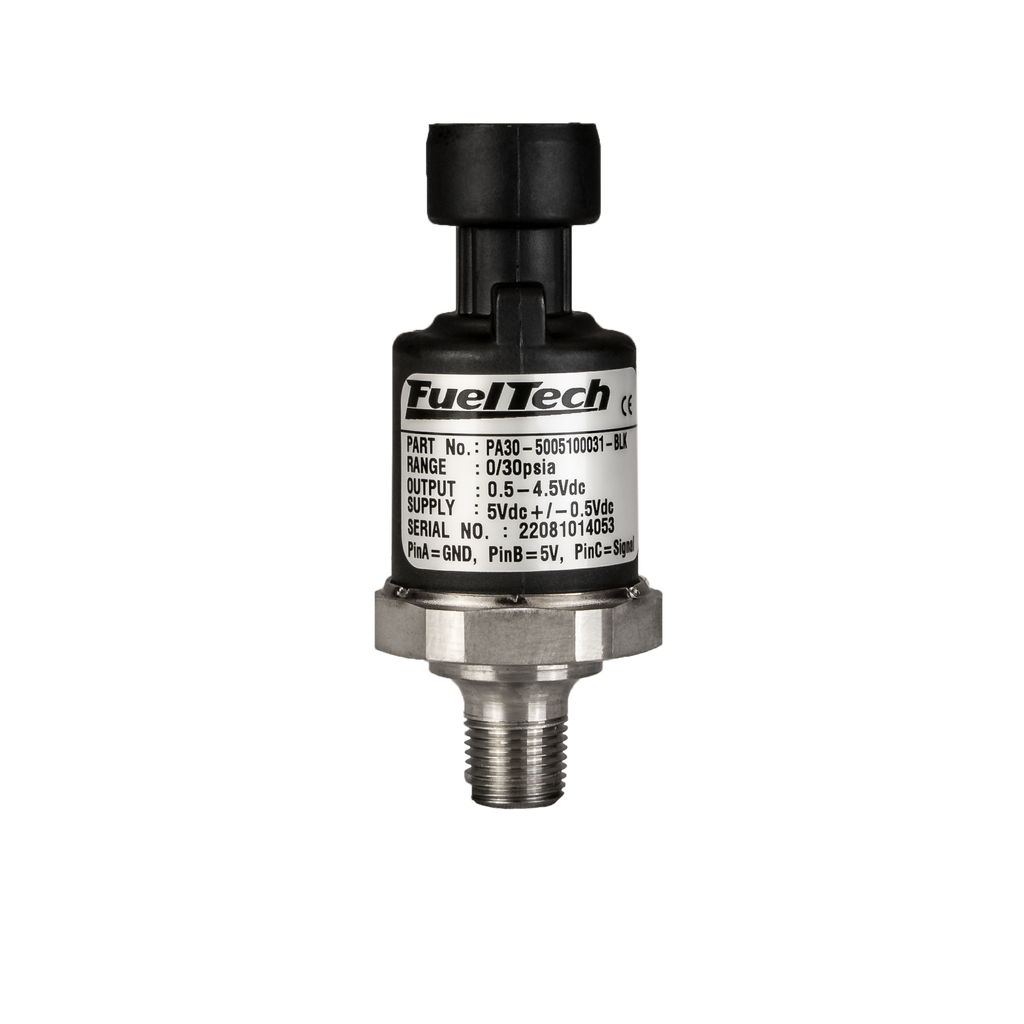

FuelTech Pan Vacuum Sensor - 5005100031
Accurate Crankcase Vacuum Monitoring for Engine Health and Performance
The FuelTech Pan Vacuum Sensor is designed to provide precise crankcase pressure and vacuum readings, helping you monitor engine health and performance in real time. By tracking pan vacuum levels, this sensor allows you to verify that piston rings are sealing properly, ensuring optimal combustion efficiency and engine reliability.
Whether you're running a high-performance street car or a dedicated race build, accurate crankcase data is essential for diagnosing issues, improving efficiency, and protecting your engine.
Critical Data for Engine Sealing and Performance Optimization
Maintaining proper crankcase vacuum is key to maximizing power and preventing blow-by. This sensor provides the data needed to fine-tune your setup and ensure everything is operating as it should.
- Monitors crankcase vacuum and pressure levels
- Helps verify proper piston ring seal
- Assists in diagnosing blow-by and sealing issues
- Supports performance tuning and engine health monitoring
Stable Signal Output for ECU Integration and Data Logging
The sensor features a 0.5-4.5V linear analog output, making it fully compatible with FuelTech ECUs and most aftermarket standalone engine management systems. This ensures accurate data logging and reliable input for tuning and diagnostics.
- Consistent signal for precise ECU input
- Supports advanced data acquisition and analysis
- Enables real-time monitoring of crankcase conditions
- Helps prevent engine damage through early detection
Wide Measurement Range for Vacuum and Pressure Monitoring
With a measurement range of -15 psi to +15 psi (0-30 psi absolute), this sensor is designed specifically for crankcase applications where both vacuum and slight pressure conditions must be accurately measured.
- Measures both vacuum and positive pressure
- Ideal for crankcase and pan vacuum monitoring
- Accurate readings across full operating range
- Suitable for high-performance and racing engines
Features
- Designed for crankcase and pan vacuum monitoring
- Measurement range: -15 psi to +15 psi (0-30 psi absolute)
- 0.5-4.5V linear analog output
- Compatible with FuelTech and aftermarket ECUs
- Helps verify piston ring sealing and engine efficiency
- Supports engine diagnostics and performance tuning
- 1/8 inch NPT thread for easy installation
Quick Specs
- Brand: FuelTech
- Product Type: Pan Vacuum Sensor
- Pressure Range: -15 psi to +15 psi (0-30 psi absolute)
- Output Signal: 0.5-4.5V
- Supply Voltage: 5V
- Thread Size: 1/8 inch NPT
- Applications: Crankcase and pan vacuum monitoring
- Connector Pinout: A - Ground / B - 5V / C - Signal
- Part Number: 5005100031
FAQs
What does a pan vacuum sensor measure?
It measures crankcase pressure and vacuum, helping you monitor piston ring seal and overall engine condition.
Why is crankcase vacuum important?
Proper crankcase vacuum improves ring sealing, reduces blow-by, and increases engine efficiency, especially in high-performance applications.
