FuelTech Staging / Brake Control Solid State Relay - 3020004086

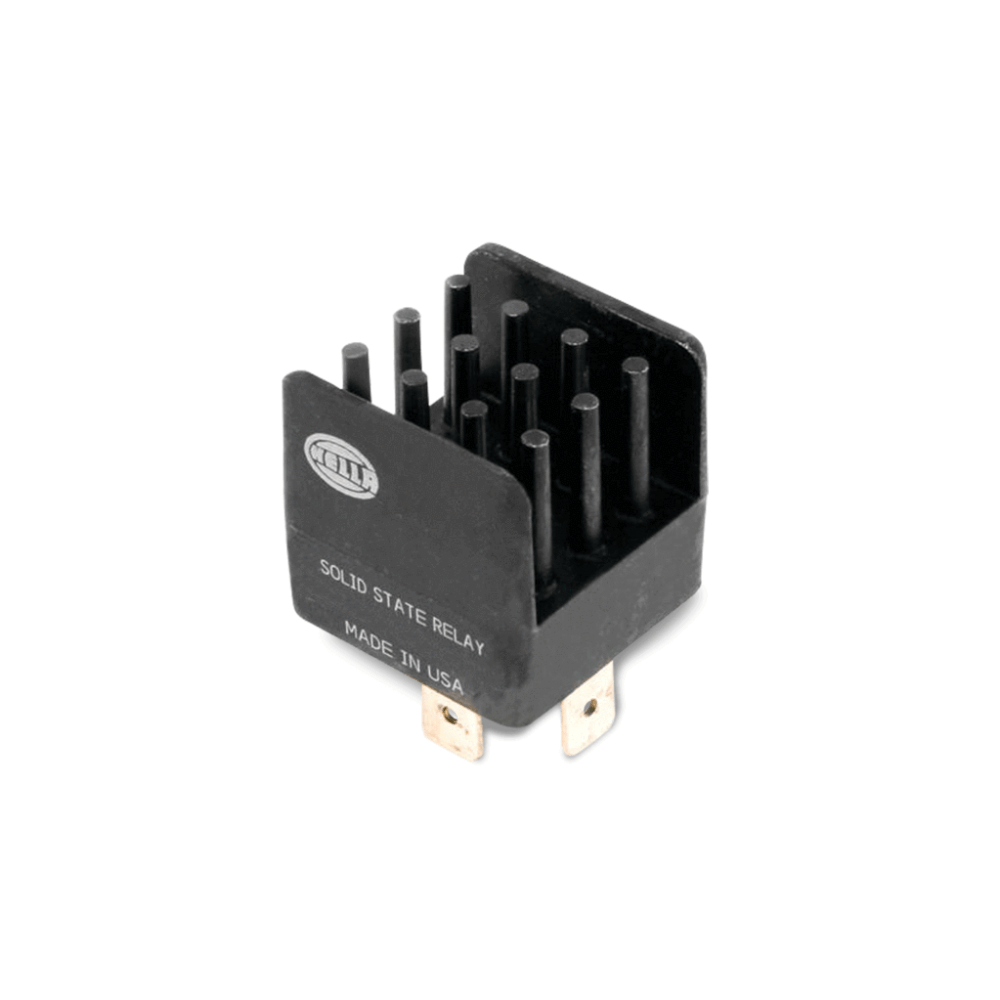

High-Speed Solid State Relay for Staging and Brake Control
The FuelTech Solid State Relay is purpose-built for staging control and brake control applications, delivering ultra-fast switching and reliable performance without the limitations of traditional mechanical relays. Designed for use with FuelTech ECUs, this relay is ideal for precision control in high-performance and racing environments.
With no moving parts, this solid state design ensures silent operation, increased durability, and consistent performance under demanding conditions.
Designed for FuelTech ECU Integration
This relay is fully compatible with FuelTech's built-in control strategies, making it a perfect match for advanced tuning setups.
- Supports staging control functions
- Supports brake control systems
- Compatible with FT600, FT550, FT500, FT500LITE, and FT450 ECUs
- Seamless integration with FuelTech auxiliary outputs
Fast Switching for PWM and Precision Control
Unlike traditional relays, this solid state unit offers rapid switching speeds, making it ideal for PWM-based control strategies.
- Supports PWM frequency from 0-1000Hz
- Fast response time for precise control
- Perfect for high-speed switching applications
- Can also be used as a standard relay
Durable, Compact, and Silent Operation
With its compact size and solid state construction, this relay is built to perform reliably in harsh motorsports environments.
- No mechanical parts for increased reliability
- Silent operation with no clicking noise
- Compact size for easy installation
- Lightweight design at only 30g
Electrical Connections
- 30 - Switched 12V (use fuse)
- 85 - Not connected
- 86 - Trigger - FT auxiliary output (activated when switched to ground)
- 87 - Output for load - Normally Open contact - 20A
Features
- 12V solid state relay
- Designed for staging and brake control applications
- Fast switching speed for PWM control
- No moving parts for increased durability
- Silent operation
- Compatible with FuelTech ECUs
Quick Specs
- Brand: FuelTech
- Product Type: Solid State Relay
- Voltage: 12V
- Max Current: 20A
- PWM Frequency: 0-1000Hz
- Dimensions: 27mm x 27mm x 26mm (1.07" x 1.07" x 1.02")
- Weight: 30g
- Application: Staging control, brake control, PWM switching
- Compatibility: FT600, FT550, FT500, FT500LITE, FT450
- Part Number: 3020004086
