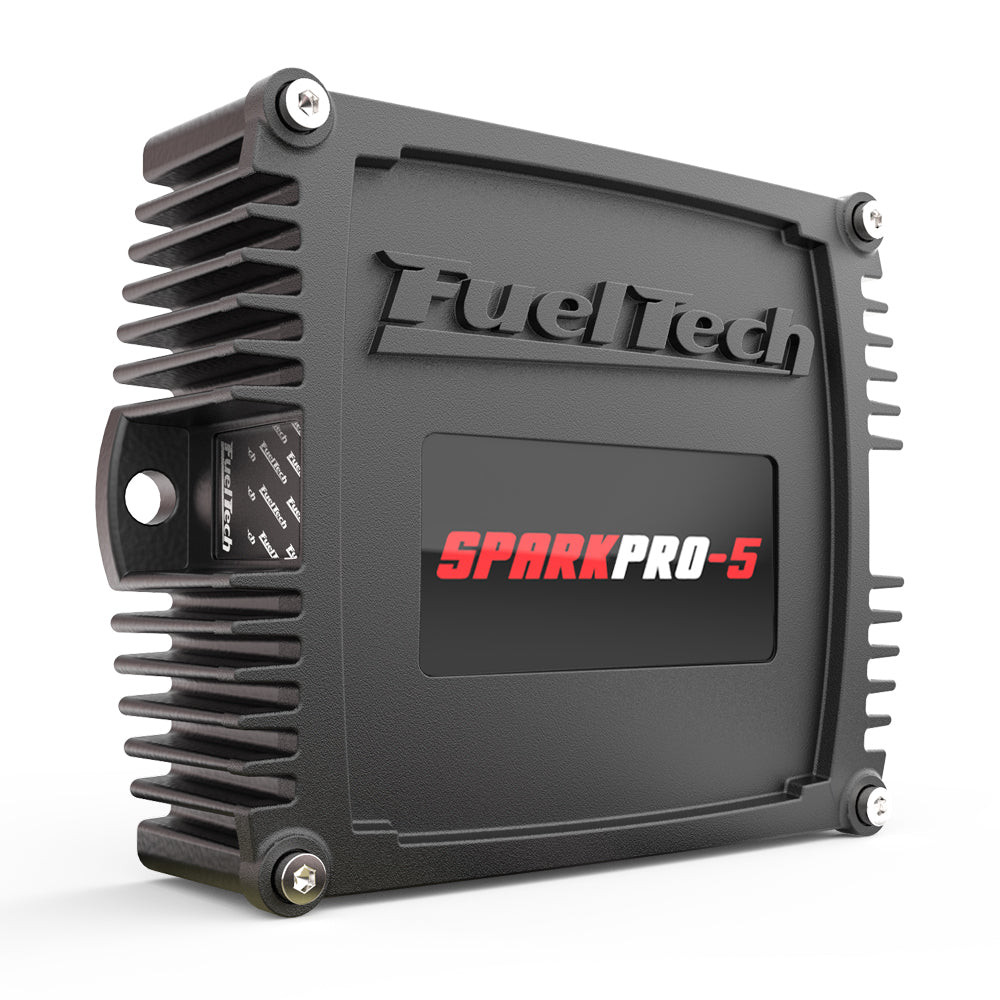

FuelTech SparkPRO-5 Ignition Module - 3010003330
High-Energy Inductive Ignition for 5-Cylinder Applications
The FuelTech SparkPRO-5 Ignition Module is a high-energy inductive ignition amplifier engineered for use with dumb coils (coils without built-in igniters). Designed for performance and racing applications, it delivers strong, consistent spark energy to improve combustion efficiency and ignition reliability.
With 5 independent ignition outputs, the SparkPRO-5 is ideal for 5-cylinder engine setups and integrates seamlessly with programmable ECUs that support dwell control.
5 Channel Ignition Control for Precision Spark Delivery
Each output channel is dedicated to a single coil, ensuring accurate spark delivery across all cylinders. This makes the SparkPRO-5 a reliable solution for custom engine builds and high-performance applications.
- 5 ignition outputs for multi-cylinder control
- Each channel connects to one coil only
- Designed for performance and motorsports applications
- Available in versions from 1 to 8 ignition outputs
High Voltage Output for Strong Ignition Performance
The SparkPRO-5 delivers up to 430V at the coil primary, providing the energy required for consistent ignition under high boost, high compression, and high RPM conditions.
- Up to 430V at coil primary
- Improves ignition strength and consistency
- Supports stable combustion under demanding conditions
- Ideal for boosted and high horsepower engines
Designed for Standalone ECU Systems
The SparkPRO-5 is compatible with programmable ECUs with dwell control, making it ideal for standalone engine management systems. It is not compatible with stock ECUs.
- Compatible with programmable ECUs with dwell control
- Not compatible with factory ECU systems
- Optimized for standalone and custom ECU applications
Harness Sold Separately for Flexible Installation
The SparkPRO-5 wiring harness is sold separately, allowing for flexible installation and custom wiring solutions.
- Harness not included
- Supports custom wiring and routing
- Ideal for race cars and custom builds
Features
- FuelTech SparkPRO-5 high-energy inductive ignition module
- Designed for dumb coils (no built-in igniter)
- 5 independent ignition outputs
- Up to 430V at coil primary
- Compatible with programmable ECUs with dwell control
- Improves ignition performance and reliability
- Ideal for racing and high-performance applications
- Harness sold separately
Quick Specs
- Brand: FuelTech
- Product Type: Inductive Ignition Module
- Model: SparkPRO-5
- Ignition Outputs: 5
- Coil Type: Dumb coils (no igniter)
- Primary Voltage: Up to 430V
- ECU Requirement: Programmable ECU with dwell control
- Compatibility: Not compatible with stock ECU
- Dimensions: 115 x 90 x 33 mm
- Included: SparkPRO-5 module, installation guide, FuelTech carbon fiber sticker
- Harness: Sold separately
- Part Number: 3010003330
FAQs
What type of coils does the SparkPRO-5 require?
The SparkPRO-5 is designed specifically for dumb coils without built-in igniters. It is not compatible with smart coils or factory ignition systems.
Can I use this with a stock ECU?
No. The SparkPRO-5 requires a programmable ECU with dwell control and cannot be used with factory ECUs.
