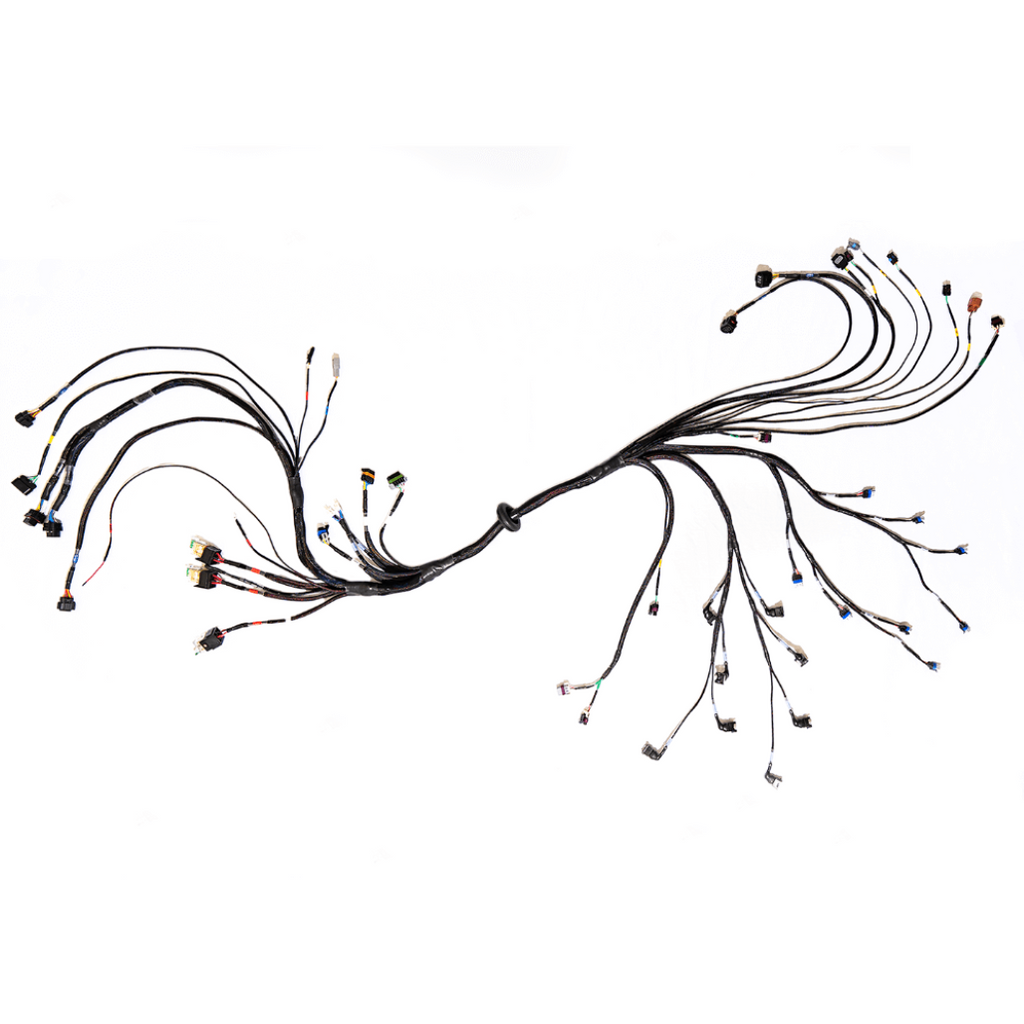

FuelTech FT450/550 Sportsman Datalogging A Harness - 2002007356
Plug and Play Datalogging Harness for FT450 and FT550 Systems
The FuelTech FT450/FT550 Sportsman Datalogging A Harness is a complete plug and play solution designed to simplify datalogging integration for vehicles equipped with a FuelTech FT450 or FT550 ECU. Built for racers and performance enthusiasts, this harness delivers clean installation, expanded functionality, and reliable data acquisition right out of the box.
Pre-terminated for key inputs and outputs, this harness allows you to quickly connect critical sensors and control systems without the need for complex custom wiring.
Pre-Terminated for Essential Datalogging Inputs
This harness is designed to plug directly into key data channels, allowing for immediate logging and monitoring of vital engine parameters.
- Dual wideband O2 sensor connections
- Oil pressure and fuel pressure inputs
- Engine temperature and transmission temperature inputs
- Driveshaft sensor and 2-step input connection
- Configured for VR or Hall effect crank and cam sensors
Expandability for Custom Inputs and Outputs
The Sportsman harness provides flexibility for expanding your setup with additional sensors and controls, making it ideal for both basic and advanced builds.
- Extra inputs connector supports up to 2 additional configurable inputs
- Extra outputs connectors allow control of up to 10 outputs
- Ideal for EFI injectors, ignition control, and accessory management
- Supports control of transbrake, shifter, nitrous, throttle stop, fans, pumps, and more
Ignition and Fuel System Compatibility
This harness supports a wide range of ignition and fuel configurations, giving you flexibility across different engine setups.
- Supports ignition control via CDI box with points input
- Compatible with smart coils
- Supports EFI fuel injectors through output connectors
- Note: 8 coils on wasted spark is not recommended for carbureted V8 applications
Built for Performance and Versatility
Originally designed around a Big Block Chevy platform, this harness features extended lead lengths for compatibility across a wide range of applications.
- Extra long leads for flexible installation across various platforms
- FT450 connector (FT550 A connector compatible)
- CPC firewall connector for clean routing
- Labeled connectors for easy installation
- Heat, moisture, and oil-resistant insulation
Integrated Power and Reliability
This harness includes built-in power distribution components to ensure reliable operation of all connected systems.
- Includes two 40A relays with built-in fuses
- Powers ECU, WB-O2 Nano, Peak and Hold drivers, sensors, and accessories
- Designed for consistent performance in demanding environments
Features
- Plug and play datalogging harness for FT450 and FT550 ECUs
- Pre-terminated connections for essential engine data inputs
- Supports VR and Hall effect crank and cam sensors
- Expandable inputs and outputs for custom setups
- Supports EFI, ignition, and accessory control
- Integrated relays and fused power distribution
- Durable, heat and oil-resistant construction
- Designed for racing and high-performance applications
Quick Specs
- Brand: FuelTech
- Product Type: Datalogging Harness
- Application: FT450 and FT550 ECU systems
- Connector Type: FT450 / FT550 A connector
- Firewall Connector: CPC style
- Inputs: Pre-terminated + 2 configurable additional inputs
- Outputs: Up to 10 configurable outputs
- Relays: 2 x 40A with built-in fuses
- Warranty: 1 Year Worldwide
- Part Number: 2002007356
FAQs
What is the main purpose of this harness?
This harness is designed to simplify datalogging and system expansion for FuelTech FT450 and FT550 ECUs by providing plug and play access to key inputs and outputs.
Can this harness be used for custom race functions?
Yes, it supports custom inputs and outputs for functions like nitrous control, transbrake, boost control, and more, making it ideal for race applications.
