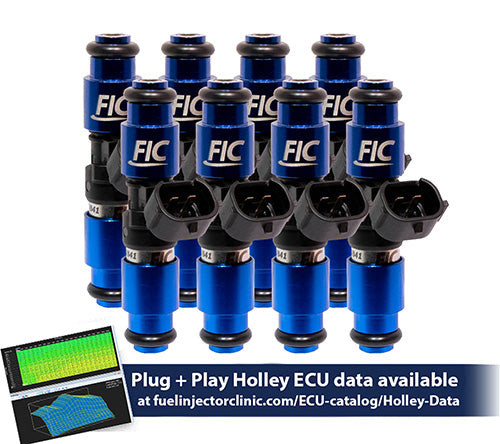

Fuel Injector Clinic 2150cc High-Z Fuel Injector Set (ish01-2150h) - Holley GM and Ford
Feed a serious high-horsepower Holley GM or Ford combination with the massive fuel capacity and precise control of the Fuel Injector Clinic 2150cc High-Z Fuel Injector Set. Part number ish01-2150h includes eight saturated, high-impedance injectors rated at 2150cc/min (200 lbs/hr) at 43.5 PSI and approximately 2500cc/min (240 lbs/hr) at OE 58 PSI fuel pressure. Despite their substantial flow capacity, these injectors are engineered for excellent linearity and repeatable short pulse width operation, giving tuners the control needed to manage fuel delivery across demanding performance applications.
Fuel Injector Clinic precisely flow matches each injector set to within 1%. Every injector is individually numbered, with its results documented on the detailed flow sheet supplied with the set. FIC flow tests and rates its high-performance injectors at 43.5 PSI (3 Bar) and 90 degrees F fuel temperature using CF-16B calibration fluid. Superior short pulse width control and tight manufacturing tolerances help make the ish01-2150h predictable to tune while delivering the fuel volume required by serious performance builds.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: ish01-2150h
- Application: Holley GM and Ford
- Injector Quantity: 8
- Injector Type: Saturated / High Impedance (High-Z)
- Flow Rate at 43.5 PSI: 2150cc/min (200 lbs/hr)
- Flow Rate at OE 58 PSI: 2500cc/min (240 lbs/hr)
- Test Pressure: 43.5 PSI (3 Bar)
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Flow Matching: Precisely matched to within 1%
- Injector Identification: Individually numbered
- Flow Documentation: Detailed injector flow sheet included
- Solder-In Pigtail Option: PGTDEN8
- EV1 Plug-and-Play Adaptor Option: PADPDtoJ8
- EV6 Plug-and-Play Adaptor Option: PADPDtoU8
- Multec II Plug-and-Play Adaptor Option: PADPDtoGM8
- O-Rings: Required application-specific O-rings included
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Eight 2150cc/min high-performance fuel injectors
- Flows 200 lbs/hr at 43.5 PSI fuel pressure
- Flows approximately 2500cc/min, or 240 lbs/hr, at OE 58 PSI fuel pressure
- Saturated, high-impedance High-Z injector design
- High-flow capacity for demanding performance fuel systems
- Excellent linearity for consistent and predictable fuel delivery
- Superior short pulse width control and repeatability
- Precisely flow matched to within 1%
- Each injector is individually numbered with results supplied on a detailed flow sheet
- Flow tested at 43.5 PSI and 90 degrees F using CF-16B calibration fluid
- Tight manufacturing tolerances support predictable tuning and strong drivability
- Brand-new, unused injectors rather than remanufactured or core-program injectors
- Multiple pigtail and plug-and-play adaptor configurations available
- Required O-rings included for the intended application configuration
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
Injector Plug and Wiring Options
The ish01-2150h is currently offered with multiple wiring connection options to accommodate different harness configurations. The solder-in configuration uses PGTDEN8 pigtails. Plug-and-play adaptor choices include PADPDtoJ8 for an EV1 connection, PADPDtoU8 for an EV6 connection, and PADPDtoGM8 for a Multec II connection. Selecting the appropriate configuration allows the injectors to be matched to the wiring requirements of the vehicle or aftermarket fuel system.
Fuel Injector Clinic uses brand-new, unused injectors for its performance applications rather than relying on remanufactured or core-program injectors. For aftermarket fuel systems, custom installations, or other non-standard setups, contact Beefcake Racing before ordering so the correct injector and wiring configuration can be confirmed for your combination.
Fitment
- Holley GM applications
- Holley Ford applications
FAQs
How much does the Fuel Injector Clinic ish01-2150h flow at 43.5 PSI and 58 PSI?
The ish01-2150h is rated at 2150cc/min, or 200 lbs/hr, at 43.5 PSI (3 Bar). At OE 58 PSI (4 Bar) fuel pressure, the injectors flow approximately 2500cc/min, or 240 lbs/hr.
What wiring options are available for the ish01-2150h?
Fuel Injector Clinic currently offers the set with PGTDEN8 solder-in pigtails or plug-and-play adaptor configurations for EV1, EV6, and Multec II connections. Because Holley GM and Ford installations can vary, confirm the connector configuration required by your specific harness before ordering.
Order Your Fuel Injector Clinic Injectors from Beefcake Racing
When your combination requires 2150cc injectors, correct sizing, fuel pressure, and connector configuration become especially important. Beefcake Racing can help you confirm that the Fuel Injector Clinic ish01-2150h is properly configured for your Holley GM or Ford fuel system before you order. For product questions or help selecting your injectors, email sales@beefcakeracing.com or call 1-855-827-7223.
