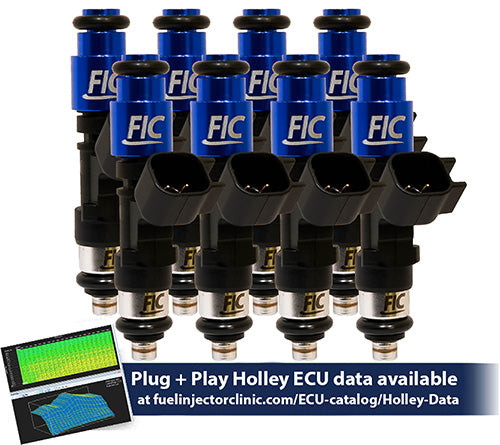

Fuel Injector Clinic 775cc High-Z Fuel Injector Set (ish01-0775h) - Holley GM and Ford
Step up the fuel delivery of your Holley GM or Ford performance combination with the Fuel Injector Clinic 775cc High-Z Fuel Injector Set. Part number ish01-0775h includes eight saturated, high-impedance injectors rated at 775cc/min (74 lbs/hr) at 43.5 PSI and approximately 900cc/min (85 lbs/hr) at OE 58 PSI fuel pressure. Excellent linearity, repeatable short pulse width operation, and tight manufacturing tolerances give tuners the precise fuel control needed for strong drivability while providing increased fuel capacity for higher-performance combinations.
Fuel Injector Clinic precisely flow matches each injector set to within 1%. Every injector is individually numbered, and its results are documented on the detailed flow sheet included with the set. FIC flow tests and rates its high-performance injectors at 43.5 PSI (3 Bar) and 90 degrees F fuel temperature using CF-16B calibration fluid. Combined with superior short pulse width control, this rigorous matching and testing process makes the ish01-0775h consistent and predictable to tune across a wide range of operating conditions.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: ish01-0775h
- Application: Holley GM and Ford
- Injector Quantity: 8
- Injector Type: Saturated / High Impedance (High-Z)
- Flow Rate at 43.5 PSI: 775cc/min (74 lbs/hr)
- Flow Rate at OE 58 PSI: 900cc/min (85 lbs/hr)
- Test Pressure: 43.5 PSI (3 Bar)
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Flow Matching: Precisely matched to within 1%
- Injector Identification: Individually numbered
- Flow Documentation: Detailed injector flow sheet included
- Included Pigtails: PGTUSC8
- Optional Plug-and-Play Adaptors: PADPUtoJ8
- O-Rings: Required application-specific O-rings included
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Eight 775cc/min high-performance fuel injectors
- Flows 74 lbs/hr at 43.5 PSI fuel pressure
- Flows approximately 900cc/min, or 85 lbs/hr, at OE 58 PSI fuel pressure
- Saturated, high-impedance High-Z injector design
- Excellent linearity for consistent and predictable fuel delivery
- Superior short pulse width control and repeatability
- Precisely flow matched to within 1%
- Each injector is individually numbered with results provided on a detailed flow sheet
- Flow tested at 43.5 PSI and 90 degrees F using CF-16B calibration fluid
- Tight manufacturing tolerances help provide easier tuning and excellent drivability
- Brand-new, unused injectors rather than remanufactured or core-program injectors
- PGTUSC8 solder-in pigtails included
- Optional PADPUtoJ8 plug-and-play adaptors available
- Required O-rings included for the intended application configuration
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
Injector Plug and Wiring Requirements
The ish01-0775h injector set requires an injector plug conversion when using the included PGTUSC8 pigtails. The pigtails can be soldered into the vehicle wiring harness to replace the existing injector plugs. For an installation without cutting or soldering the harness, optional PADPUtoJ8 plug-and-play adaptors can be purchased to make the required connection.
This connector configuration allows Fuel Injector Clinic to supply brand-new, unused injectors for its performance applications instead of relying on remanufactured or core-program injectors. For aftermarket fuel systems or other non-standard installations, contact Beefcake Racing before ordering to confirm that you receive the correct injector configuration for your setup.
Fitment
- Holley GM applications
- Holley Ford applications
FAQs
How much does the Fuel Injector Clinic ish01-0775h flow at 43.5 PSI and 58 PSI?
The ish01-0775h is rated at 775cc/min, or 74 lbs/hr, at 43.5 PSI (3 Bar). At OE 58 PSI (4 Bar) fuel pressure, the injectors flow approximately 900cc/min, or 85 lbs/hr.
Does the ish01-0775h require injector wiring changes?
When using the included PGTUSC8 pigtails, the existing injector plugs must be replaced and the new pigtails soldered into the wiring harness. Optional PADPUtoJ8 plug-and-play adaptors can be used instead to make the connection without cutting or soldering the vehicle harness.
Order Your Fuel Injector Clinic Injectors from Beefcake Racing
Proper injector sizing and configuration are essential to getting the fuel control and performance your combination demands. Beefcake Racing can help you confirm that the Fuel Injector Clinic ish01-0775h is the right choice for your Holley GM or Ford setup. For product questions or help selecting the correct fuel injectors, email sales@beefcakeracing.com or call 1-855-827-7223.
