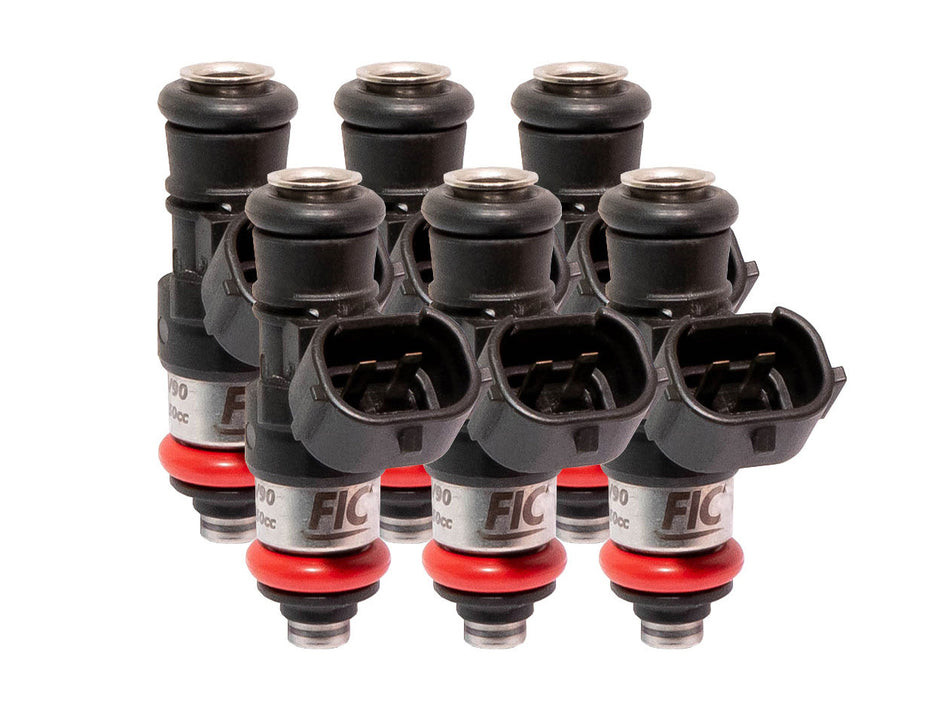

Fuel Injector Clinic 2150cc High Impedance Fuel Injector Set (IS832-2150H) - BMW S55 M3 / M4 / M2 Competition
Feed the fuel demands of your extreme BMW S55 build with the Fuel Injector Clinic IS832-2150H Fuel Injector Set. Designed specifically for S55-powered BMW M models equipped with an aftermarket intake manifold or port injection kit, this complete set of six 2150cc high impedance ball and seat injectors delivers massive fuel capacity without sacrificing idle quality or drivability. Utilizing the latest injector technology and Fuel Injector Clinic's advanced matching process, these injectors provide exceptional low-speed throttle response, excellent short pulse width control, and the consistency required for high-horsepower racing applications.
Because of their tremendous flow capacity, the IS832-2150H injectors are dynamically matched using Fuel Injector Clinic's proprietary Data Match Technology, significantly improving ECU control in the sub-2 millisecond pulse width range commonly encountered during idle and part-throttle operation. Every injector is individually serial numbered and supplied with a comprehensive Data Match Sheet containing individual flow and latency values for precise ECU calibration. Flow testing is performed at 43.5 PSI (3 Bar) using calibration fluid at 90 degrees Fahrenheit. This injector set includes PGTDEN6 injector pigtails, while optional PADPDtoU6 Plug and Play adapters are available separately for customers who prefer a no-cut installation. All required O-rings are included for the intended application, and every injector is backed by Fuel Injector Clinic's Lifetime Warranty against defects in original manufacture.
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Part Number: IS832-2150H
- Injector Size: 2150cc
- Quantity: Six injectors
- Injector Type: High Impedance Ball and Seat
- Engine: BMW S55 3.0L Twin Turbo Inline 6
- Application: Aftermarket intake manifold or port injection kit
- Included: PGTDEN6 injector pigtails
- Optional Adapter: PADPDtoU6 Plug and Play adapters
- Flow Rating: Rated at 43.5 PSI (3 Bar)
- Flow Test Temperature: 90 degrees Fahrenheit
- Flow Test Fluid: Calibration fluid
- Matching Method: Fuel Injector Clinic Data Match Technology
- Installation: Includes all required O-rings for the intended application
- Warranty: Lifetime Warranty against defects in original manufacture
Features
- Complete set of six 2150cc high impedance ball and seat fuel injectors.
- Designed for BMW S55 engines using an aftermarket intake manifold or port injection kit.
- Fuel Injector Clinic's highest flowing high impedance injector for extreme horsepower applications.
- Advanced dynamic matching for exceptional idle quality and low-speed drivability.
- Excellent short pulse width control despite extremely large flow capacity.
- Matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Each injector is individually serial numbered.
- Includes Data Match Sheet with individual flow and latency values.
- Flow tested at 43.5 PSI (3 Bar).
- Tested at 90 degrees Fahrenheit using calibration fluid.
- Includes PGTDEN6 injector pigtails.
- Optional PADPDtoU6 Plug and Play adapters available separately.
- Includes all required O-rings for the intended application.
- Backed by Fuel Injector Clinic's Lifetime Warranty.
Important Fuel Compatibility Information
Do not use the IS832-2150H with VP Q16, VP Import, or any other MTBE oxygenated fuel. The internal seal used in this injector can swell when exposed to MTBE oxygenated fuels, significantly reducing injector flow and making the injector unsuitable for these fuel types.
The IS832-2150H performs exceptionally well with E85 and other non-MTBE fuels. When operating with alcohol-based fuels such as E85, Fuel Injector Clinic recommends following proper storage and maintenance procedures to help minimize the potential for corrosion during extended periods of inactivity.
Fitment
- 2015 BMW F80 M3
- 2016 BMW F80 M3
- 2017 BMW F80 M3
- 2018 BMW F80 M3
- 2015 BMW F82 M4 Coupe
- 2016 BMW F82 M4 Coupe
- 2017 BMW F82 M4 Coupe
- 2018 BMW F82 M4 Coupe
- 2019 BMW F82 M4 Coupe
- 2020 BMW F82 M4 Coupe
- 2015 BMW F83 M4 Convertible
- 2016 BMW F83 M4 Convertible
- 2017 BMW F83 M4 Convertible
- 2018 BMW F83 M4 Convertible
- 2019 BMW F83 M4 Convertible
- 2020 BMW F83 M4 Convertible
- 2018 BMW F87 M2 Competition
- 2019 BMW F87 M2 Competition
- 2020 BMW F87 M2 Competition
- 2021 BMW F87 M2 CS
FAQs
Will these injectors fit the factory intake manifold?
No. The IS832-2150H is designed specifically for BMW S55 engines equipped with an aftermarket intake manifold or a port injection kit. It is not intended to replace the factory direct injection injectors.
Can these injectors be used with VP Q16 or VP Import fuel?
No. The IS832-2150H should never be used with VP Q16, VP Import, or any other MTBE oxygenated fuel because the internal injector seal can swell and significantly reduce injector flow. These injectors are an excellent choice for E85 and other non-MTBE fuels when proper maintenance procedures are followed.
