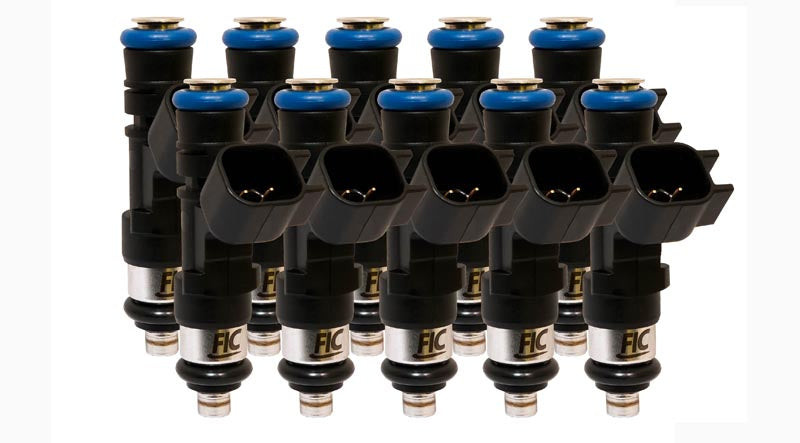

Fuel Injector Clinic 650cc High Impedance Fuel Injector Set (IS810-0650H) - 2006-2010 BMW E60 M5 / 2006-2010 BMW E63 M6 / 2007-2010 BMW E64 M6
Give your BMW S85 V10 the fueling precision it deserves with the Fuel Injector Clinic IS810-0650H Fuel Injector Set. Engineered specifically for the legendary 5.0L V10 found in the BMW M5 and M6, this complete set of ten 650cc saturated (high impedance) ball and seat injectors utilizes the latest injector technology to provide exceptional linearity, outstanding short pulse width repeatability, and consistent fuel delivery throughout the RPM range. Whether you're supporting a bolt-on performance build or preparing for forced induction, these injectors offer excellent drivability while providing additional fuel capacity for higher horsepower combinations.
Every injector is individually flow tested, dynamically matched, and serial numbered using Fuel Injector Clinic's proprietary Data Match Technology. Each matched injector set includes a detailed Data Match Sheet containing individual flow and latency values for highly accurate ECU calibration. Flow testing is performed at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees Fahrenheit. PGTUSC10 injector pigtails are included for installation, while optional PADPUtoJ10 Plug and Play adapters are available separately for customers who prefer a no-cut installation. All required O-rings are included for the factory application, and every injector is backed by Fuel Injector Clinic's Lifetime Warranty against defects in original manufacture.
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Part Number: IS810-0650H
- Injector Size: 650cc
- Quantity: Ten injectors
- Injector Type: Saturated / High Impedance Ball and Seat
- Vehicle Application: BMW S85 V10
- Included: PGTUSC10 injector pigtails
- Optional Adapter: PADPUtoJ10 Plug and Play adapters
- Flow Rating: Rated at 43.5 PSI (3 Bar)
- Flow Test Fluid: CF-16B calibration fluid
- Flow Test Temperature: 90 degrees Fahrenheit
- Matching Method: Fuel Injector Clinic Data Match Technology
- Installation: Includes all required O-rings for the factory application
- Warranty: Lifetime Warranty against defects in original manufacture
Features
- Complete set of ten 650cc saturated (high impedance) ball and seat fuel injectors.
- Designed specifically for BMW S85 V10 applications.
- Latest injector technology for precise and consistent fuel delivery.
- Excellent linearity throughout the operating range.
- Superior short pulse width repeatability for smooth idle and outstanding drivability.
- Matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Each injector is individually serial numbered.
- Includes Data Match Sheet with individual flow and latency values.
- Flow tested at 43.5 PSI (3 Bar).
- Tested at 90 degrees Fahrenheit using CF-16B calibration fluid.
- Brand-new injectors with no remanufactured or core exchange components.
- Includes PGTUSC10 injector pigtails.
- Optional PADPUtoJ10 Plug and Play adapters available separately.
- Includes all required O-rings for the factory application.
- Backed by Fuel Injector Clinic's Lifetime Warranty.
Fitment
- 2006 BMW E60 M5
- 2007 BMW E60 M5
- 2008 BMW E60 M5
- 2009 BMW E60 M5
- 2010 BMW E60 M5
- 2006 BMW E63 M6 Coupe
- 2007 BMW E63 M6 Coupe
- 2008 BMW E63 M6 Coupe
- 2009 BMW E63 M6 Coupe
- 2010 BMW E63 M6 Coupe
- 2007 BMW E64 M6 Convertible
- 2008 BMW E64 M6 Convertible
- 2009 BMW E64 M6 Convertible
- 2010 BMW E64 M6 Convertible
FAQs
Do these injectors require wiring modifications?
Yes. The IS810-0650H includes PGTUSC10 injector pigtails for solder-in installation. If you prefer not to modify the factory harness, optional PADPUtoJ10 Plug and Play adapters are available separately for a direct plug-in installation.
Why are pigtails included instead of factory connectors?
Fuel Injector Clinic uses brand-new injectors for its performance applications instead of remanufactured or core-based injectors. The included pigtails or optional Plug and Play adapters provide installation flexibility while maintaining the reliability and consistency of new injectors.
