Fuel Injector Clinic 1440cc High Impedance Fuel Injector Set (IS802-1440H) - 1992-1999 BMW E36 M3

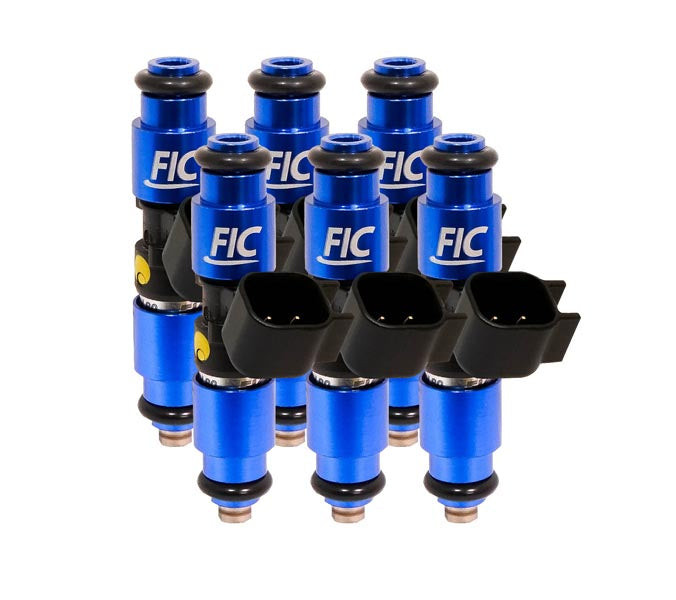

Strike the perfect balance between fuel capacity and street manners with the Fuel Injector Clinic IS802-1440H Fuel Injector Set for the 1992-1999 BMW E36 M3. This complete set of six 1440cc saturated (high impedance) ball and seat injectors is engineered for high-performance naturally aspirated, turbocharged, and supercharged applications where precise fuel delivery is just as important as maximum flow. Positioned between Fuel Injector Clinic's popular 1200cc and 1650cc injectors, the 1440cc injector offers exceptional tuning flexibility while maintaining outstanding idle quality and drivability.
Built with a stainless alloy valve, the IS802-1440H is compatible with virtually every popular performance fuel, including pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Every injector is individually flow tested, matched, and serial numbered using Fuel Injector Clinic's proprietary Data Match Technology, and each matched set includes a detailed Data Match Sheet with individual flow and latency values for accurate ECU calibration. Flow testing is performed at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees Fahrenheit. PGTUSC6 injector pigtails are included, optional PADPUtoJ6 Plug and Play adapters are available separately, and all required O-rings are supplied for the factory application. Every injector set is backed by Fuel Injector Clinic's Lifetime Warranty against defects in original manufacture.
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Part Number: IS802-1440H
- Injector Size: 1440cc
- Quantity: Six injectors
- Injector Type: Saturated / High Impedance Ball and Seat
- Vehicle Application: 1992-1999 BMW E36 M3
- Included: PGTUSC6 injector pigtails
- Optional Adapter: PADPUtoJ6 Plug and Play adapters
- Flow Rating: Rated at 43.5 PSI (3 Bar)
- Flow Test Fluid: CF-16B calibration fluid
- Flow Test Temperature: 90 degrees Fahrenheit
- Matching Method: Fuel Injector Clinic Data Match Technology
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Installation: Includes all required O-rings for the factory application
- Warranty: Lifetime Warranty against defects in original manufacture
Features
- Complete set of six 1440cc saturated (high impedance) fuel injectors.
- Designed specifically for the 1992-1999 BMW E36 M3.
- Bridges the gap between Fuel Injector Clinic's 1200cc and 1650cc injectors.
- Excellent idle quality for street-driven vehicles.
- Supports high-horsepower gasoline and E85 engine combinations.
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels.
- Stainless alloy valve construction for broad fuel compatibility.
- Outstanding short pulse width control and excellent linearity.
- Matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Each injector is individually serial numbered.
- Includes Data Match Sheet with individual flow and latency values.
- Flow tested at 43.5 PSI (3 Bar).
- Tested at 90 degrees Fahrenheit using CF-16B calibration fluid.
- Includes PGTUSC6 injector pigtails.
- Optional PADPUtoJ6 Plug and Play adapters available separately.
- Includes all required O-rings for the factory application.
- Backed by Fuel Injector Clinic's Lifetime Warranty.
Fitment
- 1992 BMW E36 M3
- 1993 BMW E36 M3
- 1994 BMW E36 M3
- 1995 BMW E36 M3
- 1996 BMW E36 M3
- 1997 BMW E36 M3
- 1998 BMW E36 M3
- 1999 BMW E36 M3
FAQs
Do these injectors require wiring modifications?
Yes. The IS802-1440H includes PGTUSC6 injector pigtails that can be soldered into the factory wiring harness. If you prefer a no-cut installation, optional PADPUtoJ6 Plug and Play adapters are available separately.
What fuels are these injectors compatible with?
The stainless alloy valve construction allows the IS802-1440H to operate with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels while maintaining excellent drivability and tuning performance.
