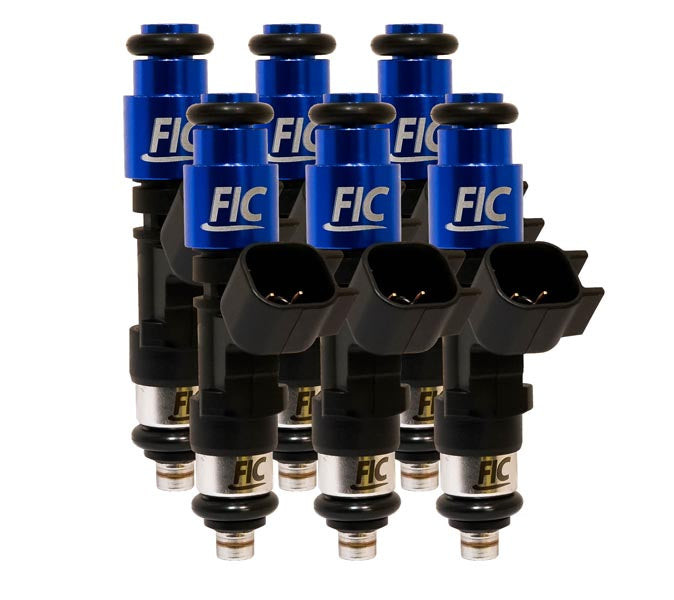

Fuel Injector Clinic 1000cc High Impedance Fuel Injector Set (IS802-1000H) - 1992-1999 BMW E36 M3
Give your BMW E36 M3 the fueling capacity needed for serious horsepower with the Fuel Injector Clinic IS802-1000H Fuel Injector Set. This complete set of six 1000cc saturated (high impedance) ball and seat injectors is engineered specifically for the E36 M3 and is an excellent choice for high-performance naturally aspirated, turbocharged, and supercharged applications. Utilizing the latest injector technology, these injectors provide exceptional linearity, outstanding short pulse width control, and consistent fuel delivery for smooth idle quality, crisp throttle response, and excellent drivability.
Each injector is individually flow tested, matched, and serial numbered using Fuel Injector Clinic's proprietary Data Match Technology. Every injector set includes a detailed Data Match Sheet containing individual flow and latency values, allowing tuners to achieve precise ECU calibration and consistent cylinder-to-cylinder fueling. The injectors are flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees Fahrenheit, include all required O-rings for the factory application, and are backed by Fuel Injector Clinic's Lifetime Warranty against defects in original manufacture. PGTUSC6 injector pigtails are included, while optional PADPUtoJ6 Plug and Play adapters are available for installers who prefer not to modify the factory wiring harness.
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Part Number: IS802-1000H
- Injector Size: 1000cc
- Quantity: Six injectors
- Injector Type: Saturated / High Impedance Ball and Seat
- Vehicle Application: BMW E36 M3
- Included: PGTUSC6 injector pigtails
- Optional Adapter: PADPUtoJ6 Plug and Play adapters
- Flow Rating: Rated at 43.5 PSI (3 Bar)
- Flow Test Fluid: CF-16B calibration fluid
- Flow Test Temperature: 90 degrees Fahrenheit
- Matching Method: Fuel Injector Clinic Data Match Technology
- Installation: Includes all required O-rings for the factory application
- Warranty: Lifetime Warranty against defects in original manufacture
Features
- Complete set of six 1000cc saturated (high impedance) fuel injectors.
- Designed specifically for the 1992-1999 BMW E36 M3.
- Utilizes the latest injector technology.
- Brand-new injectors with no remanufactured or core exchange components.
- Excellent linearity throughout the operating range.
- Superior short pulse width repeatability for simplified tuning.
- Matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Each injector is individually serial numbered.
- Includes Data Match Sheet with individual flow and latency values.
- Flow tested at 43.5 PSI (3 Bar).
- Tested at 90 degrees Fahrenheit using CF-16B calibration fluid.
- Delivers excellent idle quality, throttle response, and drivability.
- Includes PGTUSC6 injector pigtails.
- Optional PADPUtoJ6 Plug and Play adapters available separately.
- Includes all required O-rings for the factory application.
- Backed by Fuel Injector Clinic's Lifetime Warranty.
Fitment
- 1992 BMW E36 M3
- 1993 BMW E36 M3
- 1994 BMW E36 M3
- 1995 BMW E36 M3
- 1996 BMW E36 M3
- 1997 BMW E36 M3
- 1998 BMW E36 M3
- 1999 BMW E36 M3
FAQs
Do these injectors require modifications to the factory wiring?
Yes. The IS802-1000H includes PGTUSC6 injector pigtails for wiring conversion. If you prefer not to cut or solder the factory harness, optional PADPUtoJ6 Plug and Play adapters are available separately.
Why does Fuel Injector Clinic include pigtails instead of remanufactured injectors?
Fuel Injector Clinic uses brand-new injectors for its performance applications rather than remanufactured or core-based injectors. The included pigtails or optional adapters allow installation while maintaining the reliability and consistency of new injectors.
