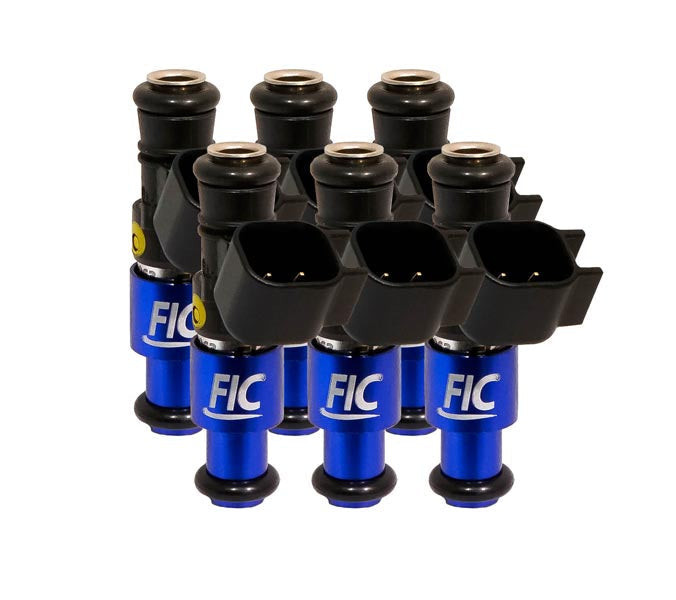

Fuel Injector Clinic 1440cc High Impedance Fuel Injector Set (IS801-1440H) - 2000-2006 BMW E46 M3 / 2006-2008 BMW Z4 M
Bridge the gap between Fuel Injector Clinic's popular 1200cc and 1650cc offerings with the Fuel Injector Clinic IS801-1440H Fuel Injector Set. Designed specifically for the 2000-2006 BMW E46 M3 and 2006-2008 BMW Z4 M, this complete set of six 1440cc saturated (high impedance) ball and seat injectors provides the ideal balance of massive fuel delivery, outstanding drivability, and broad fuel compatibility. Whether you're building a high-horsepower street car or a serious competition vehicle, these injectors deliver the precise fueling needed to support demanding gasoline and E85 combinations while maintaining excellent idle quality and throttle response.
Constructed with a durable stainless alloy valve, the IS801-1440H is compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Every injector is individually flow tested, dynamically matched, and serial numbered using Fuel Injector Clinic's proprietary Data Match Technology, with a detailed Data Match Sheet included for precise ECU calibration. Flow testing is performed at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees Fahrenheit. PGTUSC6 injector pigtails are included for installation, while optional PADPUtoJ6 Plug and Play adapters are available separately for a no-cut installation. Every injector set includes all required O-rings for the factory application and is backed by Fuel Injector Clinic's Lifetime Warranty against defects in original manufacture.
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Part Number: IS801-1440H
- Injector Size: 1440cc
- Quantity: Six injectors
- Injector Type: Saturated / High Impedance Ball and Seat
- Vehicle Application: 2000-2006 BMW E46 M3 / 2006-2008 BMW Z4 M
- Included: PGTUSC6 injector pigtails
- Optional Adapter: PADPUtoJ6 Plug and Play adapters
- Flow Rating: Rated at 43.5 PSI (3 Bar)
- Flow Test Fluid: CF-16B calibration fluid
- Flow Test Temperature: 90 degrees Fahrenheit
- Matching Method: Fuel Injector Clinic Data Match Technology
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Installation: Includes all required O-rings for the factory application
- Warranty: Lifetime Warranty against defects in original manufacture
Features
- Complete set of six 1440cc saturated (high impedance) ball and seat fuel injectors.
- Engineered for the 2000-2006 BMW E46 M3 and 2006-2008 BMW Z4 M.
- Ideal injector size between Fuel Injector Clinic's 1200cc and 1650cc offerings.
- Excellent idle quality and drivability for street-driven performance vehicles.
- Supports high-horsepower gasoline and E85 engine combinations.
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels.
- Stainless alloy valve construction provides exceptional durability and fuel compatibility.
- Outstanding short pulse width control and excellent linearity.
- Matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Each injector is individually serial numbered.
- Includes Data Match Sheet with individual flow and latency values.
- Flow tested at 43.5 PSI (3 Bar).
- Tested at 90 degrees Fahrenheit using CF-16B calibration fluid.
- Includes PGTUSC6 injector pigtails.
- Optional PADPUtoJ6 Plug and Play adapters available separately.
- Includes all required O-rings for the factory application.
- Backed by Fuel Injector Clinic's Lifetime Warranty.
Fitment
- 2000 BMW E46 M3
- 2001 BMW E46 M3
- 2002 BMW E46 M3
- 2003 BMW E46 M3
- 2004 BMW E46 M3
- 2005 BMW E46 M3
- 2006 BMW E46 M3
- 2006 BMW Z4 M
- 2007 BMW Z4 M
- 2008 BMW Z4 M
FAQs
Do these injectors require wiring modifications?
Yes. The IS801-1440H includes PGTUSC6 injector pigtails for solder-in installation. If you'd rather avoid cutting or soldering your factory harness, optional PADPUtoJ6 Plug and Play adapters are available separately.
What fuels are these injectors compatible with?
The stainless alloy valve construction allows the IS801-1440H to safely operate with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels while maintaining excellent drivability and tuning performance.
