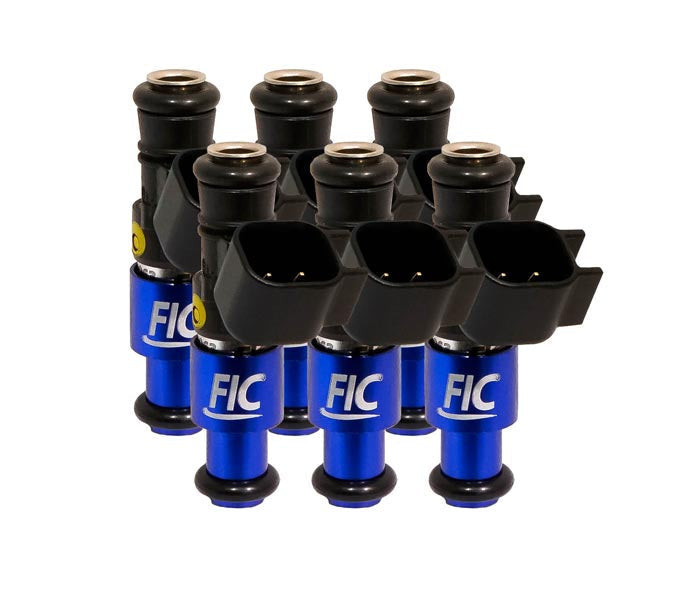

Fuel Injector Clinic 1440cc Injector Set (is412-1440h) - 2008-2014 Ford Falcon XR6T FG
Upgrade the fuel system in your 2008-2014 Ford Falcon XR6T FG with the Fuel Injector Clinic 1440cc high-impedance injector set. Designed to bridge the gap between FIC's 1200cc and 1650cc injectors, this six-injector set flows 1440cc/min, or 140 lbs/hr, at 43.5 PSI fuel pressure. The combination of substantial fuel capacity, excellent linearity, and precise short pulse width control makes these injectors an excellent choice for high-horsepower XR6T builds that still demand responsive idle and street drivability.
Fuel Injector Clinic builds the 1440cc injector with stainless alloy valve construction for broad fuel compatibility, including pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Every set is precisely matched using FIC's proprietary Data Match Technology, and each injector is individually serial numbered with detailed matching results supplied on the Data Match Sheet. The set includes PGTUSC6 solder-in pigtails, with PADPUtoJ6 plug-and-play adapters available as an option for installation without cutting or soldering the factory harness.
Specifications
- Part Number: is412-1440h
- Application: Ford Falcon XR6T FG
- Injector Quantity: 6
- Flow Rate: 1440cc/min
- Flow Rate at 43.5 PSI: 140 lbs/hr
- Fuel Pressure Rating: 43.5 PSI / 3 Bar
- Impedance: High impedance / saturated
- Injector Design: Ball and seat
- Valve Construction: Stainless alloy
- Included Connector Solution: PGTUSC6 solder-in pigtails
- Optional Connector Solution: PADPUtoJ6 plug-and-play adapters
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Calibration Fluid: CF-16B
- Test Fuel Temperature: 90 degrees F
- ECU Data: Plug-and-play Ford ECU data available from Fuel Injector Clinic
- O-Rings: Includes O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 1440cc/min high-impedance fuel injectors for the Ford Falcon XR6T FG
- 140 lbs/hr flow rating at 43.5 PSI fuel pressure
- Excellent idle performance for a high-flow performance injector
- Strong fuel capacity for high-horsepower gasoline and E85 combinations
- Excellent linearity and short pulse width repeatability for precise tuning
- Stainless alloy valve construction for broad fuel compatibility
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Precisely matched using Fuel Injector Clinic Data Match Technology
- Each injector is individually serial numbered
- Detailed Data Match Sheet provides injector matching and latency information
- Flow tested and rated at 43.5 PSI / 3 Bar
- Tested at 90 degrees F fuel temperature using CF-16B calibration fluid
- Includes PGTUSC6 solder-in pigtails
- Optional PADPUtoJ6 plug-and-play adapters eliminate the need for cutting and soldering during connector conversion
- Plug-and-play Ford ECU calibration data available from Fuel Injector Clinic
- Includes the O-rings required for the listed factory application
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
Data Match Technology for Precise Fuel Delivery
Fuel delivery consistency becomes increasingly important as injector size and horsepower demands increase. Fuel Injector Clinic uses its proprietary Data Match Technology to precisely match the injectors within each set. Every injector is individually serial numbered, and the supplied Data Match Sheet provides detailed flow matching and latency information. This gives your tuner accurate injector data for more precise control across all six cylinders.
High Flow Without Sacrificing Drivability
The 1440cc injector is positioned between FIC's 1200cc and 1650cc offerings, making it a strong option for XR6T combinations that have outgrown smaller injectors but do not require the additional capacity of a 1650cc set. Superior short pulse width control, excellent linearity, and precise matching help maintain smooth idle and part-throttle behavior while providing the additional fuel needed for higher horsepower output on both gasoline and E85.
Built for Gasoline, E85, and Race Fuels
Stainless alloy valve construction gives the FIC 1440cc injector extensive fuel compatibility. These injectors can be used with pump gasoline and E85 as well as Q16, VP Import, FTW, and other MTBE oxygenated race fuels. That flexibility makes the is412-1440h a versatile choice for Falcon XR6T builds that may use different fuels as power goals or vehicle use change.
Connector Options for a Cleaner Installation
The is412-1440h set includes PGTUSC6 solder-in pigtails for the required injector connector conversion. For owners who prefer to avoid cutting and soldering the vehicle wiring harness, optional PADPUtoJ6 plug-and-play adapters are available. Fuel Injector Clinic also supplies the O-rings required for the listed factory application. If your Falcon uses an aftermarket fuel rail or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to verify proper fitment.
Fitment
- 2008 Ford Falcon XR6T FG
- 2009 Ford Falcon XR6T FG
- 2010 Ford Falcon XR6T FG
- 2011 Ford Falcon XR6T FG
- 2012 Ford Falcon XR6T FG
- 2013 Ford Falcon XR6T FG
- 2014 Ford Falcon XR6T FG
FAQs
What wiring components are included with the Fuel Injector Clinic is412-1440h injector set?
The set includes PGTUSC6 solder-in pigtails. Optional PADPUtoJ6 plug-and-play adapters are available for owners who want to complete the connector conversion without cutting or soldering the factory wiring harness.
Can the FIC 1440cc is412-1440h injectors be used with E85 and oxygenated race fuels?
Yes. The stainless alloy valve construction provides compatibility with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels, giving XR6T owners flexibility when choosing fuel for street and high-performance applications.
