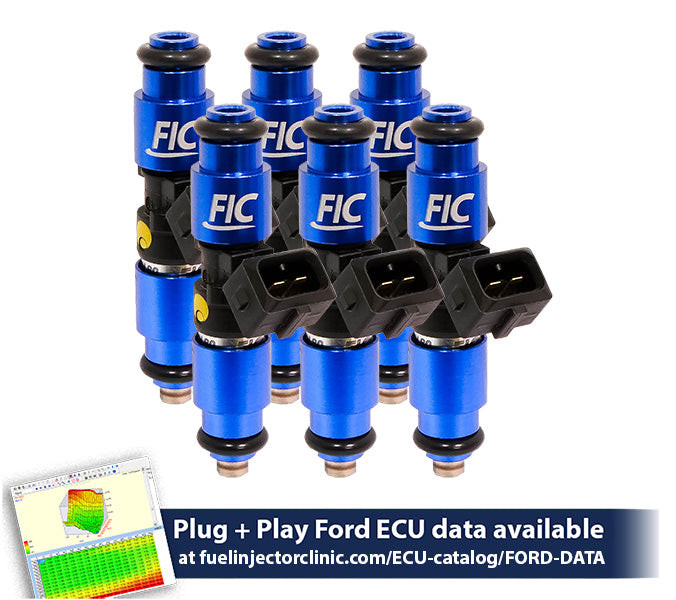

Fuel Injector Clinic 1200cc High-Z Fuel Injector Set (IS411-1200H) - 2002-2010 Ford Falcon XR6T BA/BF
Upgrade the fuel system in your Ford Falcon XR6T with a proven High-Z injector package that delivers substantially more fuel capacity while retaining the precise control needed for a responsive, properly tuned performance engine. The Fuel Injector Clinic IS411-1200H is a complete set of six 1200cc/min saturated, high-impedance ball-and-seat injectors for the 2002-2010 Ford Falcon XR6T BA/BF. Rated at 110 lbs/hr at 43.5 psi (3 Bar), these injectors combine serious fueling capability with excellent linearity and short pulse width repeatability for predictable tuning and strong drivability.
Each IS411-1200H set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Every injector is individually serial numbered, with its results documented on the supplied Data Match Sheet to provide detailed flow matching and latency information. FIC flow tests and rates these injectors at 43.5 psi (3 Bar) and 90 degrees F fuel temperature using CF-16B calibration fluid. For the listed factory application, the IS411-1200H features easy drop-in fitment with a factory-style electrical connector, so no injector plug conversion is required. Plug-and-play Ford ECU data is also available from Fuel Injector Clinic.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: IS411-1200H
- Application: 2002-2010 Ford Falcon XR6T BA/BF
- Injector Quantity: Set of 6
- Flow Rate: 1200cc/min
- Flow Rate at 43.5 psi: 110 lbs/hr
- Rated Fuel Pressure: 43.5 psi / 3 Bar
- Impedance: High impedance / High-Z
- Injector Type: Saturated ball-and-seat
- Installation: Drop-in for the listed factory application
- Connector: Factory-style connector
- Plug Conversion: Not required for the listed factory application
- Matching: Fuel Injector Clinic Data Match Technology
- Injector Identification: Each injector individually serial numbered
- Included Documentation: Data Match Sheet with flow matching and latency information
- Flow Test Pressure: 43.5 psi / 3 Bar
- Flow Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- ECU Data: Plug-and-play Ford ECU data available from Fuel Injector Clinic
- O-Rings: Includes O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Complete set of six 1200cc/min performance fuel injectors
- 110 lbs/hr flow rating at 43.5 psi (3 Bar)
- Saturated, high-impedance High-Z injector design
- Ball-and-seat injector construction
- Excellent injector linearity
- Superior short pulse width control and repeatability
- Designed for predictable tuning and strong drivability
- Precisely matched using Fuel Injector Clinic Data Match Technology
- Each injector individually serial numbered
- Includes Data Match Sheet with detailed flow matching and latency information
- Flow tested at 43.5 psi (3 Bar) and 90 degrees F
- Tested using CF-16B calibration fluid
- Drop-in fitment for the listed factory application
- Factory-style electrical connector
- No injector plug conversion required for the listed factory application
- Plug-and-play Ford ECU data available from Fuel Injector Clinic
- Includes O-rings required for the listed factory application
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
1200cc Fueling for Modified Falcon XR6T Builds
The IS411-1200H gives modified Falcon XR6T owners a substantial increase in injector capacity while retaining the control characteristics needed for a properly calibrated street or performance engine. Each injector delivers 1200cc/min, or 110 lbs/hr, at 43.5 psi (3 Bar). That additional capacity provides room for performance combinations with increased fuel demand while the High-Z design, excellent linearity, and repeatable injector behavior help tuners maintain precise control across the engine's operating range.
Fuel Injector Clinic Data Match Technology
Consistent fuel delivery across all six cylinders is critical as boost and engine output increase. Fuel Injector Clinic precisely matches the IS411-1200H set using its proprietary Data Match Technology rather than relying solely on the injectors' nominal flow rating. Every injector is individually serial numbered, and its results are documented on the included Data Match Sheet with detailed flow matching and latency information. This gives tuners useful data about the actual injector set installed in the engine and helps support consistent cylinder-to-cylinder fueling.
Short Pulse Width Control and Drivability
Maximum injector capacity is only part of the equation on a street-driven turbocharged engine. During idle, cruising, and light-load operation, the ECU commands much shorter injector pulse widths. Fuel Injector Clinic combines excellent linearity with superior short pulse width control and repeatability to provide predictable injector behavior during these conditions. With proper calibration, the IS411-1200H can provide the increased fuel capacity required by a modified XR6T without sacrificing the drivability expected when the car is not operating under full boost.
Drop-In Fitment with Factory-Style Connector
The IS411-1200H is designed for straightforward installation in the listed Falcon XR6T BA/BF application. Fuel Injector Clinic specifies this set as a drop-in fitment using a factory-style electrical connector, so no injector plug conversion is required for the listed factory configuration. The injectors also include the O-rings needed for the factory application. If your Falcon uses an aftermarket fuel rail, intake, or another non-standard fuel system configuration, verify injector compatibility before ordering.
Flow Tested for Accurate Calibration
Fuel Injector Clinic flow tests and rates the IS411-1200H injectors at 43.5 psi (3 Bar) and 90 degrees F fuel temperature using CF-16B calibration fluid. Combined with Data Match Technology, individual serial numbering, and the supplied flow matching and latency information, this provides tuners with valuable injector data for calibration. Plug-and-play Ford ECU data is also available from Fuel Injector Clinic.
Fitment
- 2002 Ford Falcon XR6T BA/BF
- 2003 Ford Falcon XR6T BA/BF
- 2004 Ford Falcon XR6T BA/BF
- 2005 Ford Falcon XR6T BA/BF
- 2006 Ford Falcon XR6T BA/BF
- 2007 Ford Falcon XR6T BA/BF
- 2008 Ford Falcon XR6T BA/BF
- 2009 Ford Falcon XR6T BA/BF
- 2010 Ford Falcon XR6T BA/BF
FAQs
How much do the FIC IS411-1200H injectors flow?
The Fuel Injector Clinic IS411-1200H injectors flow 1200cc/min, or 110 lbs/hr, at 43.5 psi (3 Bar) fuel pressure. The set contains six saturated, high-impedance ball-and-seat injectors precisely matched using Fuel Injector Clinic Data Match Technology.
Do the IS411-1200H injectors require a plug conversion on the Falcon XR6T BA/BF?
No. Fuel Injector Clinic specifies the IS411-1200H as a drop-in injector set with a factory-style connector for the listed Falcon XR6T BA/BF application, so no injector plug conversion is required. Compatibility should be confirmed separately if the vehicle uses an aftermarket or otherwise non-standard fuel system configuration.
Upgrade Your Falcon XR6T with Beefcake Racing
Whether you're upgrading a responsive street-driven XR6T or building a higher-output turbo combination, Beefcake Racing can help you select the right Fuel Injector Clinic injectors and supporting fuel system components for your setup. Call 1-855-827-7223 or email sales@beefcakeracing.com for expert assistance.
