Fuel Injector Clinic 2150cc High-Z Injector Set (is409-2150h) - 2017-2019 Ford Raptor

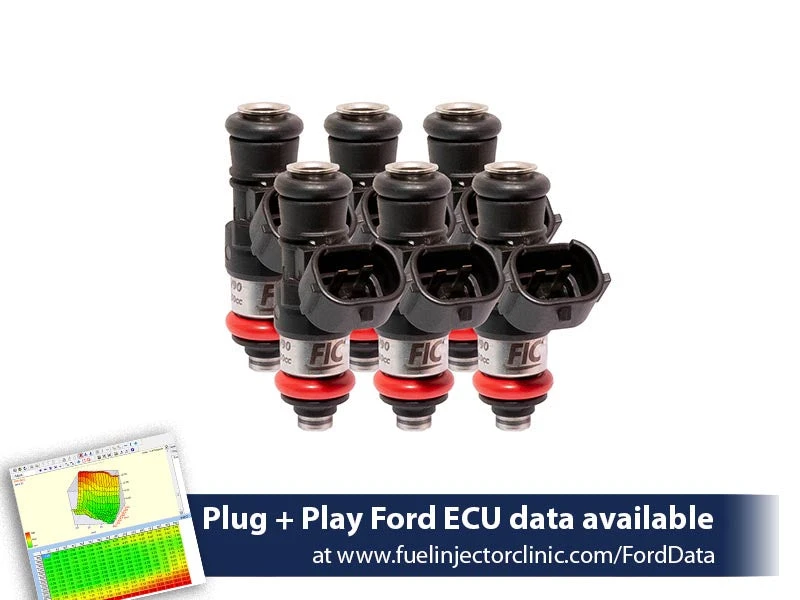

Feed a serious 2017-2019 Ford Raptor build with the massive fuel capacity of the Fuel Injector Clinic 2150cc High-Z injector set. This matched set of six performance injectors flows 2150cc/min, or 200 lbs/hr, at 43.5 PSI fuel pressure, providing the fuel delivery needed for demanding high-horsepower combinations. Despite their substantial flow capacity, these saturated high-impedance ball and seat injectors are engineered for excellent linearity and short pulse width repeatability, giving your tuner the precise injector behavior needed to build a strong, drivable calibration.
The is409-2150h is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered, with detailed flow matching and latency information supplied on the Data Match Sheet. FIC flow tests and rates these injectors at 43.5 PSI / 3 Bar and 90 degrees F fuel temperature using CF-16B calibration fluid. The set includes PGTDEN6 pigtails for the required injector plug conversion, or optional PADPDtoU6 plug-and-play adapters can be selected to connect the injectors without cutting or soldering the factory wiring harness.
Specifications
- Part Number: is409-2150h
- Injector Quantity: 6
- Flow Rate: 2150cc/min
- Flow Rate at 43.5 PSI: 200 lbs/hr
- Fuel Pressure Rating: 43.5 PSI / 3 Bar
- Impedance: High impedance / saturated
- Injector Design: Ball and seat
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Included Pigtails: PGTDEN6
- Optional Plug-and-Play Adapters: PADPDtoU6
- Calibration Fluid: CF-16B
- Test Fuel Temperature: 90 degrees F
- O-Rings: Includes O-rings required for the factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Complete matched set of six 2150cc/min performance fuel injectors
- 200 lbs/hr flow rating at 43.5 PSI fuel pressure
- Massive fuel capacity for demanding high-horsepower Raptor builds
- Saturated high-impedance ball and seat injector construction
- Excellent linearity for predictable injector behavior
- Superior short pulse width control and repeatability
- Precisely matched using Fuel Injector Clinic Data Match Technology
- Each injector is individually serial numbered
- Data Match Sheet provides detailed flow matching and latency information
- Includes PGTDEN6 solder-in injector pigtails
- Optional PADPDtoU6 adapters provide a plug-and-play connection to the stock harness
- Flow tested and rated at 43.5 PSI / 3 Bar
- Tested at 90 degrees F fuel temperature using CF-16B calibration fluid
- Includes O-rings required for the factory application
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Designed for precise tuning and strong drivability despite the extremely high flow capacity
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
2150cc Fuel Capacity for Serious Raptor Builds
When a Raptor build reaches the point where fuel demand becomes extreme, injector capacity cannot be an afterthought. With 2150cc/min of flow per injector, the FIC is409-2150h provides substantial fueling headroom for demanding performance combinations. Just as importantly, Fuel Injector Clinic engineers these high-flow injectors to retain the controllability required outside of wide-open throttle, making them a performance-focused solution rather than simply a large injector with a big flow number.
Data Match Technology for High-Flow Precision
Injector consistency becomes even more important as flow capacity increases. Fuel Injector Clinic precisely matches each is409-2150h set using proprietary Data Match Technology. Every injector is individually serial numbered, and detailed flow matching and latency results are supplied on the Data Match Sheet. This gives your tuner valuable injector-specific information for accurate calibration and consistent cylinder-to-cylinder fuel delivery.
Short Pulse Width Control and Drivability
A 2150cc injector must still accurately meter small quantities of fuel during idle, cruising, and light-throttle operation. Fuel Injector Clinic combines the is409-2150h's massive flow capability with excellent linearity and superior short pulse width repeatability. This helps provide the predictable injector response needed for accurate tuning and strong drivability across a much broader operating range than maximum flow alone would suggest.
Pigtails Included with Plug-and-Play Adapter Option
The is409-2150h requires an injector connector change when installed using the supplied PGTDEN6 pigtails. The included pigtails can be soldered into the vehicle wiring harness to replace the existing injector plugs. For owners who do not want to cut or solder the factory harness, optional PADPDtoU6 plug-and-play adapters can be selected to connect the injectors to the stock harness without permanent wiring modifications.
Fuel Injector Clinic chooses to use brand-new, unused injectors for its performance applications instead of relying on remanufactured or core-program injectors. The required connector conversion allows FIC to maintain this approach while providing the high-flow injector technology required for demanding performance applications.
Fitment
- 2017 Ford Raptor
- 2018 Ford Raptor
- 2019 Ford Raptor
Fitment Note: This injector set is designed for the title-listed 2017-2019 Ford Raptor application. If your truck uses aftermarket fuel rails or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
FAQs
Do the FIC is409-2150h injectors require a plug conversion?
Yes. The set includes PGTDEN6 pigtails that can be soldered into the vehicle wiring harness to replace the existing injector plugs. If you prefer not to cut or solder the factory harness, optional PADPDtoU6 plug-and-play adapters can be selected instead.
How much do the FIC is409-2150h injectors flow?
The is409-2150h injectors are rated at 2150cc/min, or 200 lbs/hr, at 43.5 PSI / 3 Bar fuel pressure. Fuel Injector Clinic flow tests and rates the injectors at 90 degrees F fuel temperature using CF-16B calibration fluid.
Why Buy from Beefcake Racing?
Beefcake Racing specializes in Ford performance and the fuel-system components required to support everything from modified street trucks to serious high-horsepower builds. At the 2150cc injector level, selecting the correct injectors and supporting fuel-system components is especially important for reliable fuel delivery, accurate tuning, and drivability. Our experienced team can help you select the right combination for your Raptor's engine setup and performance goals.
Questions about Fuel Injector Clinic part number is409-2150h or your Ford Raptor fuel system? Email Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
