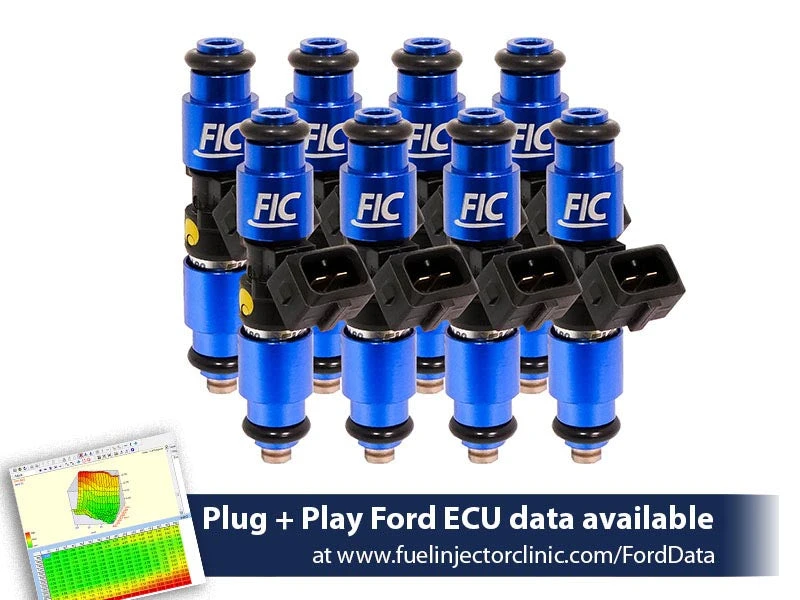

Fuel Injector Clinic 1200cc High-Z Injector Set (is408-1200h) - 2010-2014 Ford Raptor
Give your 2010-2014 Ford Raptor the fuel delivery needed for a serious performance build with the Fuel Injector Clinic 1200cc High-Z injector set. This matched set of eight injectors flows 1200cc/min, or 110 lbs/hr, at 43.5 PSI fuel pressure, providing substantial fueling capacity while maintaining the precise control required for strong drivability. High-impedance ball and seat construction, excellent linearity, and superior short pulse width repeatability help deliver predictable fueling from idle and part throttle through demanding high-load operation.
The is408-1200h is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered, with detailed flow matching and latency information supplied on the Data Match Sheet. The set includes PGTJETR8 pigtails for the required injector plug conversion, or optional PADPJtoU8 plug-and-play adapters can be added for installation without cutting or soldering the factory harness. FIC flow tests and rates these injectors at 43.5 PSI / 3 Bar and 90 degrees F fuel temperature using CF-16B calibration fluid. Plug-and-play Ford ECU data is also available from Fuel Injector Clinic. This injector set was previously sold under part number is408-1100h.
Specifications
- Part Number: is408-1200h
- Previous Part Number: is408-1100h
- Injector Quantity: 8
- Flow Rate: 1200cc/min
- Flow Rate at 43.5 PSI: 110 lbs/hr
- Fuel Pressure Rating: 43.5 PSI / 3 Bar
- Impedance: High impedance / saturated
- Injector Design: Ball and seat
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Included Pigtails: PGTJETR8
- Optional Plug-and-Play Adapters: PADPJtoU8
- Calibration Fluid: CF-16B
- Test Fuel Temperature: 90 degrees F
- ECU Data: Plug-and-play Ford ECU data available from Fuel Injector Clinic
- O-Rings: Includes O-rings required for the factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Complete matched set of eight 1200cc/min performance fuel injectors
- 110 lbs/hr flow rating at 43.5 PSI fuel pressure
- Saturated high-impedance ball and seat injector design
- Substantial fuel capacity for modified and high-horsepower Ford Raptor builds
- Excellent linearity for predictable fuel delivery
- Superior short pulse width control and repeatability
- Precisely matched using Fuel Injector Clinic Data Match Technology
- Each injector is individually serial numbered
- Data Match Sheet provides detailed flow matching and latency information
- Includes PGTJETR8 injector wiring pigtails
- Optional PADPJtoU8 adapters provide a plug-and-play electrical connection
- Flow tested and rated at 43.5 PSI / 3 Bar
- Tested at 90 degrees F fuel temperature using CF-16B calibration fluid
- Plug-and-play Ford ECU calibration data available from Fuel Injector Clinic
- Includes O-rings required for the factory application
- Designed for excellent tunability and drivability
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
1200cc Fuel Capacity with Precise Low-Speed Control
High-horsepower builds demand additional fuel, but maximum injector flow is only part of the equation. Accurate fuel delivery during idle, cruising, and throttle transitions remains critical to drivability and calibration quality. The FIC 1200cc injector combines substantial fuel capacity with excellent linearity and superior short pulse width control, helping the ECU accurately meter fuel across a wide operating range while providing the additional volume needed as engine load and power increase.
Data Match Technology for Accurate Tuning
Consistent injector performance across all eight cylinders is critical to a properly calibrated performance engine. Fuel Injector Clinic precisely matches each is408-1200h set using proprietary Data Match Technology. Every injector is individually serial numbered, and detailed flow matching and latency results are supplied on the Data Match Sheet. This provides your tuner with valuable injector-specific information to help achieve accurate calibration and consistent cylinder-to-cylinder fuel delivery.
Tested for Predictable Performance
Fuel Injector Clinic flow tests and rates the is408-1200h injectors at 43.5 PSI / 3 Bar and 90 degrees F fuel temperature using CF-16B calibration fluid. Combined with state-of-the-art matching and excellent short pulse width control, this controlled testing provides the predictable injector behavior needed for easier tuning and strong drivability. Plug-and-play Ford ECU data is also available from Fuel Injector Clinic to further support the calibration process.
Pigtails Included with Plug-and-Play Adapter Option
The is408-1200h requires an injector plug change when installed with the supplied PGTJETR8 pigtails. The included pigtails can be soldered into the vehicle wiring harness to replace the existing injector plugs. For owners who prefer not to cut or solder the factory harness, optional PADPJtoU8 plug-and-play adapters can be added to connect the injectors without permanent wiring modifications.
Fuel Injector Clinic uses brand-new, unused injectors for its performance applications rather than relying on remanufactured or core-program injectors. The required connector conversion allows FIC to maintain that approach while providing the injector technology and performance characteristics specified for this application.
Fitment
- 2010 Ford F-150 Raptor
- 2011 Ford F-150 Raptor
- 2012 Ford F-150 Raptor
- 2013 Ford F-150 Raptor
- 2014 Ford F-150 Raptor
Fitment Note: This injector set is designed for the title-listed 2010-2014 Ford Raptor application. If your truck uses aftermarket fuel rails or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
FAQs
Do the FIC is408-1200h injectors require a plug conversion?
Yes. The set includes PGTJETR8 pigtails that can be soldered into the vehicle wiring harness to replace the existing injector plugs. If you prefer a no-cut installation, optional PADPJtoU8 plug-and-play adapters can be added to connect the injectors to the factory harness.
Is is408-1200h the replacement for the older FIC is408-1100h injector set?
Yes. Fuel Injector Clinic identifies the current 1200cc is408-1200h injector set as previously is408-1100h. The current part number is is408-1200h and provides a rated flow of 1200cc/min, or 110 lbs/hr, at 43.5 PSI fuel pressure.
Why Buy from Beefcake Racing?
Beefcake Racing specializes in Ford performance and the fuel-system components required to support everything from modified street trucks to serious high-horsepower builds. Selecting the correct injector size and supporting fuel-system components is critical to reliable fuel delivery, accurate tuning, and strong drivability. Our experienced team can help you choose the right combination for your Raptor's engine setup and performance goals.
Questions about Fuel Injector Clinic part number is408-1200h or your Ford Raptor fuel system? Email Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
