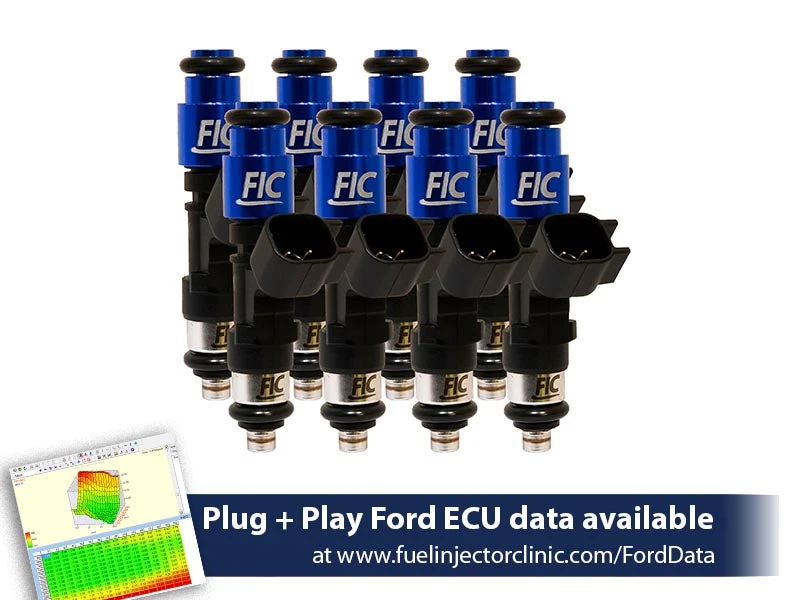

Fuel Injector Clinic 1000cc High-Z Injector Set (is408-1000h) - 2010-2014 Ford Raptor
Give your 2010-2014 Ford Raptor the fuel capacity needed for serious performance upgrades with the Fuel Injector Clinic 1000cc High-Z injector set. This matched set of eight injectors flows 1000cc/min, or 95 lbs/hr, at 43.5 PSI fuel pressure, delivering substantially greater fueling capability for modified Raptor combinations while maintaining the precise injector control needed for drivability. Excellent linearity and short pulse width repeatability help provide predictable fueling from idle and part throttle through high-load operation, making the is408-1000h a strong foundation for a properly calibrated high-performance fuel system.
Installation is straightforward thanks to plug-and-play compatibility with the OEM wiring harness. Each is408-1000h set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology, and every injector is individually serial numbered with detailed flow matching and latency results supplied on the Data Match Sheet. FIC flow tests and rates these injectors at 43.5 PSI / 3 Bar and 90 degrees F fuel temperature using CF-16B calibration fluid. Plug-and-play Ford ECU data is also available from Fuel Injector Clinic to support accurate calibration.
Specifications
- Part Number: is408-1000h
- Injector Quantity: 8
- Flow Rate: 1000cc/min
- Flow Rate at 43.5 PSI: 95 lbs/hr
- Fuel Pressure Rating: 43.5 PSI / 3 Bar
- Impedance: High impedance / saturated
- Injector Design: Ball and seat
- Electrical Connection: Plug-and-play fit to OEM harness
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Calibration Fluid: CF-16B
- Test Fuel Temperature: 90 degrees F
- ECU Data: Plug-and-play Ford ECU data available from Fuel Injector Clinic
- O-Rings: Includes O-rings required for the factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Eight 1000cc/min High-Z performance fuel injectors
- 95 lbs/hr flow rating at 43.5 PSI fuel pressure
- High-impedance saturated ball and seat injector design
- Increased fuel capacity for modified and high-performance Ford Raptor builds
- Excellent linearity throughout the injector operating range
- Superior short pulse width control and repeatability
- Plug-and-play fit to the OEM wiring harness
- No injector plug conversion required
- Precisely matched using Fuel Injector Clinic Data Match Technology
- Each injector is individually serial numbered
- Data Match Sheet provides detailed flow matching and latency information
- Flow tested and rated at 43.5 PSI / 3 Bar
- Tested at 90 degrees F fuel temperature using CF-16B calibration fluid
- Plug-and-play Ford ECU calibration data available from Fuel Injector Clinic
- Includes O-rings required for the factory application
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
1000cc Fuel Capacity for Performance Raptor Builds
Increasing airflow and horsepower places greater demands on the Raptor's fuel system, and adequate injector capacity is critical to maintaining proper fueling under load. The FIC is408-1000h delivers 1000cc/min of flow per injector, providing substantially increased fuel delivery capability for modified 2010-2014 Raptors while retaining the accurate injector behavior needed for a properly calibrated performance combination.
Data Match Technology for Precise Tuning
Injector consistency across all eight cylinders is critical when building and tuning a high-performance engine. Fuel Injector Clinic precisely matches each is408-1000h set using proprietary Data Match Technology. Every injector is individually serial numbered, and detailed flow matching and latency results are supplied on the Data Match Sheet. This gives your tuner accurate injector-specific information for consistent cylinder-to-cylinder fueling and precise calibration throughout the operating range.
High Flow Without Sacrificing Drivability
A performance injector needs to deliver substantial fuel volume under heavy load while remaining controllable when the engine requires much smaller amounts of fuel. Fuel Injector Clinic combines 1000cc/min capacity with excellent linearity and superior short pulse width control, helping the ECU accurately meter fuel during idle, cruising, and part-throttle operation. This balance of capacity and control makes the is408-1000h well suited to Raptors that need serious fueling capability without making street drivability an afterthought.
Plug-and-Play OEM Harness Installation
The is408-1000h is designed to connect directly to the OEM injector harness for the listed Raptor application. No injector plug conversion is required, eliminating the need for solder-in pigtails or electrical adapters and keeping installation clean and straightforward. Fuel Injector Clinic also supplies the O-rings required for the factory application, while available plug-and-play Ford ECU data provides valuable calibration information for your tuner.
Fitment
- 2010 Ford F-150 Raptor
- 2011 Ford F-150 Raptor
- 2012 Ford F-150 Raptor
- 2013 Ford F-150 Raptor
- 2014 Ford F-150 Raptor
Fitment Note: This injector set is designed for the title-listed 2010-2014 Ford Raptor application. If your truck uses aftermarket fuel rails or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
FAQs
Does the Fuel Injector Clinic is408-1000h require an injector plug conversion?
No. The is408-1000h is designed for plug-and-play compatibility with the OEM injector wiring harness on the listed 2010-2014 Ford Raptor application, so no injector plug conversion is required.
How are the FIC is408-1000h 1000cc injectors matched?
Fuel Injector Clinic precisely matches each set using proprietary Data Match Technology. Every injector is individually serial numbered, with detailed flow matching and latency results supplied on the Data Match Sheet to provide accurate information for calibration.
Why Buy from Beefcake Racing?
Beefcake Racing specializes in Ford performance and high-performance fuel-system upgrades for builds ranging from street-driven trucks to serious high-horsepower combinations. When upgrading your Raptor's fuel system, choosing the correct injector size and supporting components is critical to performance and tunability. Our experienced team can help you match your injectors and supporting fuel-system components to your engine setup and performance goals.
Questions about Fuel Injector Clinic part number is408-1000h or your Ford Raptor fuel system? Email Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
