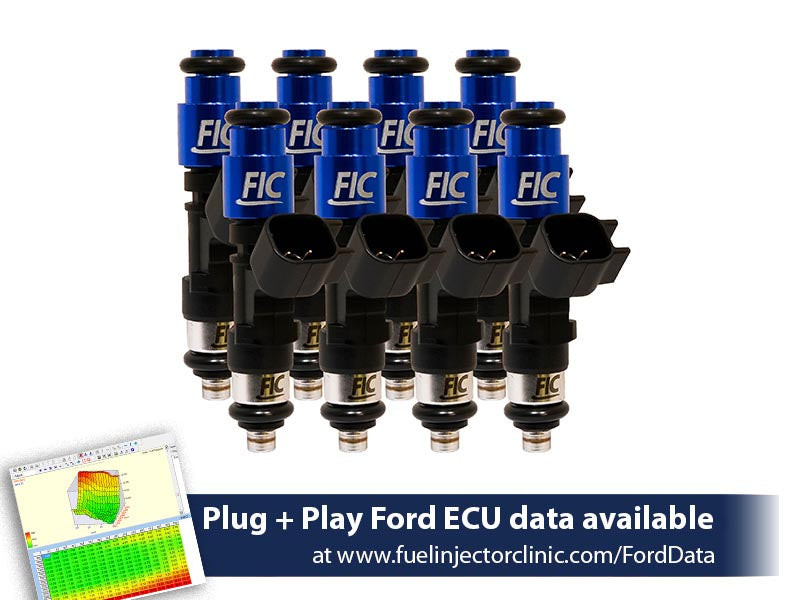

Fuel Injector Clinic 650cc High-Z Injector Set (is406-0650h) - 1985-2003 Ford F-150 / 1993-1995 Lightning
Bring modern fuel delivery and serious performance capability to your 1985-2003 Ford F-150 or 1993-1995 Ford Lightning with the Fuel Injector Clinic 650cc High-Z injector set. This matched set of eight injectors flows 650cc/min, or 62 lbs/hr, at 43.5 PSI fuel pressure, giving modified and boosted Ford truck combinations substantially more fuel capacity while maintaining the precise control required for responsive street performance. Excellent linearity and short pulse width repeatability help provide predictable fueling across the operating range, making the is406-0650h a strong foundation for a properly tuned high-performance fuel system.
Every is406-0650h set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered, with detailed flow matching and latency information provided on the included Data Match Sheet. FIC flow tests and rates these injectors at 43.5 PSI / 3 Bar and 90 degrees F fuel temperature using CF-16B calibration fluid. PGTUSC8 solder-in pigtails are included for the required injector plug conversion, while optional PADPUtoJ8 plug-and-play adapters allow installation without cutting or soldering the factory harness. Plug-and-play Ford ECU data is also available from Fuel Injector Clinic for tuning.
Specifications
- Part Number: is406-0650h
- Injector Quantity: 8
- Flow Rate: 650cc/min
- Flow Rate at 43.5 PSI: 62 lbs/hr
- Fuel Pressure Rating: 43.5 PSI / 3 Bar
- Impedance: High impedance / saturated
- Injector Design: Ball and seat
- Included Connector Solution: PGTUSC8 solder-in pigtails
- Optional Connector Solution: PADPUtoJ8 plug-and-play adapters
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Calibration Fluid: CF-16B
- Test Fuel Temperature: 90 degrees F
- ECU Data: Plug-and-play Ford ECU data available from Fuel Injector Clinic
- O-Rings: Includes O-rings required for the applicable factory configuration
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Eight 650cc/min High-Z performance fuel injectors
- 62 lbs/hr flow rating at 43.5 PSI fuel pressure
- High-impedance saturated ball and seat injector design
- Excellent linearity throughout the injector operating range
- Superior short pulse width control and repeatability
- Precisely matched using Fuel Injector Clinic Data Match Technology
- Each injector is individually serial numbered
- Detailed Data Match Sheet provides flow matching and latency information
- Flow tested and rated at 43.5 PSI / 3 Bar
- Tested at 90 degrees F fuel temperature using CF-16B calibration fluid
- Includes PGTUSC8 solder-in pigtails for injector plug conversion
- Optional PADPUtoJ8 plug-and-play adapters eliminate cutting or soldering the factory harness
- Plug-and-play Ford ECU calibration data available from Fuel Injector Clinic
- Includes O-rings required for the applicable factory configuration
- Uses brand-new injectors rather than remanufactured or core-program injectors
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
Modern 650cc Fueling for Classic Ford Trucks
Older Ford F-150 and first-generation Lightning builds can quickly outgrow their original fuel delivery capability as airflow, boost, and horsepower increase. The FIC 650cc injector brings modern high-impedance injector technology to these applications, providing substantially increased fuel capacity along with the accurate low-pulse-width behavior required for proper calibration. Whether the truck is naturally aspirated, supercharged, turbocharged, or otherwise modified, accurate injector control is essential to getting the most from the combination.
Data Match Technology for Precise Tuning
Consistent fuel delivery across all eight cylinders is critical in a performance engine. Fuel Injector Clinic precisely matches each is406-0650h set using proprietary Data Match Technology. Every injector is individually serial numbered, and detailed flow matching and latency results are supplied on the Data Match Sheet. This provides your tuner with accurate injector information for consistent cylinder-to-cylinder fueling and precise calibration throughout the operating range.
High Flow with Street-Friendly Control
Increasing injector size should not mean giving up drivability. The FIC 650cc High-Z injector combines increased fuel capacity with excellent linearity and superior short pulse width control, helping the ECU accurately meter fuel during idle, cruising, and part-throttle operation while delivering the additional volume required under higher engine loads. For street-driven performance trucks, that balance between capacity and control can be just as important as maximum injector flow.
Connector Options for a Clean Installation
The is406-0650h uses a different injector connector than the original wiring harness, so a plug conversion is required. Fuel Injector Clinic includes PGTUSC8 solder-in pigtails that can be installed in place of the original injector plugs. For owners who prefer not to cut or solder the factory harness, optional PADPUtoJ8 plug-and-play adapters provide a direct conversion between the injector and existing harness connectors.
Fuel Injector Clinic uses brand-new, unused injectors for its performance applications rather than relying on remanufactured or core-program injectors. This approach eliminates the additional uncertainty associated with previously used injector components in a performance fuel system.
Fitment
- 1985 Ford F-150
- 1986 Ford F-150
- 1987 Ford F-150
- 1988 Ford F-150
- 1989 Ford F-150
- 1990 Ford F-150
- 1991 Ford F-150
- 1992 Ford F-150
- 1993 Ford F-150
- 1994 Ford F-150
- 1995 Ford F-150
- 1996 Ford F-150
- 1997 Ford F-150
- 1998 Ford F-150
- 1999 Ford F-150
- 2000 Ford F-150
- 2001 Ford F-150
- 2002 Ford F-150
- 2003 Ford F-150
- 1993 Ford F-150 Lightning
- 1994 Ford F-150 Lightning
- 1995 Ford F-150 Lightning
Fitment Note: This listing follows Fuel Injector Clinic's application designation for 1985-2003 Ford F-150 and 1993-1995 Ford Lightning models. If your truck uses aftermarket fuel rails or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
FAQs
Does the Fuel Injector Clinic is406-0650h require an injector plug conversion?
Yes. The set includes PGTUSC8 solder-in pigtails for converting the factory wiring harness to the injector connectors. Optional PADPUtoJ8 plug-and-play adapters are available if you prefer to make the connection without cutting or soldering the factory harness.
How are the FIC is406-0650h 650cc injectors matched?
Fuel Injector Clinic precisely matches the set using its proprietary Data Match Technology. Each injector is individually serial numbered, and detailed flow matching and latency results are supplied on the Data Match Sheet to provide accurate injector information for tuning.
