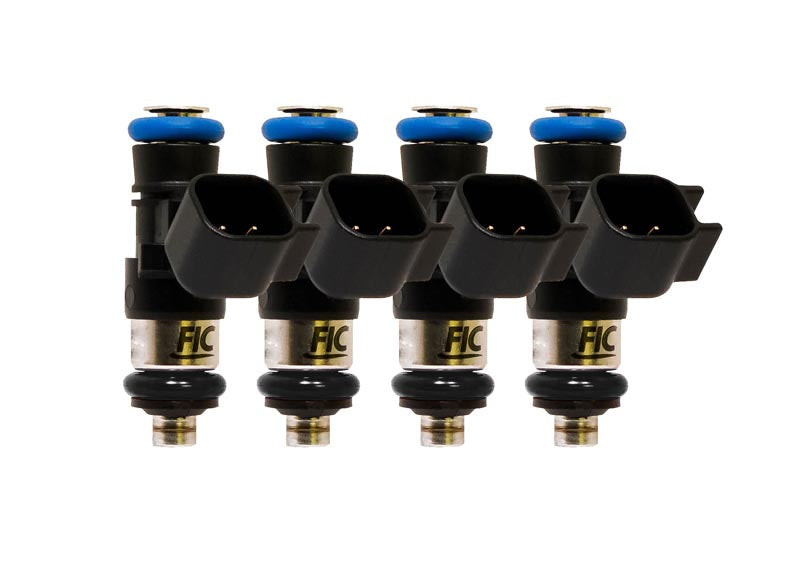

Fuel Injector Clinic 540cc Fuel Injector Set - High Z (2015 - 2024 Volkswagen Golf MK7 / MK8) IS360-0540H
Upgrade the supplemental fuel system on your 2015-2024 Volkswagen Golf MK7 or MK8 with the Fuel Injector Clinic 540cc High-Z Fuel Injector Set. Designed for applications using a compatible aftermarket intake manifold or port injection kit, the IS360-0540H includes four 540cc high impedance ball and seat injectors engineered for excellent linearity, short pulse width repeatability, and consistent fuel delivery. For modified Golf builds adding port injection, these injectors provide the precise control and dependable performance needed to make the most of a properly designed and calibrated supplemental fueling system.
Every IS360-0540H injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency value information to support accurate calibration. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) with fuel at 90 degrees F using calibration fluid. The set includes PGTUSC4 pigtails, with optional PADPUtoJ4 plug-and-play adapters available, along with the O-rings required for the listed application. Every injector is backed by Fuel Injector Clinic's lifetime warranty against failure caused by defects in original manufacture.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: IS360-0540H
- Flow Rate: 540cc/min
- Quantity: Set of 4 injectors
- Impedance: High-Z / High Impedance
- Injector Type: Ball and seat
- Application: Aftermarket intake manifold or port injection kit
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Injector Identification: Individually serial numbered
- Injector Data: Data Match Sheet included
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Flow Test Fuel Temperature: 90 degrees F
- Included Wiring: PGTUSC4 solder-in pigtails
- Optional Wiring Adapters: PADPUtoJ4 plug-and-play adapters
- O-Rings: Includes O-rings required for the listed application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four 540cc high impedance ball and seat fuel injectors
- Designed for Volkswagen Golf MK7 and MK8 applications using a compatible aftermarket intake manifold or port injection kit
- Excellent linearity for consistent and predictable fuel delivery
- Strong short pulse width repeatability for precise injector operation
- Superior short pulse width control supports accurate tuning and excellent drivability
- Precisely matched using Fuel Injector Clinic's proprietary Data Match Technology
- Each injector is individually serial numbered for identification and matching
- Includes a detailed Data Match Sheet with flow matching and latency value information
- Flow tested and rated at 43.5 PSI (3 Bar) with fuel at 90 degrees F using calibration fluid
- Includes PGTUSC4 pigtails for wiring installation
- Optional PADPUtoJ4 plug-and-play adapters provide an alternative to cutting and soldering wiring
- Includes the O-rings required for the listed application
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Port Injection and Wiring
The IS360-0540H is designed for Volkswagen Golf MK7 and MK8 applications equipped with a compatible aftermarket intake manifold or port injection kit. These injectors are intended for the port injection system and are not replacements for the vehicle's factory direct injectors. The set includes PGTUSC4 pigtails for wiring installation. Optional PADPUtoJ4 plug-and-play adapters are available when a compatible adapter connection is preferred instead of cutting and soldering wiring.
Fuel Injector Clinic supplies the injectors with the O-rings required for the listed application. Because the IS360-0540H is intended for aftermarket intake manifold or port injection configurations, compatibility with the specific port injection hardware being used should be verified before ordering.
Fitment
- 2015 Volkswagen Golf MK7 / MK8 applications with compatible aftermarket intake manifold or port injection kit
- 2016 Volkswagen Golf MK7 / MK8 applications with compatible aftermarket intake manifold or port injection kit
- 2017 Volkswagen Golf MK7 / MK8 applications with compatible aftermarket intake manifold or port injection kit
- 2018 Volkswagen Golf MK7 / MK8 applications with compatible aftermarket intake manifold or port injection kit
- 2019 Volkswagen Golf MK7 / MK8 applications with compatible aftermarket intake manifold or port injection kit
- 2020 Volkswagen Golf MK7 / MK8 applications with compatible aftermarket intake manifold or port injection kit
- 2021 Volkswagen Golf MK7 / MK8 applications with compatible aftermarket intake manifold or port injection kit
- 2022 Volkswagen Golf MK7 / MK8 applications with compatible aftermarket intake manifold or port injection kit
- 2023 Volkswagen Golf MK7 / MK8 applications with compatible aftermarket intake manifold or port injection kit
- 2024 Volkswagen Golf MK7 / MK8 applications with compatible aftermarket intake manifold or port injection kit
FAQs
Are FIC IS360-0540H injectors replacements for the factory Golf MK7 or MK8 direct injectors?
No. The IS360-0540H set is designed for Volkswagen Golf MK7 and MK8 applications using a compatible aftermarket intake manifold or port injection kit. These injectors are intended for the additional port injection system rather than as replacements for the vehicle's factory direct injectors.
What wiring is included with the Fuel Injector Clinic IS360-0540H injector set?
The IS360-0540H includes PGTUSC4 pigtails for wiring installation. Optional PADPUtoJ4 plug-and-play adapters are available for compatible installations where an adapter connection is preferred instead of cutting and soldering the injector wiring.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
A properly designed Golf MK7 or MK8 port injection system depends on the injectors, port injection hardware, fuel delivery system, wiring, and calibration working together as a complete package. Beefcake Racing can help you select the Fuel Injector Clinic injectors and supporting performance components that match your build and performance goals. Have questions about IS360-0540H, port injection compatibility, wiring adapters, or injector fitment? Email sales@beefcakeracing.com or call 1-855-827-7223.
