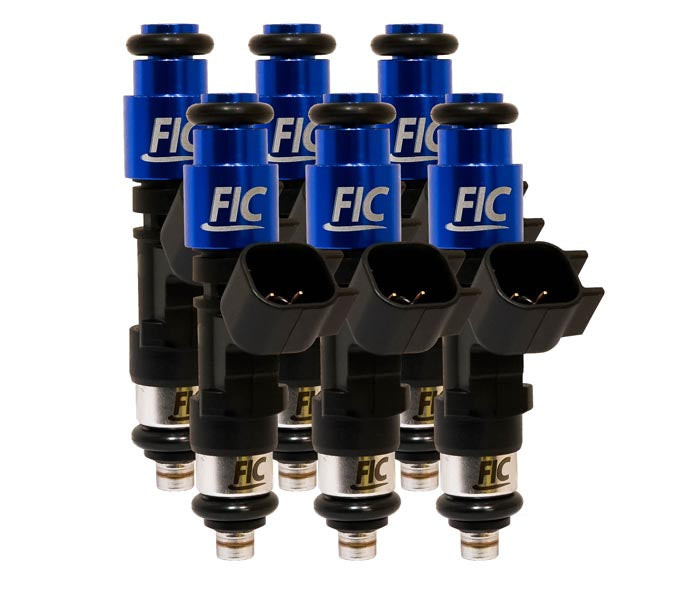

Fuel Injector Clinic 1000cc High Impedance Fuel Injector Set for 1983-1986 Buick Regal T-Type & 1984-1987 Buick Grand National (IS309-1000H)
Upgrade the fuel system in your turbocharged Buick with the Fuel Injector Clinic IS309-1000H 1000cc High Impedance Fuel Injector Set. Designed specifically for the iconic Buick Regal T-Type and Grand National, this matched set of six top-feed injectors provides the fuel capacity needed for high-performance gasoline and E85 combinations while maintaining the excellent drivability, throttle response, and idle quality Fuel Injector Clinic injectors are known for. Whether you're building a powerful street car or a competitive drag car, these injectors deliver the consistency and precision your combination demands.
Utilizing advanced high impedance ball and seat injector technology, the IS309-1000H offers exceptional linearity and superior short pulse width repeatability, making tuning easier across the entire operating range. Every injector is individually serial numbered and precisely matched using Fuel Injector Clinic's proprietary Data Match Technology, with each set including a detailed Data Match Sheet containing injector-specific flow and latency values for highly accurate ECU calibration. This kit includes USCAR injector pigtails (PGTUSC6), while optional Plug and Play adapter harnesses (PADPUtoJ6) are available separately for installations that require no cutting or soldering.
Fuel Injector Clinic utilizes brand-new injectors instead of remanufactured or core-based units, providing greater long-term reliability and eliminating the potential issues commonly associated with rebuilt injectors. Because these injectors use a different connector style than the factory wiring harness, either the included pigtails or optional adapter harnesses must be used during installation.
Quick Specs
- Part Number: IS309-1000H
- Injector Flow Rate: 1000cc/min
- Injector Quantity: 6
- High impedance (saturated) ball and seat injectors
- Top-feed injector design
- Includes USCAR injector pigtails (PGTUSC6)
- Optional Plug and Play adapter harnesses available (PADPUtoJ6)
- Flow matched using Fuel Injector Clinic Data Match Technology
- Each injector individually serial numbered
- Detailed Data Match Sheet with injector-specific flow and latency values included
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees Fahrenheit
- Application-specific O-rings included
- Lifetime warranty against manufacturing defects
Features
- Designed specifically for turbocharged Buick Regal T-Type and Grand National applications
- 1000cc high impedance injectors support demanding street and race combinations
- Includes USCAR injector pigtails for wiring conversion
- Optional Plug and Play adapter harnesses available for a no-cut installation
- Excellent injector linearity for accurate fuel delivery
- Superior short pulse width repeatability improves idle quality and drivability
- Fuel Injector Clinic Data Match Technology delivers industry-leading injector consistency
- Each injector is individually serial numbered with detailed calibration data
- Brand-new injectors eliminate the risks associated with remanufactured cores
- Application-specific O-rings included for proper installation
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
Fitment
- 1983 Buick Regal T-Type
- 1984 Buick Regal T-Type
- 1985 Buick Regal T-Type
- 1986 Buick Regal T-Type
- 1984 Buick Grand National
- 1985 Buick Grand National
- 1986 Buick Grand National
- 1987 Buick Grand National
FAQs
Do these injectors plug directly into the factory wiring harness?
No. The IS309-1000H uses brand-new injectors with a different connector than the factory harness. The included USCAR pigtails can be soldered into your harness, or optional PADPUtoJ6 Plug and Play adapter harnesses can be purchased for a no-cut installation.
Why does Fuel Injector Clinic use new injectors instead of remanufactured cores?
Fuel Injector Clinic believes brand-new injectors provide greater long-term reliability and eliminate the potential failures associated with rebuilt or core-based injectors, making them a better solution for high-performance applications.
