Fuel Injector Clinic 1650cc Fuel Injector Set - High Z (2013-2014 Hyundai Genesis 2.0T) (is191-1650h)

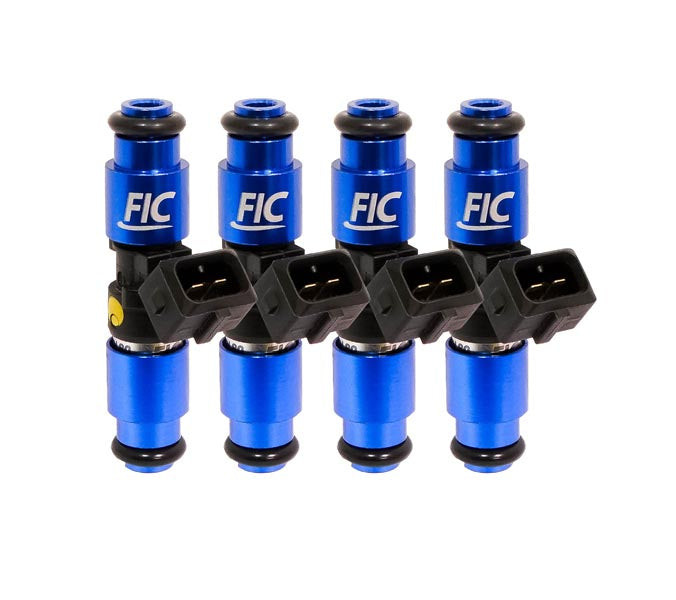

Give your 2013-2014 Hyundai Genesis 2.0T the fuel capacity required for serious power with the Fuel Injector Clinic 1650cc High-Z Fuel Injector Set. Part number is191-1650h includes four 1650cc saturated, high-impedance ball and seat injectors engineered to support high-horsepower combinations while maintaining the precise low-flow control needed for excellent street manners. Fuel Injector Clinic's 1650cc injector combines massive flow capability with excellent idle performance, superior short pulse width control, and advanced Data Match Technology, making it a strong choice for demanding gasoline, E85, and race-fuel builds.
The 1650cc injector uses stainless alloy valve construction that allows compatibility with a broad range of fuels, including pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Fuel Injector Clinic precisely matches each set using its proprietary Data Match Technology. Every injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency information for the specific injectors you receive. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) with fuel temperature maintained at 90 degrees F using CF-16B calibration fluid.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is191-1650h
- Injector Quantity: 4
- Flow Rating: 1650cc/min
- Injector Type: Saturated / high impedance
- Injector Design: Ball and seat
- Valve Construction: Stainless alloy
- Matching: Fuel Injector Clinic Data Match Technology
- Test Pressure: 43.5 PSI (3 Bar)
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Included Wiring: PGTJETR4Q solder-in pigtails
- Optional Wiring Adapter: PADPJtoD4 plug-and-play adapters
- Seals: Includes the O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four 1650cc high-impedance fuel injectors for the 2013-2014 Hyundai Genesis 2.0T
- High-flow design provides substantial fueling capability for high-horsepower applications
- Excellent idle performance makes these injectors suitable for powerful street-driven combinations
- Stainless alloy valve construction supports a broad range of gasoline, ethanol, and race fuels
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Proprietary Data Match Technology provides precise injector set matching
- Each injector is individually serial numbered for identification and documentation
- Includes a Data Match Sheet with detailed flow matching and latency information
- Superior short pulse width control supports accurate low-flow fueling and excellent drivability
- State-of-the-art matching helps provide predictable injector behavior for accurate tuning
- Flow tested and rated at 43.5 PSI (3 Bar) and 90 degrees F fuel temperature
- Testing performed using CF-16B calibration fluid
- Includes PGTJETR4Q solder-in pigtails for the required injector connector conversion
- Optional PADPJtoD4 plug-and-play adapters allow installation without cutting or soldering the factory wiring harness
- Supplied with the O-rings required for the listed factory application
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Wiring and Installation
The is191-1650h injector set requires a change to the injector connectors on the vehicle's wiring harness. PGTJETR4Q pigtails are included and can be soldered into the factory harness to replace the original injector connectors. If you prefer an installation without cutting or soldering the factory wiring, optional PADPJtoD4 plug-and-play adapters can be used to connect the injectors to the original harness.
Fuel Injector Clinic uses brand-new, unused injectors for its performance applications rather than relying on remanufactured or core-program injectors. The injectors are configured with the O-rings required for the listed factory application. If your Hyundai Genesis 2.0T uses an aftermarket fuel rail or another non-standard fuel system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
Fitment
- 2013 Hyundai Genesis 2.0T
- 2014 Hyundai Genesis 2.0T
FAQs
What fuels can the Fuel Injector Clinic is191-1650h injectors be used with?
The stainless alloy valve construction makes these 1650cc injectors compatible with a broad range of fuels. Fuel Injector Clinic specifies compatibility with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels.
Do these 1650cc injectors require changes to the factory Hyundai wiring?
Yes. PGTJETR4Q solder-in pigtails are included for converting the injector connectors. If you prefer not to cut or solder the factory wiring harness, optional PADPJtoD4 plug-and-play adapters can be purchased for the installation.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Beefcake Racing specializes in high-performance fuel system upgrades and can help you choose the right injectors and supporting components for your Hyundai Genesis 2.0T. Whether you need help with injector sizing, fuel compatibility, wiring adapters, or aftermarket fuel system fitment, our performance specialists can help you put together the right combination for your build.
