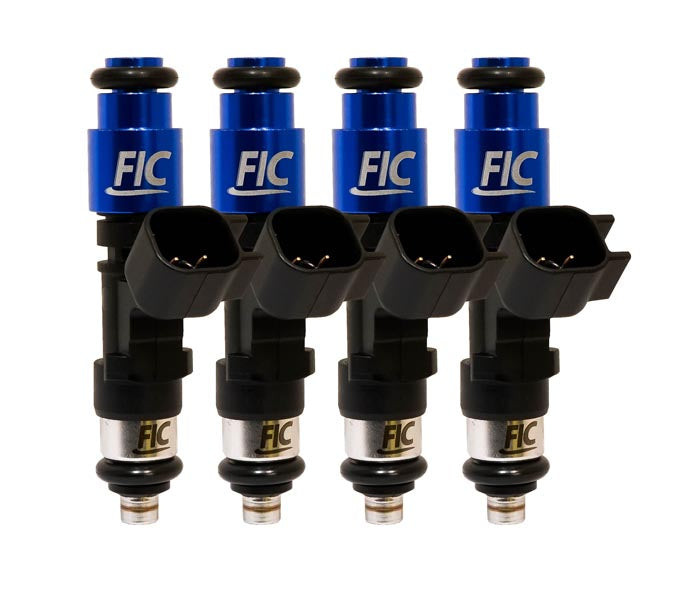

Fuel Injector Clinic 650cc Fuel Injector Set - High Z (2013-2014 Hyundai Genesis 2.0T) (is191-0650h)
Upgrade your 2013-2014 Hyundai Genesis 2.0T with the precise fuel delivery of the Fuel Injector Clinic 650cc High-Z Fuel Injector Set. Part number is191-0650h includes four 650cc modified saturated, high-impedance ball and seat injectors engineered for excellent linearity, repeatable short pulse width operation, and dependable drivability. With increased fueling capability backed by advanced injector matching and detailed characterization, this set gives your tuner the consistency needed to dial in a modified Genesis 2.0T.
Fuel Injector Clinic precisely matches the is191-0650h set using its proprietary Data Match Technology. Each injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency information for the specific injectors in your set. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) with fuel temperature maintained at 90 degrees F using CF-16B calibration fluid. Superior short pulse width control and precise matching help provide predictable injector behavior, accurate calibration, and excellent drivability.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is191-0650h
- Injector Quantity: 4
- Flow Rating: 650cc
- Injector Type: Modified saturated / high impedance
- Injector Design: Ball and seat
- Matching: Fuel Injector Clinic Data Match Technology
- Test Pressure: 43.5 PSI (3 Bar)
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included Wiring: PGTUSC4 solder-in pigtails
- Optional Wiring Adapter: PADPUtoD4 plug-and-play adapters
- Seals: Includes the O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four 650cc high-impedance fuel injectors for the 2013-2014 Hyundai Genesis 2.0T
- Modified saturated, high-impedance ball and seat injector design
- Excellent linearity provides predictable fuel delivery throughout the injector operating range
- Superior short pulse width control supports accurate fueling at idle and part throttle
- Proprietary Data Match Technology provides precise injector set matching
- Each injector is individually serial numbered for identification and documentation
- Includes a Data Match Sheet with detailed flow matching and latency information
- Advanced matching helps provide consistent injector behavior for accurate calibration
- Flow tested and rated at 43.5 PSI (3 Bar) and 90 degrees F fuel temperature
- Testing performed using CF-16B calibration fluid under controlled conditions
- Includes PGTUSC4 solder-in pigtails for the required injector connector conversion
- Optional PADPUtoD4 plug-and-play adapters allow installation without cutting or soldering the factory wiring harness
- Supplied with the O-rings required for the listed factory application
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Wiring and Installation
The is191-0650h injector set requires a change to the injector connectors on the vehicle's wiring harness. PGTUSC4 pigtails are included and can be soldered into the factory harness to replace the original injector connectors. If you prefer an installation without cutting or soldering the factory wiring, optional PADPUtoD4 plug-and-play adapters can be used to connect the injectors to the original harness.
Fuel Injector Clinic uses brand-new, unused injectors for its performance applications rather than relying on remanufactured or core-program injectors. The injectors are configured with the O-rings required for the listed factory application. If your Hyundai Genesis 2.0T uses an aftermarket fuel rail or another non-standard fuel system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
Fitment
- 2013 Hyundai Genesis 2.0T
- 2014 Hyundai Genesis 2.0T
FAQs
What does Data Match Technology provide with the FIC is191-0650h injector set?
Fuel Injector Clinic uses Data Match Technology to precisely match the injectors as a set. Each injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency information for the specific injectors you receive. This data gives your tuner valuable information for accurate calibration and consistent fuel delivery.
Do these 650cc injectors require changes to the factory Hyundai wiring?
Yes. PGTUSC4 solder-in pigtails are included for converting the injector connectors. If you prefer not to cut or solder the factory wiring harness, optional PADPUtoD4 plug-and-play adapters can be purchased for the installation.
