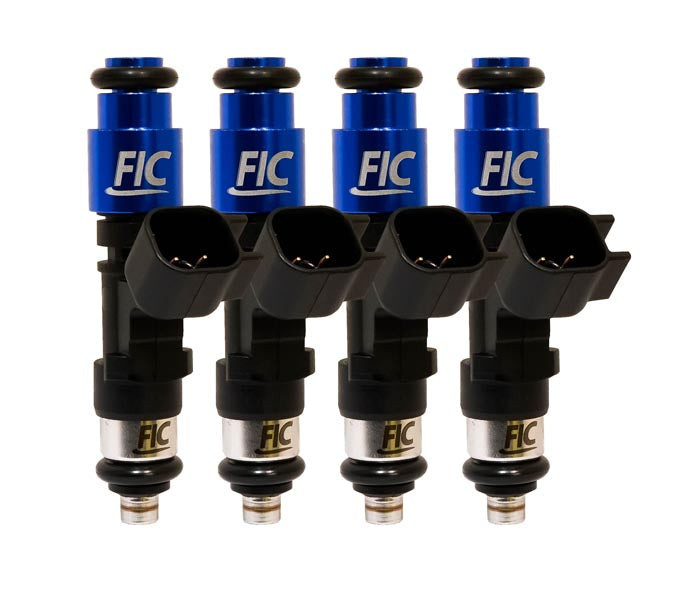

Fuel Injector Clinic 525cc Fuel Injector Set - High Z (2013-2014 Hyundai Genesis 2.0T) (is191-0525h)
Upgrade the fuel delivery in your 2013-2014 Hyundai Genesis 2.0T with the Fuel Injector Clinic 525cc High-Z Fuel Injector Set. Part number is191-0525h includes four 525cc modified saturated, high-impedance ball and seat injectors engineered for excellent linearity, repeatable short pulse width operation, and dependable drivability. Precise flow matching and tight manufacturing tolerances give your tuner consistent injector performance, making this set a strong choice when your performance combination calls for more fuel delivery than the factory injectors can provide.
Fuel Injector Clinic precisely flow matches its high-performance injector sets to within 1%. Each injector in the set is individually numbered, with its results documented on the detailed flow sheet supplied with the injectors. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) with fuel temperature maintained at 90 degrees F using CF-16B calibration fluid. Superior short pulse width control, precise matching, and controlled testing help provide predictable fueling, straightforward calibration, and excellent drivability.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is191-0525h
- Injector Quantity: 4
- Flow Rating: 525cc
- Injector Type: Modified saturated / high impedance
- Injector Design: Ball and seat
- Flow Matching: Precisely flow matched to within 1%
- Test Pressure: 43.5 PSI (3 Bar)
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included Wiring: PGTUSC4 solder-in pigtails
- Optional Wiring Adapter: PADPUtoD4 plug-and-play adapters
- Seals: Includes the O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four 525cc high-impedance fuel injectors for the 2013-2014 Hyundai Genesis 2.0T
- Modified saturated, high-impedance ball and seat injector design
- Precisely flow matched to within 1% for consistent fuel delivery across the complete set
- Each injector is individually numbered for identification and documentation
- Includes a detailed flow sheet showing the results for each injector in the set
- Excellent linearity supports predictable injector performance and accurate tuning
- Superior short pulse width control helps maintain smooth idle and part-throttle drivability
- Tight manufacturing tolerances promote consistent fuel delivery
- Flow tested and rated at 43.5 PSI (3 Bar) and 90 degrees F fuel temperature
- Testing performed using CF-16B calibration fluid
- Includes PGTUSC4 solder-in pigtails for the required injector connector conversion
- Optional PADPUtoD4 plug-and-play adapters allow installation without cutting or soldering the factory wiring harness
- Supplied with the O-rings required for the listed factory application
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Wiring and Installation
The is191-0525h injector set requires a change to the injector connectors on the vehicle's wiring harness. PGTUSC4 pigtails are included and can be soldered into the factory harness to replace the original injector connectors. If you prefer an installation without cutting or soldering the factory wiring, optional PADPUtoD4 plug-and-play adapters can be used to connect the injectors to the original harness.
Fuel Injector Clinic uses brand-new, unused injectors for its performance applications rather than relying on remanufactured or core-program injectors. The injectors are configured with the O-rings required for the listed factory application. If your Genesis 2.0T uses an aftermarket fuel rail or another non-standard fuel system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
Fitment
- 2013 Hyundai Genesis 2.0T
- 2014 Hyundai Genesis 2.0T
FAQs
Are the Fuel Injector Clinic is191-0525h injectors flow matched?
Yes. Fuel Injector Clinic precisely flow matches its high-performance injector sets to within 1%. Each injector is individually numbered, and the included detailed flow sheet provides the results for each injector in the set.
Do these 525cc injectors require changes to the factory Hyundai wiring?
Yes. PGTUSC4 solder-in pigtails are included for converting the injector connectors. If you prefer not to cut or solder the factory wiring harness, optional PADPUtoD4 plug-and-play adapters can be purchased for the installation.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Beefcake Racing specializes in performance fuel system upgrades and can help you choose the right injectors and supporting components for your Hyundai Genesis 2.0T. If you have questions about injector sizing, wiring adapters, aftermarket fuel system compatibility, or your specific performance combination, our specialists can help you get the correct components for your build.
