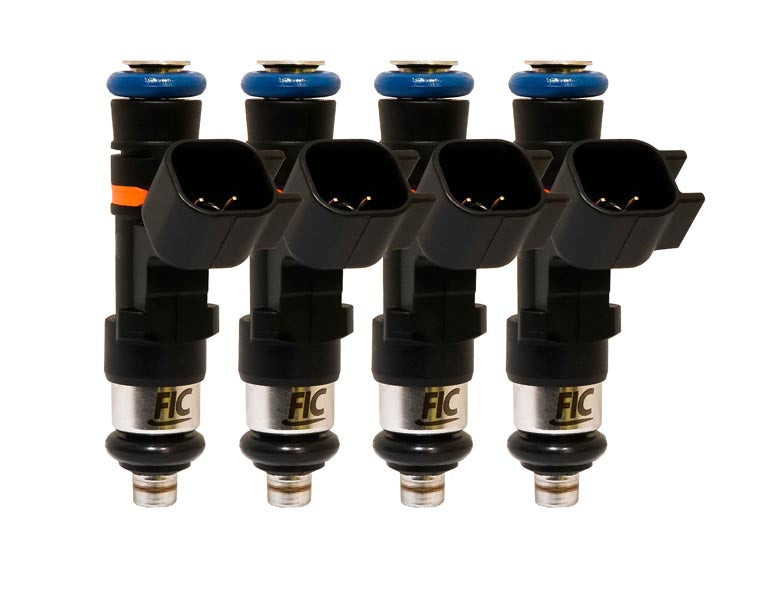

Fuel Injector Clinic 650cc Fuel Injector Set - High Z (2010-2012 Hyundai Genesis 2.0T) (is190-0650h)
Give your 2010-2012 Hyundai Genesis 2.0T the precise, consistent fuel delivery it needs with the Fuel Injector Clinic 650cc High-Z Fuel Injector Set. Part number is190-0650h includes four 650cc modified saturated, high-impedance ball and seat injectors engineered for excellent linearity, repeatable short pulse width operation, and dependable drivability. Whether you are upgrading the fuel system as part of a performance build or need greater injector capacity than the factory setup can provide, this matched set delivers the control and consistency needed for accurate tuning.
Fuel Injector Clinic uses its proprietary Data Match Technology to precisely match the injectors as a set. Each injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency information for the specific injectors you receive. Every injector is flow tested and rated at 43.5 PSI (3 Bar) with fuel temperature maintained at 90 degrees F using CF-16B calibration fluid. The combination of controlled testing, precise matching, and strong short pulse width performance helps tuners achieve predictable fueling from idle and part-throttle operation through higher-load conditions.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is190-0650h
- Injector Quantity: 4
- Flow Rating: 650cc
- Injector Type: Modified saturated / high impedance
- Injector Design: Ball and seat
- Test Pressure: 43.5 PSI (3 Bar)
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Matching: Fuel Injector Clinic Data Match Technology
- Included Wiring: PGTUSC4 solder-in pigtails
- Optional Wiring Adapter: PADPUtoD4 plug-and-play adapters
- Seals: Includes the O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four 650cc high-impedance fuel injectors designed for the 2010-2012 Hyundai Genesis 2.0T
- Proprietary Data Match Technology provides precise injector set matching
- Each injector is individually serial numbered for identification and documentation
- Includes a Data Match Sheet with detailed flow matching and latency information
- Excellent linearity supports predictable and accurate fuel delivery
- Superior short pulse width control helps provide strong idle and part-throttle drivability
- Flow tested and rated at 43.5 PSI (3 Bar) and 90 degrees F fuel temperature
- Testing performed with CF-16B calibration fluid for controlled, repeatable results
- Includes PGTUSC4 solder-in pigtails for the required injector connector conversion
- Optional PADPUtoD4 plug-and-play adapters eliminate the need to cut or solder the factory harness
- Supplied with the O-rings necessary for the listed factory application
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Backed by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Wiring and Installation
This injector set requires a change to the injector connectors on the vehicle's wiring harness. Fuel Injector Clinic includes PGTUSC4 pigtails that can be soldered into the factory harness in place of the original injector connectors. For an installation that does not require cutting or soldering the factory harness, optional PADPUtoD4 plug-and-play adapters can be used to connect the injectors to the original wiring.
Fuel Injector Clinic uses brand-new, unused injectors for its performance applications rather than relying on remanufactured or core-program injectors. The injectors are configured with the O-rings required for the listed factory application. If your Genesis uses an aftermarket fuel rail or another non-standard fuel system configuration, contact Beefcake Racing before ordering to confirm proper injector fitment.
Fitment
- 2010 Hyundai Genesis 2.0T
- 2011 Hyundai Genesis 2.0T
- 2012 Hyundai Genesis 2.0T
FAQs
Do these Fuel Injector Clinic 650cc injectors plug directly into the factory Hyundai wiring harness?
The injectors require a connector conversion. PGTUSC4 solder-in pigtails are included with the set. Optional PADPUtoD4 plug-and-play adapters can be purchased if you prefer to connect the injectors without cutting or soldering the factory wiring harness.
What does Fuel Injector Clinic Data Match Technology provide?
Data Match Technology is Fuel Injector Clinic's injector matching process. Each injector is individually serial numbered, and the set includes a Data Match Sheet containing detailed flow matching and latency information. This data helps provide the consistency and injector characterization needed for accurate tuning and strong drivability.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Beefcake Racing specializes in performance fuel system upgrades and can help you select the right injectors and supporting components for your Hyundai Genesis 2.0T build. If you have questions about Fuel Injector Clinic is190-0650h, wiring adapters, aftermarket fuel system compatibility, or your specific setup, contact our performance specialists before ordering.
