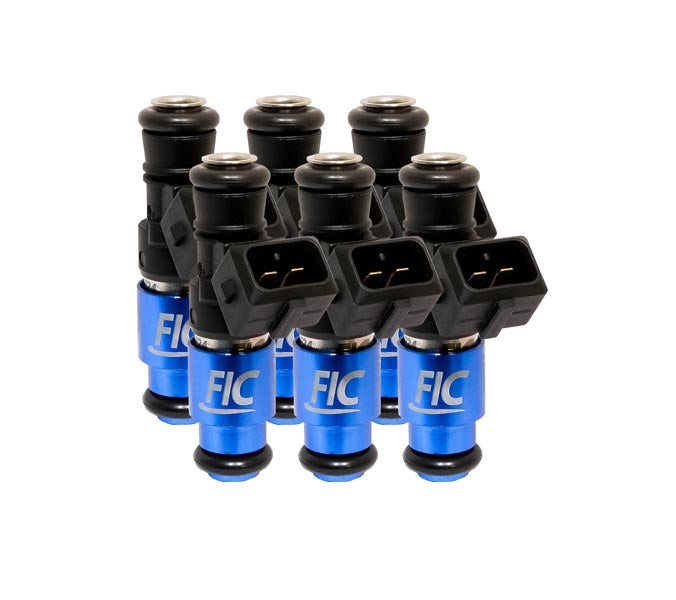

Fuel Injector Clinic 1650cc Fuel Injector Set - High Z (1999 - 2002 Volkswagen / Audi - 6 Cylinder - 53mm) IS168-1650H
Give your 1999-2002 Volkswagen or Audi six-cylinder performance build the serious fueling capacity it demands with the Fuel Injector Clinic 1650cc High-Z Fuel Injector Set. The IS168-1650H includes six 1650cc saturated/high impedance ball and seat injectors in a 53mm configuration, combining massive fuel delivery capability with excellent idle quality, short pulse width control, and drivability. Better yet, this application provides a plug-and-play fit to the OEM injector harness, eliminating the wiring conversion required with many other high-flow injector options.
Fuel Injector Clinic's 1650cc high impedance injector is its largest high impedance injector compatible with all race fuels, making it an excellent option for serious street and high-horsepower combinations running gasoline, E85, or compatible race fuels. Stainless alloy valve construction provides broad fuel compatibility, including pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Every set is precisely matched using FIC's proprietary Data Match Technology, with each injector individually serial numbered and accompanied by a Data Match Sheet containing detailed flow matching and latency information.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: IS168-1650H
- Flow Rate: 1650cc/min
- Quantity: Set of 6 injectors
- Impedance: High-Z / High Impedance
- Injector Type: Saturated ball and seat
- Injector Length: 53mm
- Valve Construction: Stainless alloy
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Injector Identification: Individually serial numbered
- Injector Data: Data Match Sheet included
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Flow Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Wiring: Plug-and-play fit to OEM harness
- O-Rings: Includes O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 1650cc saturated/high impedance ball and seat fuel injectors
- 53mm configuration for the listed Volkswagen and Audi six-cylinder applications
- Massive fuel-flow capability for demanding high-horsepower combinations
- Excellent idle performance in properly tuned street-driven vehicles
- Superior short pulse width control supports precise tuning and excellent drivability
- Plug-and-play fit to the OEM injector harness with no injector plug conversion required
- Stainless alloy valve construction provides broad fuel compatibility
- Compatible with pump gasoline and E85
- Compatible with Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Precisely matched using Fuel Injector Clinic's proprietary Data Match Technology
- Each injector is individually serial numbered for identification and matching
- Includes a detailed Data Match Sheet with flow matching and latency value information
- Flow tested and rated at 43.5 PSI (3 Bar) with fuel at 90 degrees F using CF-16B calibration fluid
- Includes the O-rings required for the listed factory application
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Plug-and-Play Installation
Unlike IS168 injector sets that require pigtails or plug-and-play wiring adapters, the IS168-1650H is designed for a plug-and-play connection to the OEM injector harness. This eliminates the need to cut, solder, or adapt the factory injector wiring while giving high-horsepower Volkswagen and Audi builds access to FIC's 1650cc high impedance injector technology.
Fuel Injector Clinic supplies the injectors with the O-rings required for the listed factory application. If your vehicle uses an aftermarket fuel rail or another non-standard fuel system configuration, injector compatibility should be verified before ordering.
Fitment
- 1999 Volkswagen / Audi 6-cylinder applications requiring 53mm injectors
- 2000 Volkswagen / Audi 6-cylinder applications requiring 53mm injectors
- 2001 Volkswagen / Audi 6-cylinder applications requiring 53mm injectors
- 2002 Volkswagen / Audi 6-cylinder applications requiring 53mm injectors
FAQs
What fuels can Fuel Injector Clinic IS168-1650H injectors be used with?
Fuel Injector Clinic's 1650cc high impedance injector uses stainless alloy valve construction and is compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. This broad fuel compatibility makes the IS168-1650H a versatile option for both street-driven and higher-horsepower performance combinations.
Does the FIC IS168-1650H injector set require wiring modifications?
No. Fuel Injector Clinic specifies the IS168-1650H as a plug-and-play fit to the OEM harness. Unlike several other injector sizes in this application family, this 1650cc set does not require an injector plug conversion for the listed factory application.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
When your Volkswagen or Audi build reaches the point where 1650cc injectors are on the parts list, getting the entire fuel system combination right matters. Beefcake Racing can help you match your Fuel Injector Clinic injectors with the supporting fuel system and performance components your build requires. Have questions about IS168-1650H, fuel compatibility, or injector fitment? Email sales@beefcakeracing.com or call 1-855-827-7223.
