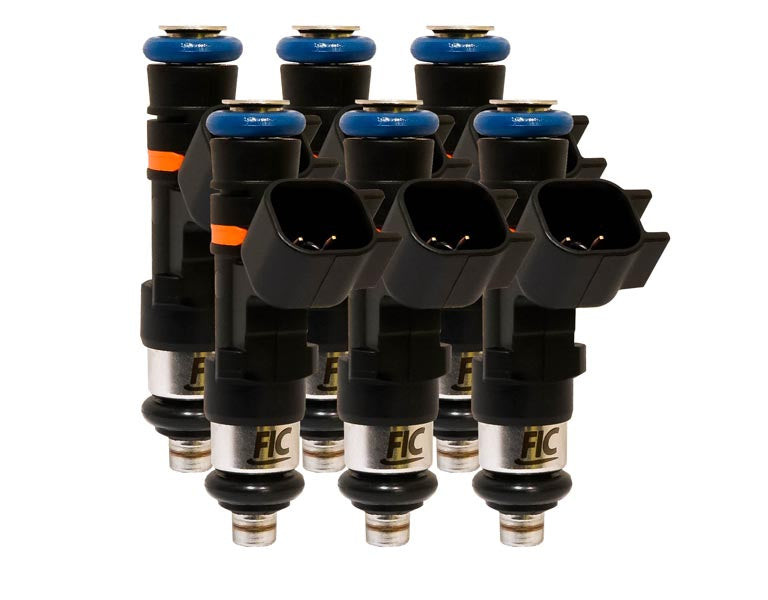

Fuel Injector Clinic 1000cc Fuel Injector Set - High Z (1999 - 2002 Volkswagen / Audi - 6 Cylinder - 53mm) IS168-1000H
Give your 1999-2002 Volkswagen or Audi six-cylinder performance build the fuel delivery and precise control it needs with the Fuel Injector Clinic 1000cc High-Z Fuel Injector Set. The IS168-1000H includes six 1000cc saturated/high impedance ball and seat injectors in a 53mm configuration, combining substantial flow capability with excellent short pulse width control and consistent drivability. FIC's advanced injector technology and precise matching give tuners predictable fuel delivery across the operating range, making this set a strong choice for performance applications that have outgrown the capacity of the factory injectors.
Every IS168-1000H set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency value information to support accurate ECU calibration. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) with fuel at 90 degrees F using CF-16B calibration fluid. The injectors are supplied with the O-rings required for the listed factory application and are covered by Fuel Injector Clinic's lifetime warranty against failure caused by defects in original manufacture.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: IS168-1000H
- Flow Rate: 1000cc/min
- Quantity: Set of 6 injectors
- Impedance: High-Z / High Impedance
- Injector Type: Saturated ball and seat
- Injector Length: 53mm
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Injector Identification: Individually serial numbered
- Injector Data: Data Match Sheet included
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Flow Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included Wiring: PGTUSC6 solder-in pigtails
- Optional Wiring Adapters: PADPUtoJ6 plug-and-play adapters
- O-Rings: Includes O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 1000cc saturated/high impedance ball and seat fuel injectors
- 53mm injector configuration for the listed Volkswagen and Audi six-cylinder applications
- Substantial fuel-flow capacity for modified and higher-performance combinations
- Excellent short pulse width control for precise fueling at low injector pulse widths
- State-of-the-art matching helps provide predictable tuning and excellent drivability
- Precisely matched using Fuel Injector Clinic's proprietary Data Match Technology
- Each injector is individually serial numbered for identification and matching
- Includes a detailed Data Match Sheet with flow matching and latency value information
- Flow tested and rated at 43.5 PSI (3 Bar) with fuel at 90 degrees F using CF-16B calibration fluid
- Includes the O-rings required for the listed factory application
- Includes PGTUSC6 pigtails for injector plug conversion
- Optional PADPUtoJ6 plug-and-play adapters allow installation without cutting or soldering the factory wiring harness
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Wiring and Installation
The IS168-1000H injector set requires an injector plug conversion when installed with the factory wiring harness. Fuel Injector Clinic includes PGTUSC6 pigtails that can be soldered into the vehicle harness to replace the existing injector plugs. For an installation without cutting or soldering the factory harness, optional PADPUtoJ6 plug-and-play adapters can be added to connect the injectors to the existing wiring.
Fuel Injector Clinic uses brand-new, unused injectors for its performance applications rather than relying on remanufactured or core-program injectors. The set is supplied with the O-rings required for the listed factory application. If your vehicle uses an aftermarket fuel rail or another non-standard fuel system configuration, injector compatibility should be verified before ordering.
Fitment
- 1999 Volkswagen / Audi 6-cylinder applications requiring 53mm injectors
- 2000 Volkswagen / Audi 6-cylinder applications requiring 53mm injectors
- 2001 Volkswagen / Audi 6-cylinder applications requiring 53mm injectors
- 2002 Volkswagen / Audi 6-cylinder applications requiring 53mm injectors
FAQs
How are Fuel Injector Clinic IS168-1000H injectors matched and tested?
Fuel Injector Clinic precisely matches each set using its proprietary Data Match Technology. Every injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency information. The injectors are flow tested and rated at 43.5 PSI (3 Bar) with fuel at 90 degrees F using CF-16B calibration fluid.
Does the FIC IS168-1000H injector set require wiring modifications?
Yes. The set includes PGTUSC6 pigtails that can be soldered into the vehicle wiring harness. Optional PADPUtoJ6 plug-and-play adapters are available for an installation that does not require cutting or soldering the factory injector wiring.
