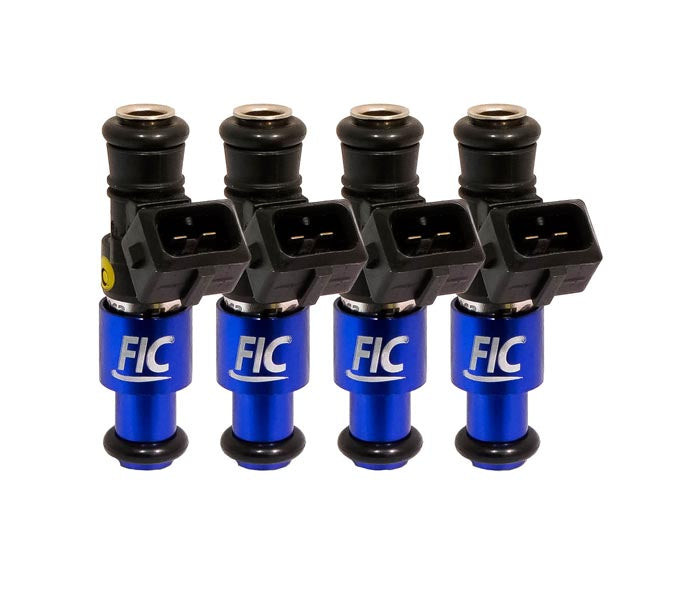

Fuel Injector Clinic 1200cc (Previously 1100cc) Fuel Injector Set - High Z (is167-1200h) - 1997-2006 Volkswagen / Audi 4 Cylinder 53mm
Upgrade the fuel system on your performance Volkswagen or Audi four-cylinder with the Fuel Injector Clinic 1200cc High-Z Fuel Injector Set. The is167-1200h includes four 1200cc saturated, high-impedance ball-and-seat injectors in a 53mm configuration, delivering the additional fuel capacity needed for demanding modified applications while maintaining the precise injector control required for strong drivability. Unlike several other flow rates in this injector family, the 1200cc set is designed for plug-and-play connection to the OEM injector harness with no injector plug replacement required.
Fuel Injector Clinic precisely matches the is167-1200h set using its proprietary Data Match Technology. Each injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency information to support accurate ECU calibration. FIC flow tests and rates these injectors at 43.5 PSI, or 3 Bar, at 90 degrees F fuel temperature using CF-16B calibration fluid. Superior short pulse width control and state-of-the-art matching help make these high-flow injectors easier to tune while maintaining excellent drivability. This 1200cc set replaces the previous is167-1100h designation.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is167-1200h
- Previous Part Number: is167-1100h
- Flow Rate: 1200cc/min
- Application: Volkswagen / Audi 4-cylinder
- Injector Height: 53mm
- Injector Type: Saturated / High Impedance / High-Z
- Injector Design: Ball and seat
- Quantity: Set of 4 injectors
- Harness Connection: Plug-and-play fit to OEM harness
- Resistor Pack: Removal recommended
- Flow Matching: Fuel Injector Clinic Data Match Technology
- Test Pressure: 43.5 PSI / 3 Bar
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Injector Identification: Individually serial numbered
- Included Data: Data Match Sheet with flow matching and latency information
- Seals: Includes O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- 1200cc/min flow capacity for high-performance VW and Audi four-cylinder applications
- Previously offered as the is167-1100h 1100cc injector set
- 53mm injector configuration
- Complete set of four injectors
- Saturated, high-impedance ball-and-seat injector design
- Plug-and-play fit to the OEM injector harness
- No injector plug replacement required
- Resistor pack removal recommended
- Fuel Injector Clinic Data Match Technology provides precise injector matching
- Superior short pulse width control supports accurate tuning and excellent drivability
- Each injector is individually serial numbered for identification and data tracking
- Detailed Data Match Sheet provides flow matching and latency information for calibration
- Flow tested and rated at 43.5 PSI, or 3 Bar, at 90 degrees F using CF-16B calibration fluid
- Includes O-rings required for the listed factory application
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
1200cc Performance with Precise Injector Control
Moving to a larger injector should not mean sacrificing low-speed behavior or tuning precision. Fuel Injector Clinic combines the 1200cc flow capacity of the is167-1200h with superior short pulse width control and precise Data Match Technology. Each injector is individually serial numbered and supplied with detailed matching and latency data, giving tuners the information and consistency needed to accurately calibrate a high-performance VW or Audi four-cylinder across the operating range.
Plug-and-Play OEM Harness Connection
The is167-1200h stands apart from several other flow rates in this 53mm injector family because it is designed to connect directly to the OEM injector harness. No injector plug replacement, solder-in pigtails, or plug conversion adapters are required for the injector connection. Fuel Injector Clinic recommends resistor pack removal for this high-impedance injector set.
Fitment
- 1997 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 1998 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 1999 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2000 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2001 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2002 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2003 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2004 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2005 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2006 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
Fitment Note: This is the 53mm four-cylinder VW/Audi injector configuration. Verify that your specific application requires 53mm injectors before ordering. If the vehicle uses an aftermarket fuel rail or another non-standard fuel-system configuration, contact Beefcake Racing to confirm proper injector fitment.
FAQs
Is the Fuel Injector Clinic is167-1200h the same injector set previously sold as the is167-1100h?
Yes. Fuel Injector Clinic identifies the is167-1200h as its 1200cc injector set that was previously designated as the is167-1100h. The current part number is is167-1200h.
Does the is167-1200h require an injector plug conversion?
No. This specific 1200cc 53mm injector set is designed as a plug-and-play fit to the OEM injector harness, so injector plug replacement is not required. Fuel Injector Clinic recommends resistor pack removal.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Beefcake Racing can help you select the correct Fuel Injector Clinic injectors and supporting fuel-system components for your Volkswagen or Audi performance build. If you have questions about the is167-1200h, injector sizing, the 53mm configuration, installation, or fuel-system compatibility, email sales@beefcakeracing.com or call 1-855-827-7223 for assistance.
