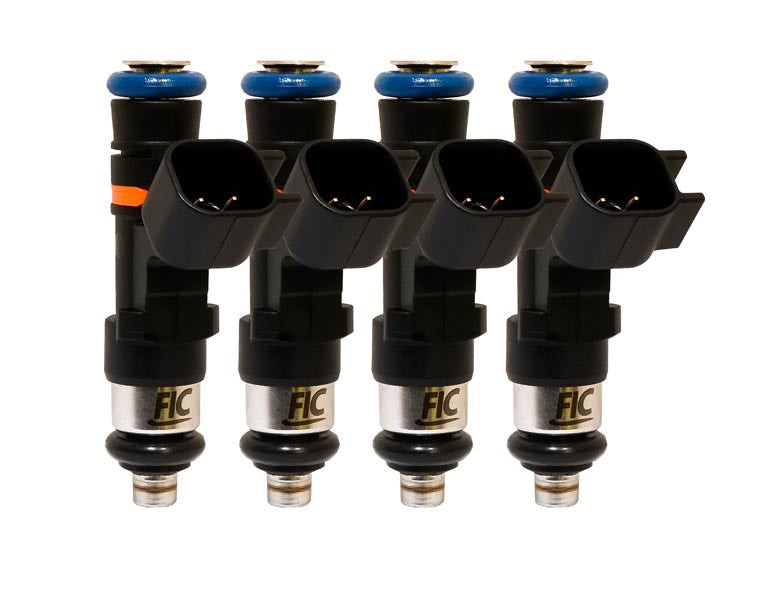

Fuel Injector Clinic 775cc Fuel Injector Set - High Z (is167-0775h) - 1997-2006 Volkswagen / Audi 4 Cylinder 53mm
Upgrade the fuel system on your performance Volkswagen or Audi four-cylinder with the Fuel Injector Clinic 775cc High-Z Fuel Injector Set. The is167-0775h includes four 775cc saturated, high-impedance ball-and-seat injectors in a 53mm configuration. Designed for modified VW and Audi applications that need more fuel capacity without sacrificing precise low-load control, these injectors deliver excellent linearity, short pulse width repeatability, and the predictable performance tuners need for a responsive, well-mannered combination.
Fuel Injector Clinic precisely matches the is167-0775h set using its proprietary Data Match Technology. Each injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency information for accurate calibration. FIC flow tests and rates these injectors at 43.5 PSI, or 3 Bar, at 90 degrees F fuel temperature using CF-16B calibration fluid. The set includes PGTUSC4 pigtails, with optional PADPUtoJ4 plug-and-play adapters available to eliminate the need to cut or solder the factory injector wiring. The injectors include the O-rings required for the listed factory application and are backed by Fuel Injector Clinic's lifetime warranty against failure caused by defects in original manufacture.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is167-0775h
- Flow Rate: 775cc/min
- Application: Volkswagen / Audi 4-cylinder
- Injector Height: 53mm
- Injector Type: Saturated / High Impedance / High-Z
- Injector Design: Ball and seat
- Quantity: Set of 4 injectors
- Flow Matching: Fuel Injector Clinic Data Match Technology
- Test Pressure: 43.5 PSI / 3 Bar
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Injector Identification: Individually serial numbered
- Included Data: Data Match Sheet with flow matching and latency information
- Included Wiring: PGTUSC4 pigtails
- Optional Wiring: PADPUtoJ4 plug-and-play adapters
- Seals: Includes O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- 775cc/min flow capacity for modified VW and Audi four-cylinder applications
- 53mm injector configuration
- Complete set of four injectors
- Saturated, high-impedance ball-and-seat injector design
- Excellent injector linearity and short pulse width repeatability
- Superior short pulse width control helps deliver strong drivability
- Fuel Injector Clinic Data Match Technology provides precise injector matching
- Each injector is individually serial numbered for identification and data tracking
- Detailed Data Match Sheet provides flow matching and latency information for accurate tuning
- Flow tested and rated at 43.5 PSI, or 3 Bar, at 90 degrees F using CF-16B calibration fluid
- Includes PGTUSC4 pigtails
- Optional PADPUtoJ4 plug-and-play adapters eliminate the need to cut or solder the factory injector wiring
- Includes O-rings required for the listed factory application
- Uses brand-new injectors rather than remanufactured or core-program injectors
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Precise Fuel Delivery for Performance VW and Audi Builds
More injector capacity is only useful when the ECU can control it accurately. Fuel Injector Clinic combines the 775cc/min flow capacity of the is167-0775h with excellent linearity, short pulse width repeatability, and precise Data Match Technology. Each injector is individually serial numbered and supplied with detailed flow matching and latency information, giving tuners the consistency and injector data needed to build a responsive calibration across idle, part-throttle, and high-load operation.
Wiring Options
The is167-0775h injector set requires an injector plug conversion. PGTUSC4 pigtails are included and can be soldered into the vehicle wiring harness to replace the existing injector plugs. Optional PADPUtoJ4 plug-and-play adapters provide an alternative that connects the injectors to the existing harness without cutting or soldering. FIC uses brand-new, unused injectors for its performance applications rather than relying on remanufactured or core-program injectors.
Fitment
- 1997 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 1998 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 1999 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2000 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2001 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2002 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2003 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2004 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2005 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
- 2006 Volkswagen / Audi 4-cylinder applications requiring 53mm injectors
Fitment Note: This is the 53mm four-cylinder VW/Audi injector configuration. Verify that your specific application requires 53mm injectors before ordering. If the vehicle uses an aftermarket fuel rail or another non-standard fuel-system configuration, contact Beefcake Racing to confirm proper injector fitment.
FAQs
What makes the Fuel Injector Clinic is167-0775h suitable for a performance VW or Audi?
The is167-0775h combines 775cc/min fuel capacity with high-impedance operation, excellent linearity, short pulse width repeatability, and FIC Data Match Technology. This combination gives tuners both increased fuel capacity and the precise injector behavior needed for strong drivability.
Does the is167-0775h require an injector plug conversion?
Yes. PGTUSC4 pigtails are included with the injector set and can be soldered into the harness. Optional PADPUtoJ4 plug-and-play adapters provide an installation option that avoids cutting or soldering the factory injector wiring.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Beefcake Racing can help you select the correct Fuel Injector Clinic injectors and supporting fuel-system components for your Volkswagen or Audi performance build. If you have questions about the is167-0775h, injector sizing, the 53mm configuration, wiring adapters, or fuel-system compatibility, email sales@beefcakeracing.com or call 1-855-827-7223 for assistance.
