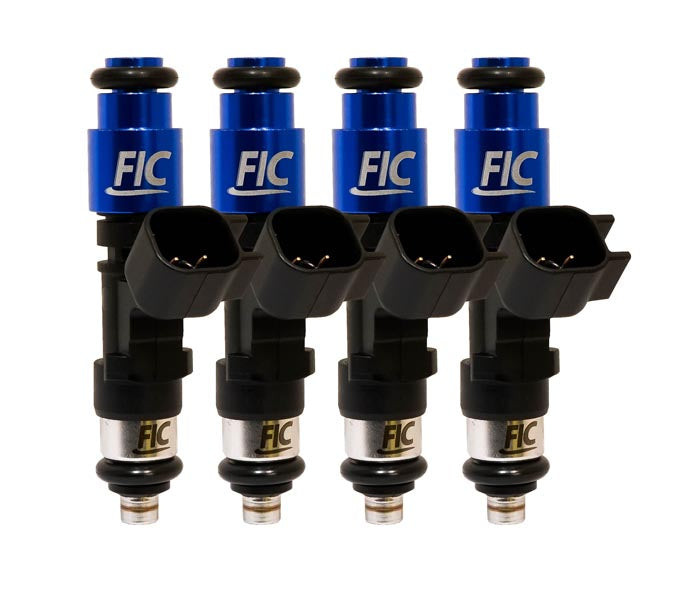

Fuel Injector Clinic 365cc Fuel Injector Set - High Z (is165-0365h) - 1988-1998 Volkswagen / Audi 4 Cylinder 64mm
Upgrade your performance Volkswagen or Audi with the Fuel Injector Clinic 365cc High-Z Fuel Injector Set. Designed for compatible 1988-1998 VW/Audi four-cylinder applications using the 64mm injector configuration, the is165-0365h includes four 365cc saturated, high-impedance ball-and-seat injectors. Excellent linearity, short pulse width repeatability, and tight manufacturing tolerances give tuners the consistent fuel delivery and precise control needed for responsive performance and excellent drivability.
Fuel Injector Clinic precisely flow matches each is165-0365h injector set to within 1%. Every injector is individually numbered, with individual results supplied on the detailed flow sheet included with the set. FIC flow tests and rates these injectors at 43.5 PSI, or 3 Bar, at 90 degrees F fuel temperature using CF-16B calibration fluid. PGTUSC4 solder-in pigtails are included, while optional PADPUtoJ4 plug-and-play adapters provide a no-cut, no-solder connection option. The injectors include the O-rings required for the listed factory application and are backed by Fuel Injector Clinic's lifetime warranty against failure caused by defects in original manufacture.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is165-0365h
- Flow Rate: 365cc/min
- Application: Volkswagen / Audi 4-cylinder
- Injector Height: 64mm
- Injector Type: Saturated / High Impedance / High-Z
- Injector Design: Ball and seat
- Quantity: Set of 4 injectors
- Flow Matching: Precisely flow matched to within 1%
- Test Pressure: 43.5 PSI / 3 Bar
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Injector Identification: Individually numbered
- Included Data: Detailed flow sheet with individual injector results
- Included Wiring: PGTUSC4 solder-in pigtails
- Optional Wiring: PADPUtoJ4 plug-and-play adapters
- Seals: Includes O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- 365cc/min flow capacity for performance Volkswagen and Audi four-cylinder applications
- 64mm injector configuration
- Complete set of four precisely matched injectors
- Saturated, high-impedance ball-and-seat injector design
- Excellent linearity and short pulse width repeatability
- Superior short pulse width control supports accurate tuning and excellent drivability
- Precisely flow matched to within 1%
- Each injector is individually numbered with results documented on the included flow sheet
- Flow tested and rated at 43.5 PSI, or 3 Bar, at 90 degrees F using CF-16B calibration fluid
- Includes PGTUSC4 solder-in pigtails
- Optional PADPUtoJ4 plug-and-play adapters eliminate the need to cut or solder the factory injector wiring
- Includes O-rings required for the listed factory application
- Fuel Injector Clinic uses brand-new injectors rather than remanufactured or core-program injectors
- Lifetime warranty against failure caused by defects in original manufacture
Precise Fuel Delivery and Strong Drivability
A performance injector needs to deliver consistent fuel from cylinder to cylinder while remaining controllable at the short pulse widths encountered during idle and part-throttle operation. Fuel Injector Clinic combines the 365cc/min capacity of the is165-0365h with tight manufacturing tolerances, excellent linearity, and precise flow matching within 1%. The result is a carefully matched injector set designed to give the tuner predictable fuel delivery throughout the operating range.
Wiring Options
The is165-0365h requires an injector plug conversion. PGTUSC4 pigtails are included and can be soldered into the vehicle wiring harness to replace the existing injector plugs. Optional PADPUtoJ4 plug-and-play adapters provide an alternative that connects the injectors to the existing harness without cutting or soldering. Fuel Injector Clinic uses brand-new, unused injectors for its performance applications rather than relying on remanufactured or core-program injectors.
Fitment
- 1988 Volkswagen / Audi 4-cylinder applications requiring 64mm injectors
- 1989 Volkswagen / Audi 4-cylinder applications requiring 64mm injectors
- 1990 Volkswagen / Audi 4-cylinder applications requiring 64mm injectors
- 1991 Volkswagen / Audi 4-cylinder applications requiring 64mm injectors
- 1992 Volkswagen / Audi 4-cylinder applications requiring 64mm injectors
- 1993 Volkswagen / Audi 4-cylinder applications requiring 64mm injectors
- 1994 Volkswagen / Audi 4-cylinder applications requiring 64mm injectors
- 1995 Volkswagen / Audi 4-cylinder applications requiring 64mm injectors
- 1996 Volkswagen / Audi 4-cylinder applications requiring 64mm injectors
- 1997 Volkswagen / Audi 4-cylinder applications requiring 64mm injectors
- 1998 Volkswagen / Audi 4-cylinder applications requiring 64mm injectors
Fitment Note: This injector set is intended for compatible 1988-1998 Volkswagen and Audi four-cylinder applications using the 64mm injector configuration. If your vehicle uses an aftermarket fuel rail or another non-standard fuel-system setup, contact Beefcake Racing before ordering to verify proper injector fitment.
FAQs
How are the Fuel Injector Clinic is165-0365h injectors matched?
Fuel Injector Clinic precisely flow matches each set to within 1%. Every injector is individually numbered, and the results for each injector are provided on the detailed flow sheet supplied with the set.
Does the is165-0365h require an injector plug conversion?
Yes. PGTUSC4 solder-in pigtails are included for replacing the existing injector plugs. Optional PADPUtoJ4 plug-and-play adapters can be used instead to connect the injectors without cutting or soldering the factory injector wiring.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Beefcake Racing can help you select the correct Fuel Injector Clinic injectors and supporting fuel-system components for your Volkswagen or Audi performance build. If you have questions about the is165-0365h, injector sizing, the 64mm configuration, wiring adapters, or fuel-system compatibility, email sales@beefcakeracing.com or call 1-855-827-7223 for assistance.
