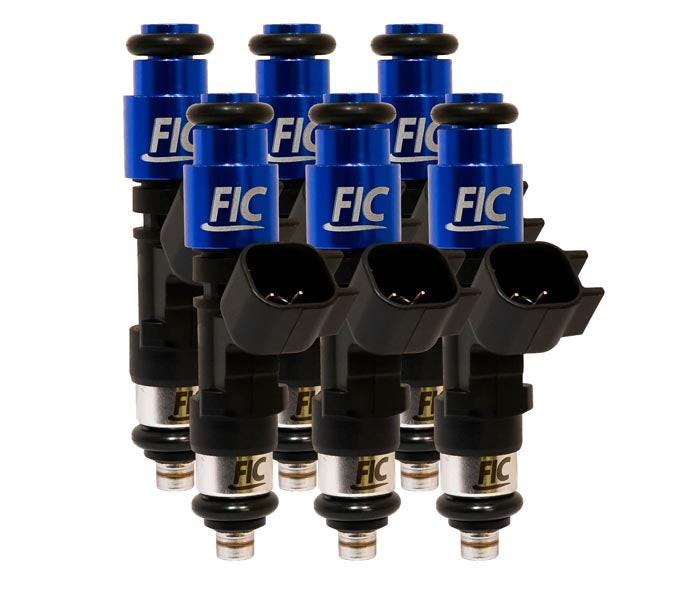

Fuel Injector Clinic 650cc Fuel Injector Set - High Z (is145-0650h) - 1993-1998 Toyota Supra 2JZ-GTE
Upgrade your 2JZ-GTE fuel system with the Fuel Injector Clinic 650cc High-Z Fuel Injector Set for 1993-1998 Toyota Supra applications. Designed for a top-feed injector setup, this set includes six 650cc saturated, high-impedance Ball and Seat injectors engineered for excellent linearity, short pulse width repeatability, and consistent fuel delivery. For modified Supra builds that need increased fueling capability while maintaining the precise control and drivability expected from a properly tuned street car, the is145-0650h delivers a proven combination of performance and tuning accuracy.
Each injector is individually serial numbered and precisely matched using Fuel Injector Clinic's proprietary Data Match Technology, with detailed flow matching and latency information supplied on the included Data Match Sheet. FIC flow tests and rates these injectors at 43.5 PSI, or 3 Bar, at 90 degrees F fuel temperature using CF-16B calibration fluid. Superior short pulse width control and state-of-the-art matching help make the injectors easier to tune while maintaining excellent drivability. The set includes PGTUSC6 solder-in pigtails and the O-rings required for the listed application, while optional PADPUtoD6 plug-and-play adapters provide an alternative that does not require cutting or soldering the injector wiring.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is145-0650h
- Flow Rate: 650cc/min
- Application: Toyota Supra 2JZ-GTE top-feed injector setup
- Injector Type: Saturated / High Impedance
- Injector Design: Ball and Seat
- Quantity: Set of 6 injectors
- Flow Matching: Fuel Injector Clinic Data Match Technology
- Test Pressure: 43.5 PSI / 3 Bar
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Injector Identification: Individually serial numbered
- Included Data: Data Match Sheet with flow matching and latency information
- Included Wiring: PGTUSC6 solder-in pigtails
- Optional Wiring: PADPUtoD6 plug-and-play adapters
- Seals: Includes O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- 650cc/min flow capacity for modified Toyota Supra 2JZ-GTE applications
- Six-injector set designed for 2JZ-GTE top-feed configurations
- Saturated, high-impedance Ball and Seat injector design
- Excellent linearity for consistent fuel delivery throughout the injector operating range
- Strong short pulse width repeatability for precise low-pulse-width fueling
- Superior short pulse width control helps provide excellent drivability
- Fuel Injector Clinic Data Match Technology provides precise injector matching
- Each injector is individually serial numbered for identification and data tracking
- Detailed Data Match Sheet provides flow matching and latency information
- Flow tested and rated at 43.5 PSI, or 3 Bar, at 90 degrees F using CF-16B calibration fluid
- State-of-the-art matching helps provide predictable injector performance for easier tuning
- Includes PGTUSC6 pigtails for the required injector plug conversion
- Optional PADPUtoD6 plug-and-play adapters eliminate the need to cut and solder the injector wiring
- Includes O-rings required for the listed factory application
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Wiring Requirements
The is145-0650h injector set requires an injector plug conversion. Fuel Injector Clinic includes PGTUSC6 pigtails that can be soldered into the vehicle's wiring harness to replace the existing injector plugs. For an installation without cutting or soldering the injector wiring, optional PADPUtoD6 plug-and-play adapters can be purchased to connect the injectors to the existing harness.
This plug conversion allows Fuel Injector Clinic to provide brand-new, unused injectors for its performance applications rather than relying on remanufactured or core-program injectors, avoiding the additional potential for failure associated with previously used injector cores.
Fitment
- 1993 Toyota Supra 2JZ-GTE
- 1994 Toyota Supra 2JZ-GTE
- 1995 Toyota Supra 2JZ-GTE
- 1996 Toyota Supra 2JZ-GTE
- 1997 Toyota Supra 2JZ-GTE
- 1998 Toyota Supra 2JZ-GTE
Fitment Note: This injector set is intended for Toyota Supra 2JZ-GTE top-feed injector applications. If your Supra uses an aftermarket fuel rail, modified fuel system, or another non-standard configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
FAQs
How does Data Match Technology benefit the Fuel Injector Clinic is145-0650h injector set?
Fuel Injector Clinic uses its proprietary Data Match Technology to precisely match the injectors as a set. Each injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency information, giving the tuner accurate injector data while helping deliver consistent fueling and excellent drivability.
Do the is145-0650h injectors require changing the injector plugs?
Yes. Fuel Injector Clinic includes PGTUSC6 solder-in pigtails for the required plug conversion. Optional PADPUtoD6 plug-and-play adapters are available if you prefer to connect the injectors without cutting or soldering the injector wiring.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Beefcake Racing can help you match your 2JZ-GTE fuel system to your performance goals and overall combination. If you have questions about the Fuel Injector Clinic is145-0650h injector set, injector sizing, wiring adapters, or compatibility with an aftermarket fuel-system setup, email sales@beefcakeracing.com or call 1-855-827-7223 for assistance.
