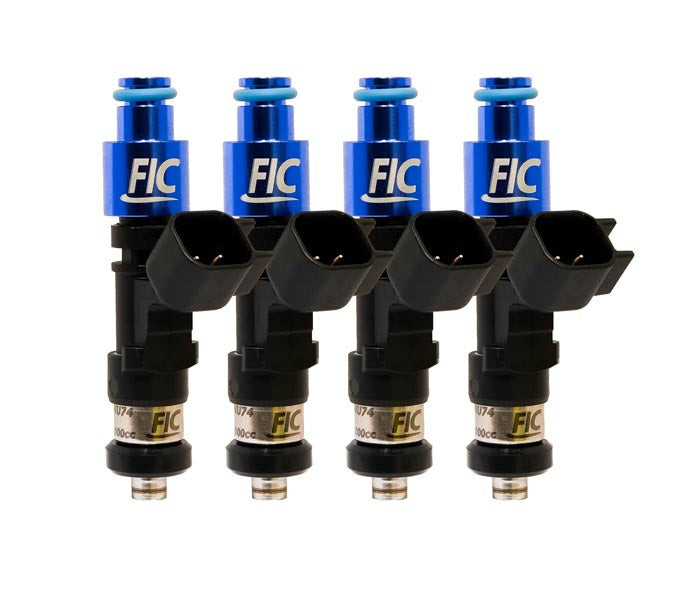

Fuel Injector Clinic 525cc Fuel Injector Set - High Z (is140-0525h) - Scion tC / xB / Toyota 1ZZ
Upgrade your Scion or compatible Toyota fuel system with the Fuel Injector Clinic is140-0525h 525cc High-Z injector set. This matched set of four saturated, high-impedance ball and seat injectors provides increased fueling capacity along with the excellent linearity and short pulse width repeatability needed for accurate tuning and strong street drivability. For modified Scion tC, Scion xB, and compatible Toyota 1ZZ-powered applications that need more fuel than the factory injectors can provide, this set delivers a proven combination of performance, consistency, and control.
Fuel Injector Clinic precisely flow matches each injector set to within 1 percent, individually numbers each injector, and provides detailed flow results with the set. Every injector is flow tested and rated at 43.5 PSI (3 Bar) with fuel at 90 degrees F using CF-16B calibration fluid. Tight manufacturing tolerances and superior short pulse width control help make these injectors easier to calibrate while maintaining excellent drivability. PGTUSC4 solder-in pigtails are included, or optional PADPUtoT4 plug-and-play adapters can be added for installation without cutting or soldering the applicable factory harness.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is140-0525h
- Flow Rate: 525cc/min
- Injector Quantity: 4
- Injector Type: Saturated / high impedance ball and seat
- Impedance: High-Z / high impedance
- Flow Matching: Precisely matched to within 1 percent
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Flow Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Pigtails: PGTUSC4 included
- Optional Plug-and-Play Adapters: PADPUtoT4
- O-Rings: Included as required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Complete set of four 525cc/min performance fuel injectors
- Saturated, high-impedance ball and seat injector design
- Precisely flow matched to within 1 percent
- Excellent injector linearity for predictable fuel delivery
- Strong short pulse width repeatability for precise low-load fueling
- Each injector is individually numbered
- Detailed flow results supplied with the matched injector set
- Flow tested and rated at 43.5 PSI (3 Bar) and 90 degrees F using CF-16B calibration fluid
- Tight manufacturing tolerances help support accurate ECU calibration
- Designed for excellent drivability in properly tuned performance applications
- PGTUSC4 solder-in pigtails included
- Optional PADPUtoT4 plug-and-play adapters available for a no-cut, no-solder harness connection
- Configured with the O-rings required for the listed factory application
- Uses brand-new, unused injectors rather than remanufactured or core-program components
- Lifetime warranty against failure caused by defects in original manufacture
Precisely Flow Matched for Consistent Performance
Increasing injector capacity is only part of building a properly functioning performance fuel system. Consistency between cylinders is equally important. Fuel Injector Clinic precisely flow matches the four injectors in each is140-0525h set to within 1 percent, helping provide balanced fuel delivery across the engine rather than relying on a collection of unmatched injectors.
Each injector is individually numbered, and detailed flow results are supplied with the set. Fuel Injector Clinic also tests and rates these injectors under controlled conditions at 43.5 PSI (3 Bar) and 90 degrees F using CF-16B calibration fluid. The result is a well-documented matched injector set that gives your tuner a consistent foundation for calibration.
525cc Performance With Excellent Drivability
The 525cc flow rate provides additional fueling capacity for modified applications while retaining the linearity and short pulse width control needed for smooth street operation. Precise control at shorter pulse widths is especially valuable during idle and part-throttle conditions, where an injector must consistently deliver very small amounts of fuel.
Fuel Injector Clinic combines this low pulse width control with tight manufacturing tolerances to help make the injectors easier to tune and provide excellent drivability. FIC also uses brand-new, unused injectors for its performance applications rather than relying on remanufactured injectors or core programs.
Wiring and Installation
The Fuel Injector Clinic is140-0525h set includes PGTUSC4 solder-in pigtails. Using the supplied pigtails requires replacing the applicable factory injector connectors and soldering the new connectors into the vehicle wiring harness. For owners who prefer to retain the applicable factory harness without cutting or soldering, optional PADPUtoT4 plug-and-play adapters are available.
Fuel Injector Clinic supplies the injectors with the O-rings required for the listed factory application. Vehicles equipped with aftermarket fuel rails or other unusual fuel-system configurations should be verified before ordering to ensure the correct injector setup is selected.
Fitment
- 2005 Scion tC
- 2006 Scion tC
- 2007 Scion tC
- 2008 Scion tC
- 2009 Scion tC
- 2010 Scion tC
- 2011 Scion tC
- 2012 Scion tC
- 2013 Scion tC
- 2014 Scion tC
- 2015 Scion tC
- 2016 Scion tC
- 2008 Scion xB
- 2009 Scion xB
- 2010 Scion xB
- 2011 Scion xB
- 2012 Scion xB
- 2013 Scion xB
- 2014 Scion xB
- 2015 Scion xB
- Select Toyota applications utilizing the 1ZZ engine
FAQs
What comes with the Fuel Injector Clinic is140-0525h injector set?
The set includes four 525cc saturated, high-impedance ball and seat injectors, PGTUSC4 solder-in pigtails, the O-rings required for the listed factory application, and detailed injector flow results. Optional PADPUtoT4 plug-and-play adapters are available separately.
Do the FIC is140-0525h injectors require modifying the factory wiring?
Using the included PGTUSC4 pigtails requires replacing the applicable factory injector connectors and soldering the supplied pigtails into the harness. Optional PADPUtoT4 plug-and-play adapters provide a no-cut, no-solder alternative for connecting the injectors to the applicable factory harness.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Beefcake Racing is your source for Fuel Injector Clinic injectors and the supporting fuel-system components needed for a properly matched performance combination. Whether you are upgrading a Scion tC, Scion xB, or compatible Toyota 1ZZ application, our team can help you choose the injector size and supporting components that fit your build. Questions about Fuel Injector Clinic is140-0525h? Email sales@beefcakeracing.com or call 1-855-827-7223.
