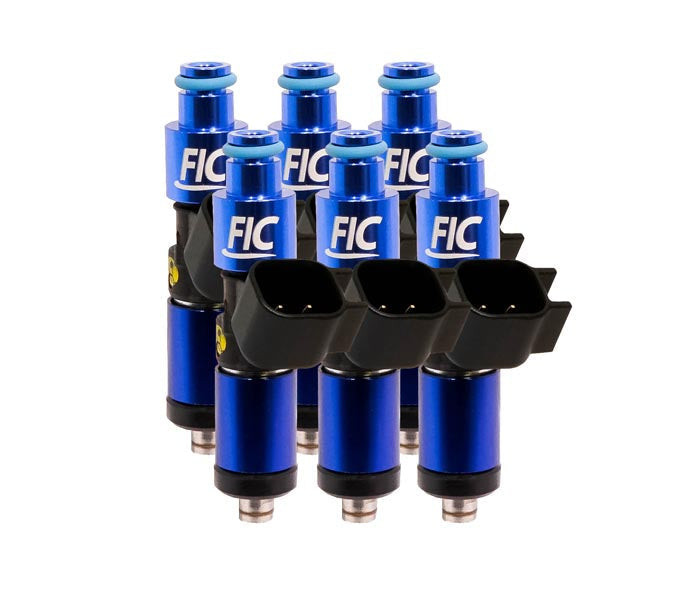

Fuel Injector Clinic 1440cc Fuel Injector Set - High Z (is135-1440h) - 1991 - 1999 Mitsubishi 3000GT
Give your 1991 - 1999 Mitsubishi 3000GT the fuel capacity needed for serious horsepower with the Fuel Injector Clinic 1440cc High-Z Fuel Injector Set. Part number is135-1440h includes six saturated, high-impedance ball and seat injectors engineered to deliver substantial fuel volume without sacrificing the precise control needed for street drivability. Positioned between FIC's 1200cc and 1650cc offerings, the 1440cc injector combines excellent idle performance, linearity, and short pulse width repeatability with the fueling headroom demanded by high-output 3000GT builds running gasoline, E85, or race fuel.
Fuel Injector Clinic's 1440cc/min High-Z injector uses stainless alloy valve construction for broad fuel compatibility, including pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Each six-injector set is precisely matched using FIC's proprietary Data Match Technology, with every injector individually serial numbered and its results supplied on a detailed Data Match Sheet. The injectors are flow tested and rated at 43.5 PSI, or 3 Bar, with fuel temperature at 90 degrees F using CF-16B calibration fluid. This six-cylinder configuration includes PGTUSC6 solder-in pigtails, while optional PADPUtoJ6 plug-and-play adapters provide an installation option without cutting or soldering the factory wiring harness.
Specifications
- Part Number: is135-1440h
- Injector Flow Rate: 1440cc/min
- Quantity: Set of 6 injectors
- Application: 1991 - 1999 Mitsubishi 3000GT
- Injector Type: Saturated / High Impedance
- Injector Design: Ball and seat
- Valve Construction: Stainless alloy
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Injector Identification: Individually serial numbered
- Injector Data: Data Match Sheet with flow matching and latency information
- Test Pressure: 43.5 PSI / 3 Bar
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included Pigtails: PGTUSC6
- Optional Plug-and-Play Adapters: PADPUtoJ6
- Wiring Requirement: Injector plug conversion required when using the included pigtails
- Seals: Includes O-rings required for the listed factory application
- Injector Condition: Brand-new, unused injectors
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 1440cc/min High-Z fuel injectors for 1991 - 1999 Mitsubishi 3000GT applications
- High-flow performance positioned between FIC's 1200cc and 1650cc injector options
- Substantial fuel capacity for serious high-horsepower 3000GT builds
- Saturated, high-impedance ball and seat injector design
- Excellent idle performance for a high-flow performance injector
- Excellent linearity for consistent and predictable fuel delivery
- Superior short pulse width control and repeatability for precise low-load fueling
- Stainless alloy valve construction provides broad performance-fuel compatibility
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Proprietary Data Match Technology precisely matches all six injectors within the set
- Each injector is individually serial numbered for identification and matching data
- Detailed Data Match Sheet supplies flow matching and latency information for accurate ECU calibration
- Flow tested and rated at 43.5 PSI / 3 Bar and 90 degrees F using CF-16B calibration fluid
- Includes PGTUSC6 solder-in pigtails for injector plug conversion
- Optional PADPUtoJ6 plug-and-play adapters eliminate the need to cut or solder the factory wiring harness
- Includes O-rings required for the listed factory application
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Backed by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Serious Fuel Capacity with Street-Friendly Control
High-flow injectors need to do more than deliver additional fuel at wide-open throttle. The ECU must also be able to accurately meter fuel during idle, cruising, and part-throttle operation, where injector pulse widths become much shorter. FIC's 1440cc High-Z injectors combine substantial flow capability with excellent idle performance and superior short pulse width control, giving tuners a predictable foundation for calibration across a broad operating range.
FIC's Data Match Technology further improves consistency by precisely matching all six injectors and supplying detailed flow and latency information for tuning. Stainless alloy valve construction provides excellent fuel versatility for builds using pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Part number is135-1440h includes PGTUSC6 solder-in pigtails for the required injector connector conversion. Optional PADPUtoJ6 plug-and-play adapters allow the injectors to connect without cutting or soldering the factory wiring harness. If your 3000GT uses an aftermarket fuel rail or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to confirm proper fitment.
Fitment
- 1991 Mitsubishi 3000GT
- 1992 Mitsubishi 3000GT
- 1993 Mitsubishi 3000GT
- 1994 Mitsubishi 3000GT
- 1995 Mitsubishi 3000GT
- 1996 Mitsubishi 3000GT
- 1997 Mitsubishi 3000GT
- 1998 Mitsubishi 3000GT
- 1999 Mitsubishi 3000GT
FAQs
Can Fuel Injector Clinic is135-1440h injectors be used with E85 and race fuels?
Yes. The FIC 1440cc High-Z injector uses stainless alloy valve construction and is compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. This broad compatibility makes the is135-1440h a versatile option for high-output Mitsubishi 3000GT builds using a variety of performance fuels.
Does the FIC is135-1440h injector set require wiring modifications?
Yes, when using the included PGTUSC6 pigtails, the existing injector connectors on the vehicle wiring harness must be replaced. Optional PADPUtoJ6 plug-and-play adapters can be selected instead, allowing the injectors to connect without cutting or soldering the factory wiring harness.
Order Your Fuel Injector Clinic Injectors from Beefcake Racing
Beefcake Racing is your source for Fuel Injector Clinic injectors and supporting performance fuel-system components for Mitsubishi 3000GT builds. Whether your combination runs pump gasoline, E85, or race fuel, proper injector sizing and calibration are critical to achieving the fuel delivery, performance, and drivability your build demands.
Have questions about injector sizing, fuel compatibility, wiring, or fitment? Contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
