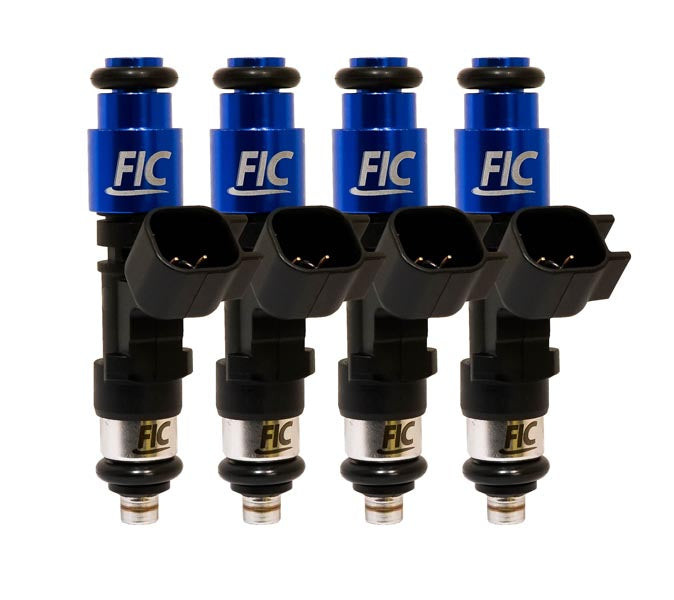

Fuel Injector Clinic 775cc Fuel Injector Set - High Z (is123-0775h) - 1995 - 1999 Mitsubishi DSM 420a
Step up the fuel delivery capability of your 1995 - 1999 Mitsubishi DSM 420a with the Fuel Injector Clinic 775cc High-Z Fuel Injector Set. Part number is123-0775h includes four modified saturated, high-impedance ball and seat injectors engineered to deliver substantial fuel capacity while retaining the precise control needed for a responsive, properly tuned performance build. Excellent linearity, short pulse width repeatability, and FIC's advanced matching technology make these 775cc injectors a strong choice for modified and higher-output 420a combinations where consistent fuel delivery and drivability matter.
Fuel Injector Clinic precisely matches each four-injector set using its proprietary Data Match Technology. Every injector is individually serial numbered, with detailed flow matching and latency information supplied on the included Data Match Sheet. The injectors are flow tested and rated at 43.5 PSI, or 3 Bar, with fuel temperature at 90 degrees F using CF-16B calibration fluid. PGTUSC4 solder-in pigtails are included for the required injector connector conversion, or optional PADPUtoJ4 plug-and-play adapters can be selected to connect the injectors without cutting or soldering the vehicle wiring harness.
Specifications
- Part Number: is123-0775h
- Injector Flow Rate: 775cc/min
- Quantity: Set of 4 injectors
- Application: 1995 - 1999 Mitsubishi DSM 420a
- Injector Type: Modified Saturated / High Impedance
- Injector Design: Ball and seat
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Injector Identification: Individually serial numbered
- Injector Data: Data Match Sheet with flow matching and latency information
- Test Pressure: 43.5 PSI / 3 Bar
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included Pigtails: PGTUSC4
- Optional Plug-and-Play Adapters: PADPUtoJ4
- Wiring Requirement: Injector plug conversion required when using the included pigtails
- Seals: Includes O-rings required for the listed factory application
- Injector Condition: Brand-new, unused injectors
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four 775cc/min High-Z fuel injectors engineered for Mitsubishi DSM 420a applications
- Modified saturated, high-impedance ball and seat injector construction
- Substantial fuel-flow capacity for modified and higher-output 420a builds
- Excellent linearity for consistent and predictable fuel delivery
- Superior short pulse width control and repeatability for precise low-load fueling
- Proprietary Data Match Technology precisely matches all four injectors within the set
- Each injector is individually serial numbered for identification and matching data
- Detailed Data Match Sheet provides flow matching and latency information for accurate ECU calibration
- Flow tested and rated at 43.5 PSI / 3 Bar and 90 degrees F using CF-16B calibration fluid
- Includes PGTUSC4 solder-in pigtails for injector connector conversion
- Optional PADPUtoJ4 plug-and-play adapters eliminate the need to cut or solder the vehicle wiring harness
- Tight manufacturing tolerances and advanced matching help provide predictable tuning and excellent drivability
- Includes O-rings required for the listed factory application
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Backed by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
High-Flow Performance with Precise Fuel Control
A 775cc injector provides significantly increased fuel capacity for a performance 420a build, but maximum flow is only one part of a properly engineered injector. During idle, cruising, and part-throttle operation, the ECU must accurately control much shorter injector pulse widths. FIC's 775cc High-Z injectors combine increased flow capability with excellent linearity, superior short pulse width control, and precise Data Match Technology to give tuners a predictable foundation for calibration across the operating range.
Part number is123-0775h requires a different injector connector than the factory harness. The included PGTUSC4 solder-in pigtails can be used to replace the existing injector connectors, while optional PADPUtoJ4 plug-and-play adapters provide an alternative installation method without cutting or soldering the vehicle wiring harness. FIC uses brand-new, unused injectors for its performance applications rather than remanufactured or core-program injectors. If your DSM 420a uses an aftermarket fuel rail or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to confirm proper fitment.
Fitment
- 1995 Mitsubishi DSM 420a applications
- 1996 Mitsubishi DSM 420a applications
- 1997 Mitsubishi DSM 420a applications
- 1998 Mitsubishi DSM 420a applications
- 1999 Mitsubishi DSM 420a applications
FAQs
Does the Fuel Injector Clinic is123-0775h require an injector connector conversion?
Yes. The is123-0775h includes PGTUSC4 solder-in pigtails that can be used to replace the existing injector connectors on the vehicle wiring harness. Optional PADPUtoJ4 plug-and-play adapters can be selected instead, allowing the injectors to connect without cutting or soldering the factory wiring harness.
How are the FIC is123-0775h 775cc injectors matched and tested?
Fuel Injector Clinic precisely matches the four injectors using its proprietary Data Match Technology. Each injector is individually serial numbered, with flow matching and latency information supplied on the included Data Match Sheet. The injectors are flow tested and rated at 43.5 PSI, or 3 Bar, with fuel temperature at 90 degrees F using CF-16B calibration fluid.
Order Your Fuel Injector Clinic Injectors from Beefcake Racing
Beefcake Racing is your source for Fuel Injector Clinic injectors and supporting performance fuel-system components for Mitsubishi DSM builds. Whether you are upgrading a modified street car or building a higher-output 420a combination, proper injector sizing, installation, and calibration are critical to achieving the fuel delivery, performance, and drivability your setup demands.
Have questions about injector sizing, wiring, installation, or fitment? Contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
