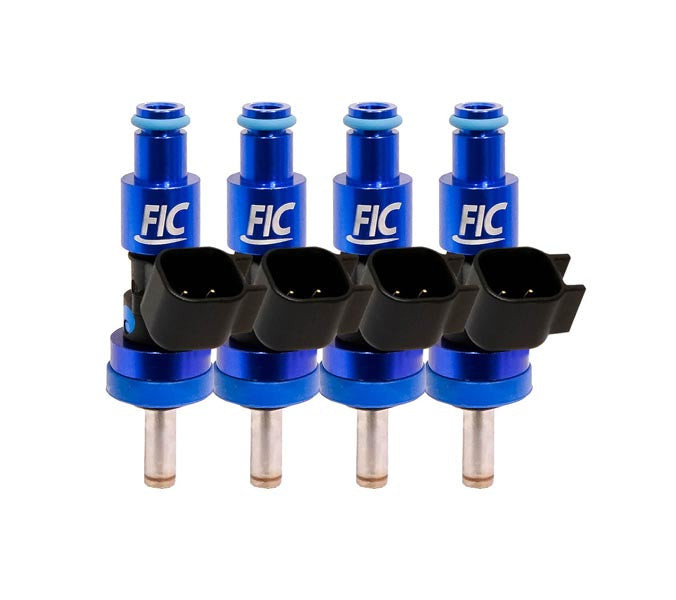

Fuel Injector Clinic 1440cc High-Z Fuel Injector Set (is117-1440h) - 2000-2005 Honda S2000
Give your 2000-2005 Honda S2000 AP1 the fuel capacity needed for serious horsepower without giving up the drivability that matters on the street. The Fuel Injector Clinic is117-1440h includes four 1440cc/min saturated, high-impedance ball-and-seat injectors engineered to deliver substantial fuel flow along with excellent idle quality and precise low-pulse-width control. Positioned between FIC's 1200cc and 1650cc offerings, the 1440cc set is an excellent choice for high-output S2000 builds running gasoline, E85, or compatible race fuels.
Stainless alloy valve construction gives these 1440cc injectors broad fuel compatibility, including pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Fuel Injector Clinic uses proprietary Data Match Technology to precisely match the set, with each injector individually serial numbered and its results documented on the included Data Match Sheet. The injectors are flow tested and rated at 43.5 PSI (3 Bar) with CF-16B calibration fluid maintained at 90 degrees F, providing tuners with consistent, dependable injector performance.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is117-1440h
- Application: 2000-2005 Honda S2000 AP1
- Injector Quantity: 4
- Flow Rating: 1440cc/min
- Injector Type: Ball-and-seat
- Impedance: High impedance / High-Z
- Operation: Saturated
- Valve Construction: Stainless alloy
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Matching: Fuel Injector Clinic Data Match Technology
- Testing Pressure: 43.5 PSI (3 Bar)
- Testing Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included Pigtails: PGTUSC4
- Optional Plug-and-Play Adapters: PADPUtoH4
- O-Rings: Included for the intended factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four 1440cc/min performance fuel injectors for the 2000-2005 Honda S2000 AP1
- High-impedance saturated design for performance applications
- Ball-and-seat injector construction
- Excellent idle performance for street-driven high-horsepower S2000 builds
- High fuel-flow capacity for demanding naturally aspirated, supercharged, and turbocharged combinations
- Excellent performance with both gasoline and E85
- Stainless alloy valve construction provides broad fuel compatibility
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Proprietary Data Match Technology provides precise injector-to-injector matching
- Each injector is individually serial numbered
- Data Match Sheet provides detailed flow matching and latency information
- Superior short pulse width control supports accurate tuning and excellent drivability
- Flow tested and rated at 43.5 PSI (3 Bar)
- Tested using CF-16B calibration fluid maintained at 90 degrees F
- Includes PGTUSC4 solder-in pigtails
- Optional PADPUtoH4 plug-and-play adapters allow connection without cutting or soldering the factory harness
- Includes the O-rings required for the intended factory application
- Built using brand-new injectors rather than remanufactured or core-program injectors
- Covered by Fuel Injector Clinic's lifetime warranty against failures caused by original manufacturing defects
Fitment
- 2000 Honda S2000 AP1
- 2001 Honda S2000 AP1
- 2002 Honda S2000 AP1
- 2003 Honda S2000 AP1
- 2004 Honda S2000 AP1
- 2005 Honda S2000 AP1
The is117-1440h injector set can be ordered with PGTUSC4 solder-in pigtails or optional PADPUtoH4 plug-and-play adapters for connection to the stock harness without cutting or soldering. Fuel Injector Clinic supplies the O-rings required for the intended factory application. If your S2000 uses an aftermarket fuel rail or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
FAQs
Are the Fuel Injector Clinic is117-1440h injectors compatible with E85 and race fuel?
Yes. The 1440cc high-impedance injectors use stainless alloy valve construction and are compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. This makes them a versatile option for powerful street, track, and competition S2000 combinations using a variety of fuels.
Can 1440cc injectors still provide good street drivability in an S2000?
Yes. Fuel Injector Clinic specifically designed its 1440cc high-impedance injector to combine substantial fuel capacity with excellent idle performance. Data Match Technology and strong short pulse width control help the ECU precisely control fuel delivery during idle and part-throttle operation when properly calibrated.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
A high-horsepower S2000 needs more than an injector with a big flow number. Proper injector sizing, fuel compatibility, electrical connections, fuel-system capacity, and tuning all matter. Beefcake Racing can help you determine whether the Fuel Injector Clinic is117-1440h is the right injector for your S2000 build and make sure you order the appropriate connection option. For fitment, fuel-system, or ordering assistance, email sales@beefcakeracing.com or call 1-855-827-7223.
