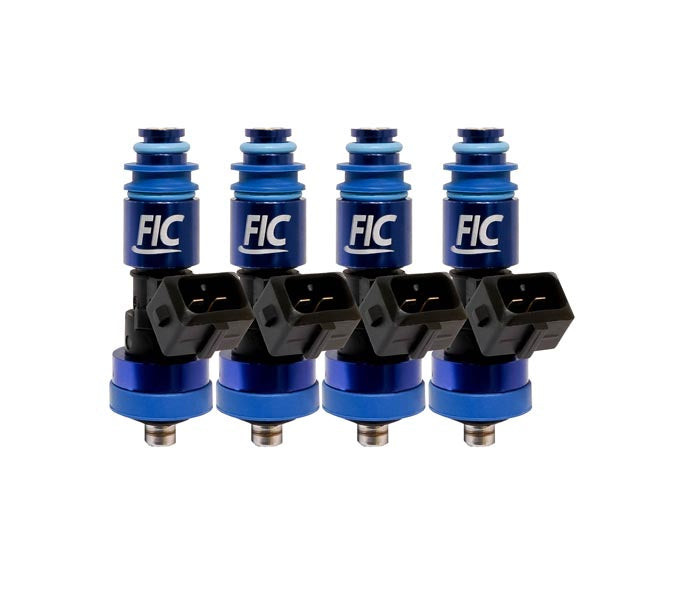

Fuel Injector Clinic 1650cc High-Z Fuel Injector Set (is115-1650h) - Honda B / H / D Series Except D17
Feed your high-horsepower Honda build with the serious fuel capacity and precise control of the Fuel Injector Clinic 1650cc High-Z Fuel Injector Set. Part number is115-1650h includes four 1650cc/min saturated, high-impedance ball-and-seat injectors designed for Honda B Series, H Series, and D Series engines except the D17. Built for demanding street and race combinations, these injectors deliver the fuel volume required for high-output gasoline and E85 setups while retaining excellent idle performance and short pulse width control for a properly tuned street-driven car.
The 1650cc injector uses a stainless alloy valve construction that provides broad fuel compatibility, including pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Each is115-1650h set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Every injector is individually serial numbered, with its results documented on the supplied Data Match Sheet to provide detailed flow-matching and latency information for accurate calibration. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) using CF-16B calibration fluid maintained at 90 degrees F.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is115-1650h
- Application: Honda B Series, H Series, and D Series engines except D17
- Injector Quantity: 4
- Flow Rating: 1650cc/min
- Injector Type: Ball-and-seat
- Impedance: High impedance / High-Z
- Operation: Saturated
- Valve Construction: Stainless alloy
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Testing Pressure: 43.5 PSI (3 Bar)
- Testing Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- OBD1 Connection: Plug-and-play fit
- Pigtails: PGTJETR4Q
- Optional OBD2 Plug-and-Play Adaptors: PADPJtoH4
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four 1650cc/min high-performance fuel injectors
- Designed for Honda B Series, H Series, and D Series engines except D17
- Saturated, high-impedance ball-and-seat injector design
- Excellent idle performance for street-driven high-horsepower combinations
- Substantial fuel capacity for high-output gasoline and E85 applications
- Stainless alloy valve construction provides broad fuel compatibility
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Fuel Injector Clinic Data Match Technology provides precise injector-set matching
- Each injector is individually serial numbered
- Data Match Sheet provides detailed flow-matching and latency information
- Superior short pulse width control supports precise fueling at idle and part throttle
- State-of-the-art matching helps simplify accurate tuning and maintain excellent drivability
- Flow tested at 43.5 PSI and 90 degrees F using CF-16B calibration fluid
- Includes the O-rings required for the intended application
- Plug-and-play fit for the intended OBD1 configuration
- PGTJETR4Q pigtail option included with the manufacturer configuration
- Optional PADPJtoH4 plug-and-play adaptors available for compatible OBD2 harnesses
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Backed by Fuel Injector Clinic's lifetime warranty against failures caused by original manufacturing defects
Fitment
- Honda B Series engines
- Honda H Series engines
- Honda D Series engines, except D17
Fitment is based on the engine and fuel system configuration rather than a specific vehicle year and model. This injector set does not fit Honda D17 applications. Connector requirements vary between OBD1 and OBD2 configurations. If your combination uses an aftermarket fuel rail, modified intake, engine swap, or another unusual fuel system configuration, contact Beefcake Racing before ordering to verify proper injector fitment and electrical connection.
FAQs
What fuels are compatible with Fuel Injector Clinic is115-1650h injectors?
The stainless alloy valve construction gives the is115-1650h broad fuel compatibility. Fuel Injector Clinic specifies compatibility with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels, making the 1650cc injector suitable for a wide range of serious street and race fuel systems.
Why choose the 1650cc FIC injector for a high-horsepower Honda build?
The is115-1650h combines substantial fuel capacity with excellent idle performance, superior short pulse width control, and precise Data Match Technology matching. That combination makes it well suited to high-output gasoline and E85 builds that require considerably more fuel without giving up the low-pulse-width control needed for accurate tuning and street drivability.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
High-horsepower Honda builds demand a fuel system that works as a complete package. Injector capacity, fuel choice, fuel pressure, fuel rails, electrical connections, and calibration all need to be matched correctly. Beefcake Racing can help you determine whether the Fuel Injector Clinic is115-1650h is the right choice for your B Series, H Series, or D Series performance combination. For fitment, fuel system, connector, or ordering assistance, email sales@beefcakeracing.com or call 1-855-827-7223.
