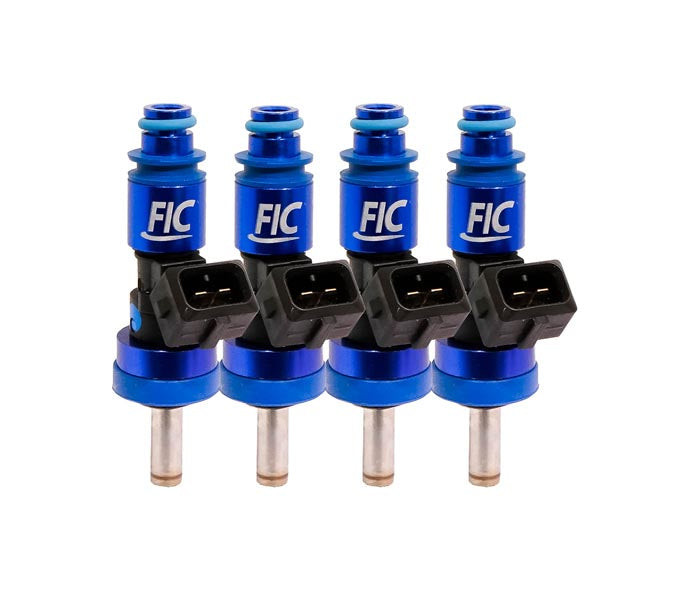

Fuel Injector Clinic 1200cc High-Z Fuel Injector Set (is115-1200h) - Honda B / H / D Series Except D17
Step up the fuel capacity of your Honda B, H, or D Series performance build with the Fuel Injector Clinic 1200cc High-Z Fuel Injector Set. Part number is115-1200h includes four 1200cc/min saturated, high-impedance ball-and-seat injectors designed for Honda B Series, H Series, and D Series engines except the D17. Previously offered as is115-1100h, this updated 1200cc injector set delivers the fuel capacity needed for serious performance combinations while maintaining the precise low-pulse-width control and drivability that matter during idle, cruising, and part-throttle operation.
Each is115-1200h set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Every injector is individually serial numbered, with the results documented on the supplied Data Match Sheet to provide detailed flow-matching and latency information for accurate calibration. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) using CF-16B calibration fluid maintained at 90 degrees F. Superior short pulse width control and state-of-the-art matching help make these injectors easy to tune while providing the consistency demanded by high-performance Honda applications.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is115-1200h
- Previous Part Number: is115-1100h
- Application: Honda B Series, H Series, and D Series engines except D17
- Injector Quantity: 4
- Flow Rating: 1200cc/min
- Injector Type: Ball-and-seat
- Impedance: High impedance / High-Z
- Operation: Saturated
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Testing Pressure: 43.5 PSI (3 Bar)
- Testing Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- OBD1 Connection: Direct connection to stock OBD1 harness
- Pigtail Option: PGTJETR4Q
- OBD2 Plug-and-Play Adaptor: PADPJtoH4
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four 1200cc/min high-performance fuel injectors
- Designed for Honda B Series, H Series, and D Series engines except D17
- Previously offered under part number is115-1100h
- Saturated, high-impedance ball-and-seat injector design
- Fuel Injector Clinic Data Match Technology provides precise injector-set matching
- Each injector is individually serial numbered
- Data Match Sheet provides detailed flow-matching and latency information
- Superior short pulse width control supports precise fueling at low injector pulse widths
- State-of-the-art matching helps simplify accurate calibration
- Strong injector control helps maintain excellent idle and part-throttle drivability
- Flow tested at 43.5 PSI and 90 degrees F using CF-16B calibration fluid
- Includes the O-rings required for the intended application
- Direct plug-and-play connection available for the stock OBD1 harness
- PGTJETR4Q solder-in pigtail option available for connector conversion
- Optional PADPJtoH4 plug-and-play adaptors available for the stock OBD2 harness
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Backed by Fuel Injector Clinic's lifetime warranty against failures caused by original manufacturing defects
Fitment
- Honda B Series engines
- Honda H Series engines
- Honda D Series engines, except D17
Fitment is based on the engine and fuel system configuration rather than a specific vehicle year and model. This injector set does not fit Honda D17 applications. Connector requirements vary between OBD1 and OBD2 configurations. If your combination uses an aftermarket fuel rail, modified intake, engine swap, or another unusual fuel system configuration, contact Beefcake Racing before ordering to verify proper injector fitment and electrical connection.
FAQs
Is the Fuel Injector Clinic is115-1200h the same injector set previously sold as is115-1100h?
Yes. Fuel Injector Clinic identifies is115-1200h as the current 1200cc injector set that was previously offered as is115-1100h. The current part number and 1200cc rating should be used when selecting or identifying this injector set.
Are the is115-1200h injectors plug-and-play with Honda OBD1 and OBD2 wiring?
For the intended OBD1 application, Fuel Injector Clinic offers a direct connection to the stock OBD1 harness. For compatible OBD2 applications, optional PADPJtoH4 plug-and-play adaptors connect the injectors to the stock OBD2 harness without requiring the factory harness to be cut or soldered. PGTJETR4Q solder-in pigtails are also available when a connector conversion is required.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
A 1200cc injector belongs in a serious Honda fuel system, and choosing the correct injector, connector configuration, and supporting components is essential to getting the combination right. Beefcake Racing can help you determine whether the Fuel Injector Clinic is115-1200h is the right choice for your B Series, H Series, or D Series performance build. For fitment, connector, fuel system, or ordering assistance, email sales@beefcakeracing.com or call 1-855-827-7223.
