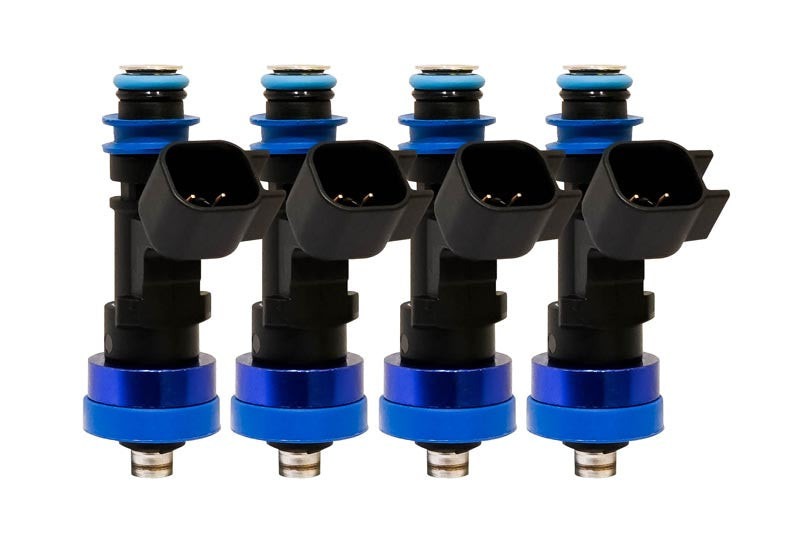

Fuel Injector Clinic 525cc High-Z Fuel Injector Set (is115-0525h) - Honda B / H / D Series Except D17
Upgrade the fuel system on your Honda B, H, or D Series build with the precision and consistency of the Fuel Injector Clinic 525cc High-Z Fuel Injector Set. Part number is115-0525h includes four 525cc/min saturated, high-impedance ball-and-seat injectors engineered for Honda B Series, H Series, and D Series applications except the D17. Modern injector technology delivers excellent linearity and short pulse width repeatability, giving performance Honda combinations increased fuel capacity while maintaining the precise control needed for smooth idle, responsive part-throttle operation, and strong drivability.
Fuel Injector Clinic precisely flow matches each is115-0525h injector set to within 1 percent. Every injector is individually numbered, and the results for each injector are documented on the detailed flow sheet supplied with the set. FIC flow tests and rates its high-performance injectors at 43.5 PSI (3 Bar) using CF-16B calibration fluid maintained at 90 degrees F. Superior short pulse width control and tight manufacturing tolerances give tuners a consistent foundation for accurate calibration while helping deliver predictable performance throughout the operating range.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is115-0525h
- Application: Honda B Series, H Series, and D Series engines except D17
- Injector Quantity: 4
- Flow Rating: 525cc/min
- Injector Type: Ball-and-seat
- Impedance: High impedance / High-Z
- Operation: Saturated
- Flow Matching: Precisely flow matched to within 1 percent
- Testing Pressure: 43.5 PSI (3 Bar)
- Testing Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included Pigtails: PGTUSC4
- Optional OBD1 Plug-and-Play Adaptors: PADPUtoJ4
- Optional OBD2 Plug-and-Play Adaptors: PADPUtoH4
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four 525cc/min high-performance fuel injectors
- Designed for Honda B Series, H Series, and D Series engines except D17
- Saturated, high-impedance ball-and-seat injector design
- Modern injector technology provides excellent linearity
- Strong short pulse width repeatability supports consistent fuel control
- Precisely flow matched to within 1 percent
- Each injector is individually numbered
- Detailed flow sheet documents the results for each injector in the matched set
- Superior short pulse width control helps support smooth idle and part-throttle operation
- Tight manufacturing tolerances help simplify accurate tuning and promote strong drivability
- Flow tested at 43.5 PSI and 90 degrees F using CF-16B calibration fluid
- Includes the O-rings required for the intended application
- Includes PGTUSC4 solder-in pigtails for injector connector conversion
- Optional PADPUtoJ4 plug-and-play adaptors available for compatible OBD1 harnesses
- Optional PADPUtoH4 plug-and-play adaptors available for compatible OBD2 harnesses
- Uses brand-new, unused injectors rather than remanufactured or core-program injectors
- Backed by Fuel Injector Clinic's lifetime warranty against failures caused by original manufacturing defects
Fitment
- Honda B Series engines
- Honda H Series engines
- Honda D Series engines, except D17
Fitment is based on the engine and fuel system configuration rather than a specific vehicle year and model. This injector set does not fit Honda D17 applications. If your combination uses aftermarket fuel rails, a modified intake, or another unusual fuel system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
FAQs
What applications does the Fuel Injector Clinic is115-0525h injector set fit?
Part number is115-0525h is designed for Honda B Series, H Series, and D Series engine applications, excluding the D17. Because modified Honda builds can use different fuel rails, intake configurations, and wiring setups, verify fitment before ordering if your fuel system differs from the intended application.
Do the is115-0525h injectors require a wiring connector change?
Yes. The set includes PGTUSC4 solder-in pigtails that can be used to replace the existing injector connectors. For compatible applications, optional PADPUtoJ4 plug-and-play adaptors are available for OBD1 harnesses and PADPUtoH4 adaptors are available for OBD2 harnesses, allowing the connector conversion without cutting or soldering the factory harness.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Getting the right injectors for a Honda performance build means matching flow capacity, engine application, fuel system hardware, wiring, and tuning requirements. Beefcake Racing can help you determine whether the Fuel Injector Clinic is115-0525h is the right choice for your B Series, H Series, or D Series combination. For fitment, connector, or ordering assistance, email sales@beefcakeracing.com or call 1-855-827-7223.
