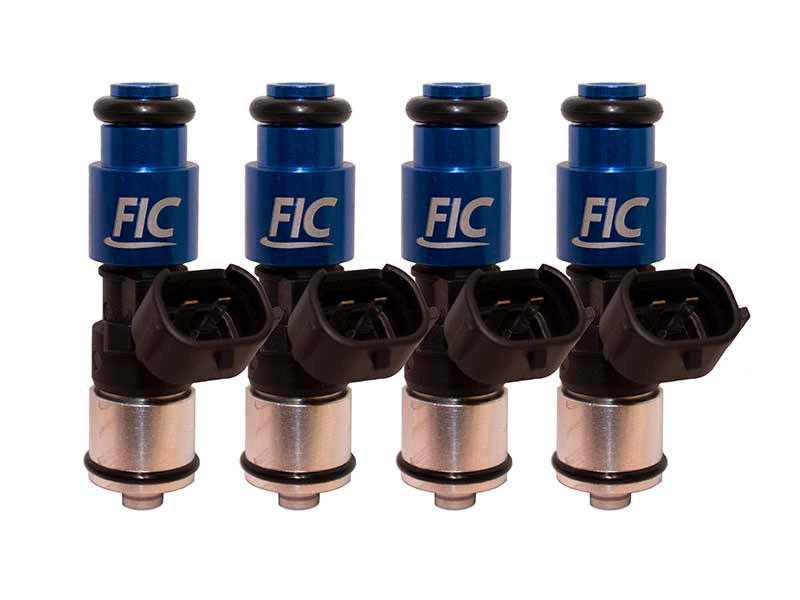

Fuel Injector Clinic 2150cc High-Z Fuel Injector Set (is114-2150h) - 2012-2015 Honda Civic Si K24
When a high-horsepower K24 build demands serious fuel volume without giving up precise low-pulse-width control, the Fuel Injector Clinic 2150cc High-Z Fuel Injector Set delivers. Part number is114-2150h includes four 2150cc/min saturated, high-impedance ball-and-seat injectors for the 2012-2015 Honda Civic Si K24. Despite their massive flow capacity, these injectors are engineered to provide the controlled response needed at idle and part throttle, making them a strong solution for properly tuned, high-output applications requiring substantially more fuel than smaller injector combinations can supply.
Because controlling an injector this large requires more than simply matching static flow rates, Fuel Injector Clinic uses its proprietary Data Match Technology for dynamic flow matching. This significantly improves the ECU's ability to control the injectors in the sub-2ms pulse width range commonly encountered during idle and part-throttle operation. Each injector is individually serial numbered, and detailed flow-matching and latency results are supplied on the included Data Match Sheet. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) using CF-16B calibration fluid maintained at 90 degrees F.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is114-2150h
- Application: 2012-2015 Honda Civic Si K24
- Injector Quantity: 4
- Flow Rating: 2150cc/min
- Injector Type: Ball-and-seat
- Impedance: High impedance / High-Z
- Operation: Saturated
- Injector Matching: Fuel Injector Clinic Data Match Technology dynamic flow matching
- Testing Pressure: 43.5 PSI (3 Bar)
- Testing Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included Pigtails: PGTDEN4
- O-Rings: Included for the intended application
- Fuel Restriction: Do not use with VP Q16, VP Import, or other MTBE oxygenated fuels
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four massive 2150cc/min high-performance fuel injectors
- Application-specific injector set for the 2012-2015 Honda Civic Si K24
- Saturated, high-impedance ball-and-seat injector design
- Designed for high-output combinations requiring substantial fuel volume
- Fuel Injector Clinic Data Match Technology provides dynamic flow matching
- Dynamic matching improves ECU control in the sub-2ms pulse width range
- Superior short pulse width control supports more manageable idle and part-throttle operation
- Each injector is individually serial numbered
- Included Data Match Sheet provides detailed flow-matching and latency information
- State-of-the-art matching supports consistent fuel delivery across all four cylinders
- Predictable injector operation helps tuners accurately calibrate high-flow fuel systems
- Flow tested and rated at 43.5 PSI and 90 degrees F using CF-16B calibration fluid
- Includes the O-rings required for the intended application
- Includes PGTDEN4 pigtails
- Backed by Fuel Injector Clinic's lifetime warranty against failures caused by original manufacturing defects
Important Fuel Compatibility Information
Do not use these injectors with VP Q16, VP Import, or other MTBE oxygenated fuels. The internal construction of the 2150cc injector contains a seal that can swell when exposed to MTBE. This swelling can significantly reduce injector flow and makes the injector unsuitable for MTBE oxygenated fuels. Alcohol-based fuels such as E85 can also create potential corrosion concerns during prolonged periods of disuse, so Fuel Injector Clinic's care and storage instructions should be followed.
Fitment
- 2012 Honda Civic Si K24
- 2013 Honda Civic Si K24
- 2014 Honda Civic Si K24
- 2015 Honda Civic Si K24
If your Civic Si uses an engine swap, aftermarket fuel rail, modified intake, or another unusual fuel system configuration, contact Beefcake Racing before ordering to verify proper injector fitment and fuel system compatibility.
FAQs
Can Fuel Injector Clinic is114-2150h injectors be used with Q16 or other MTBE oxygenated race fuels?
No. These 2150cc injectors must not be used with VP Q16, VP Import, or other MTBE oxygenated fuels. MTBE can cause an internal seal to swell, significantly reducing injector flow. Following Fuel Injector Clinic's fuel compatibility and care instructions is especially important with this injector.
How can a 2150cc injector still provide good low-speed control?
Fuel Injector Clinic uses Data Match Technology dynamic flow matching specifically to improve control of these extremely high-flow injectors at short pulse widths. This significantly improves the ECU's ability to control the injectors in the sub-2ms range commonly encountered during idle and part-throttle operation, helping a properly calibrated high-horsepower combination retain strong drivability.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
A 2150cc injector belongs in a serious fuel system, and choosing the correct injectors is only one part of building the combination properly. Fuel choice, fuel pressure, pump capacity, supporting hardware, injector fitment, and calibration all need to work together. Beefcake Racing can help you determine whether the Fuel Injector Clinic is114-2150h is right for your K24 build. For fitment, fuel system, or ordering assistance, email sales@beefcakeracing.com or call 1-855-827-7223.
