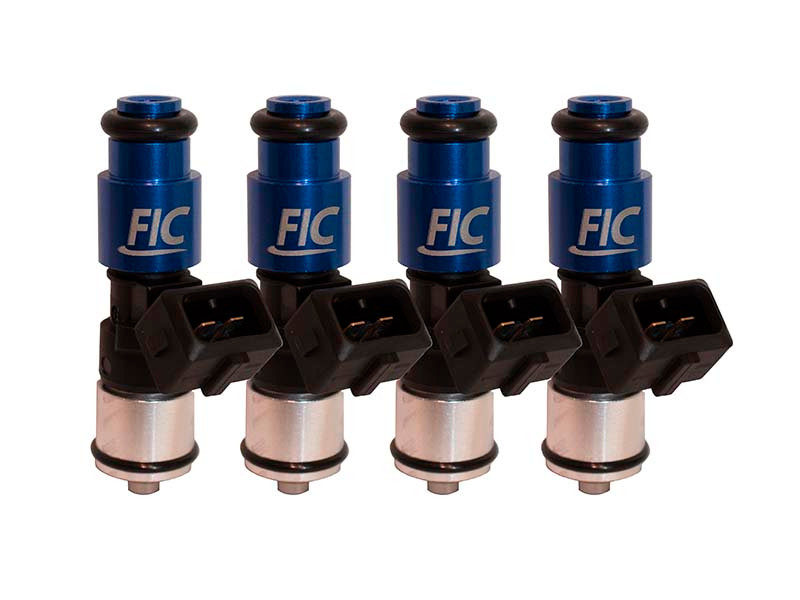

Fuel Injector Clinic 1650cc High-Z Fuel Injector Set (is114-1650h) - 2012-2015 Honda Civic Si K24
Step up the fueling capability of your 2012-2015 Honda Civic Si K24 with the Fuel Injector Clinic 1650cc High-Z Fuel Injector Set. Part number is114-1650h includes four 1650cc/min saturated, high-impedance ball-and-seat injectors designed to support serious horsepower while maintaining the precise low-pulse-width control needed for excellent street manners. For boosted, E85, gasoline, or race-fuel K24 combinations that demand substantially more fuel without turning drivability into an afterthought, FIC's 1650cc injectors deliver the high-flow capability and controllability tuners need.
The 1650cc injector features stainless alloy valve construction that allows compatibility with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Each is114-1650h set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Every injector is individually serial numbered, and detailed flow-matching and latency results are supplied on the included Data Match Sheet. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) using CF-16B calibration fluid maintained at 90 degrees F. Superior short pulse width control and state-of-the-art matching help provide predictable fueling from idle and part throttle through demanding high-load operation.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is114-1650h
- Application: 2012-2015 Honda Civic Si K24
- Injector Quantity: 4
- Flow Rating: 1650cc/min
- Injector Type: Ball-and-seat
- Impedance: High impedance / High-Z
- Operation: Saturated
- Valve Construction: Stainless alloy
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Testing Pressure: 43.5 PSI (3 Bar)
- Testing Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included Pigtails: PGTJETR4Q
- O-Rings: Included for the intended application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Four 1650cc/min high-performance fuel injectors
- Application-specific injector set for the 2012-2015 Honda Civic Si K24
- Saturated, high-impedance ball-and-seat injector design
- High fuel-flow capability for demanding high-horsepower K24 combinations
- Excellent idle performance for properly tuned street-driven applications
- Superior short pulse width control for precise low-load fueling
- Stainless alloy valve construction provides broad fuel compatibility
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Fuel Injector Clinic Data Match Technology provides precise injector-set matching
- Each injector is individually serial numbered
- Included Data Match Sheet provides detailed flow-matching and latency information
- State-of-the-art matching promotes consistent fuel delivery across all four cylinders
- Predictable injector operation supports accurate tuning and excellent drivability
- Flow tested and rated at 43.5 PSI and 90 degrees F using CF-16B calibration fluid
- Includes the O-rings required for the intended application
- Includes PGTJETR4Q pigtails
- Backed by Fuel Injector Clinic's lifetime warranty against failures caused by original manufacturing defects
Fitment
- 2012 Honda Civic Si K24
- 2013 Honda Civic Si K24
- 2014 Honda Civic Si K24
- 2015 Honda Civic Si K24
If your Civic Si uses an engine swap, aftermarket fuel rail, modified intake, or another unusual fuel system configuration, contact Beefcake Racing before ordering to verify proper injector fitment and fuel system compatibility.
FAQs
What fuels can Fuel Injector Clinic is114-1650h injectors be used with?
The 1650cc injector uses stainless alloy valve construction and is compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. This broad fuel compatibility makes the is114-1650h a versatile high-flow injector option for street, competition, and high-horsepower K24 combinations.
Can a 1650cc injector still provide good street drivability?
Yes, when properly sized and calibrated for the combination. Fuel Injector Clinic designed its 1650cc High-Z injector to provide excellent idle performance while still supplying the fuel volume required for substantially higher horsepower. Superior short pulse width control and Data Match Technology help give the ECU and tuner predictable injector behavior at idle, part throttle, and higher loads.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
A high-output K24 fuel system needs more than a large injector. Injector capacity, fuel choice, fuel pressure, pump capacity, supporting hardware, and calibration all need to work together. Beefcake Racing can help you determine whether the Fuel Injector Clinic is114-1650h is the right injector set for your 2012-2015 Civic Si build. For fitment, fuel system, or ordering assistance, email sales@beefcakeracing.com or call 1-855-827-7223.
